Product overview
Genuine OEM Audi Front Brake Pipe, part number 4G1614705AF. This critical component is responsible for delivering hydraulic fluid from the master cylinder to the front brake calipers, enabling the braking system to function effectively. It is designed for Left Hand Drive (LHD) vehicle configurations. Weighing 0.283 kg, this genuine OEM brake pipe is manufactured from high-strength materials to withstand extreme hydraulic pressures and ensure a leak-free, reliable connection, which is paramount for vehicle safety.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 50.5 × 41 × 10 cm
- Shipping weight
- 0.28 kg
Parts diagram & fitment

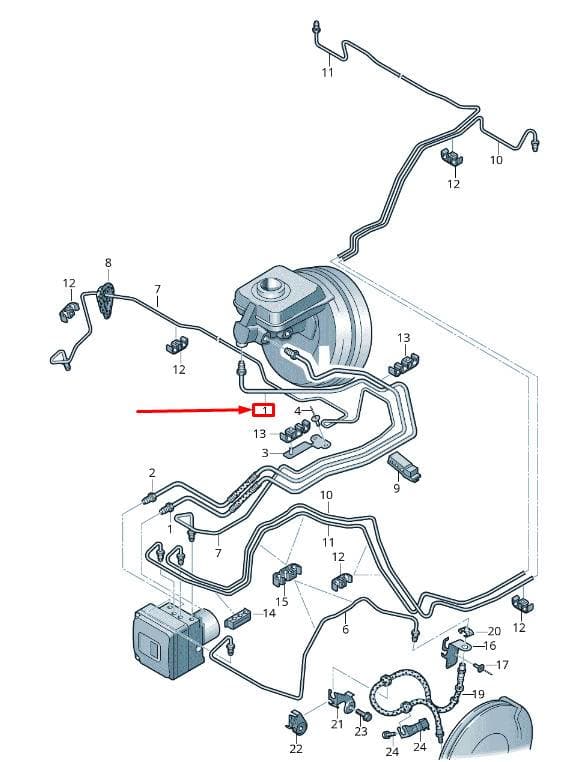

5 vehiclesBrake Pipe — locate 4G1614705AF Audi Front Brake Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(48)
- 1Brake PipeLeft4G1614705AD
- 1Brake PipeLeft4G1614705S
- 1Brake PipeRight4G2614705AA
- 1Brake PipeRight4G2614705AF
- 1Brake PipeRight4G2614705AH
- 1Brake PipeRight4G2614705D
- 1Brake PipeLeft4G1614705E
- 2Brake PipeLeft4G1614706AD
- 2Brake PipeLeft4G1614706AF
- 2Brake PipeLeft4G1614706S
- 2Brake PipeRight4G2614706AA
- 2Brake PipeRight4G2614706AF
- 2Brake PipeRight4G2614706AH
- 2Brake PipeRight4G2614706D
- 2Brake PipeLeft4G1614706E
- 3Retainer 4G0614709H
- 3Retainer 4G0614709B
- 4Pop Rivet N91152701
- 6Brake Pipe 4G0614723AC
- 6Brake Pipe 4G0614723Q
- 6Brake Pipe 4G0614723S
- 6Brake Pipe 4G0614723H
- 7Part 4G0614724AB
- 7Part 4G0614724AD
- 7Part 4G0614724L
- 7Part 4G0614724K
- 7Part 4G0614724S
- 8Grommet 8K0614769B
- 9Grommet 4G0614769A
- 10Brake Pipe 4G0614725M
- 10Brake Pipe 4G0614725P
- 10Brake Pipe 4G0614725S
- 10Brake Pipe 4G0614725F
- 11Part 4G0614726AA
- 11Part 4G0614726Q
- 11Part 4G0614726S
- 11Part 4G0614726H
- 12Clip 8K0611797D
- 13Bracket 4G0611797
- 13Bracket 1J0611797J
- 14Bracket 6N0611797D
- 15Bracket 4E0611797
- 15Retainer 8K0611797E
- 16RetainerLeft4G0611845N
- 16RetainerRight4G0611846M
- 16RetainerRight4G0611846N
- 16RetainerLeft4G0611845M
- 17Pop Rivet N90286604
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
4G1614705AF Audi Front Brake Pipe | Genuine OEM is fitted on: Audi A6 Av. qu. 3.0 2012-2018; Audi RS6 Avant 2013-2018; Audi RS7 Sportback 2013-2018; Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018.
