Target · Diagram
Find this reference above

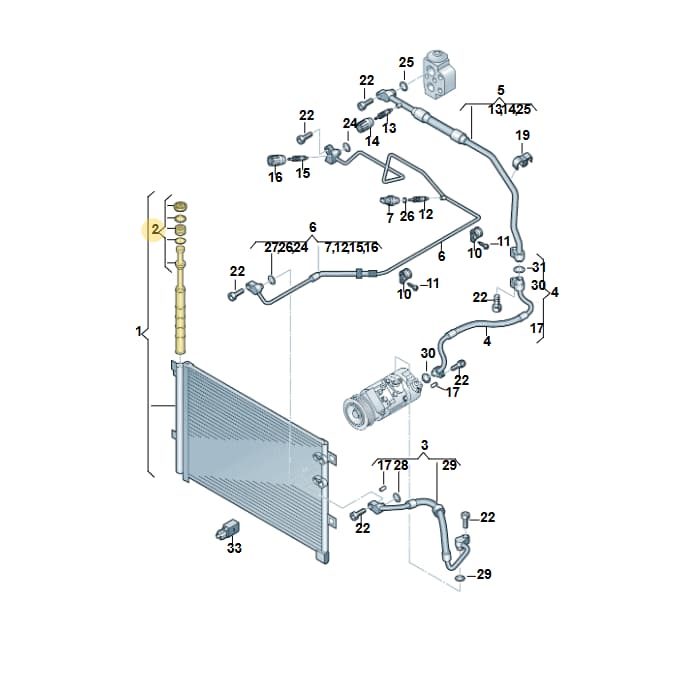

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Air Conditioning Dryer Insert, part number 4H0298403. This insert contains desiccant material that absorbs moisture from the refrigerant, preventing the formation of ice and corrosive acids within the air conditioning system. It is typically housed within the receiver dryer or accumulator of the A/C circuit. Weighing 0.099 kg, this cylindrical insert measures approximately 40 cm in length. Using a genuine OEM dryer insert ensures the correct desiccant type and capacity, vital for maintaining A/C system efficiency and preventing costly component damage.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 87089997
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 40 × 6 × 1.5 cm
- Shipping weight
- 0.1 kg
Parts diagram & fitment
10 vehiclesDryer Insert With Attachment Parts — locate 4H0298403 Audi A/C Dryer Insert | Moisture Removal in the official exploded view and explore the surrounding assembly.
Parts in this assembly(30)
- 1Part 7E1820741B
- 1Pipe 7E1820741C
- 2Part 7H1820743AA
- 2Hose 7H1820743AB
- 2Hose 7H1820743T
- 3Clip 7E0820775
- 4APop Rivet N90437401
- 5Clip 7H0820775A
- 6Bolt N10704501
- 7Part N90252104
- 8Seal Ring 3D0260749C
- 9Seal Ring 8E0260749
- 10Seal Ring 4E0260749B
- 11Seal Ring 7H0820898
- 12Valve 8E0820855
- 13Part 3C0820231
- 15Part 3C0820581
- 16Part 7D0820855
- 17Sensor 1K0959126D
- 21Condenser 7E0820411B
- 22Screw N10414402
- 25Hose 7H0820721AD
- 26Pipe 7H0820744Q
- 27Bracket 7H0820769D
- 27Bracket 7H0820770C
- 28Part 811807577C
- 29Screw N10657201
- 30Clamp N0206474
- 31Seal Ring 4E0260749A
- 32Part N90755702
Diagrams & fitment data powered by oemdiagrams.com
4H0298403 Audi A/C Dryer Insert | Moisture Removal is fitted on: transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; Amarok twin cab 2009-2012; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; Amarok twin cab 2012-2016; Audi A8L qu. 3.0 TDI 2009-2014; Audi A8L qu. 3.0 TDI 2013-2018.
