Target · Diagram
Find this reference above

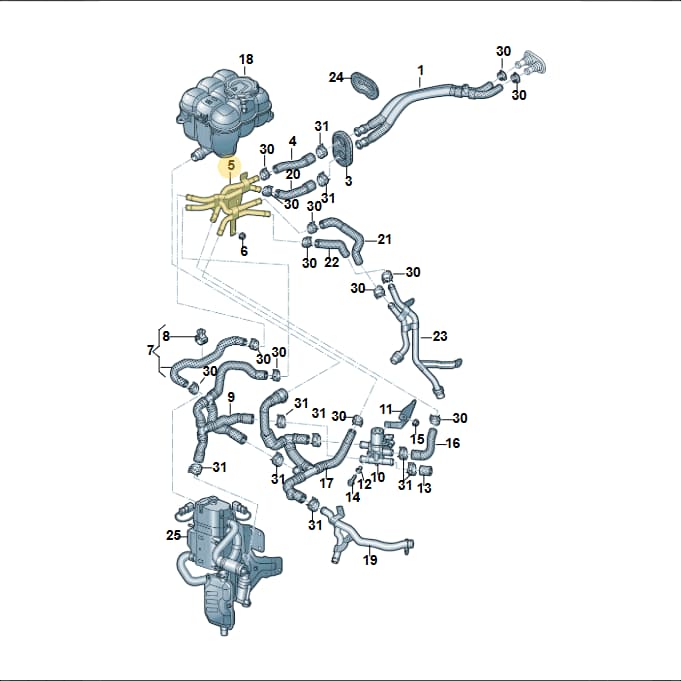

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Engine Coolant Pipe, part number 4M0121485BA. This multi-branched pipe assembly is an integral part of the engine cooling system, responsible for circulating coolant to regulate engine temperature. It connects to the expansion tank and other cooling components, ensuring efficient heat transfer. The pipe weighs 0.258 kg and measures approximately 0.32 meters in length. Opting for a genuine OEM coolant pipe guarantees the correct material composition, precise routing, and leak-free connections, which are vital for preventing overheating and maintaining engine longevity.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 87082990
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 32 × 20 × 7.5 cm
- Shipping weight
- 0.26 kg
Parts diagram & fitment
3 vehiclesCoolant Pipe — locate 4M0121485BA Audi Engine Coolant Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1Hose 4M0819350F
- 1HoseRight4M2819350
- 1Hose 4M8819350A
- 1HoseLeft4M1819350
- 1Hose 4M8819350
- 1Radiator 8W0121251AB
- 2Line 4M0121081BG
- 2Part 4M0121095
- 3Grommet 4M0819345A
- 3Sleeve 7P0121365
- 4Line 4M0121081CT
- 4Hose 4M0265371B
- 4Hose 4M0265374R
- 4Grommet 7P0121276
- 5Rubber Bush 4M0121275A
- 5Water Pipe 4M0819927C
- 6Rubber Bush 4M0121268A
- 6Hose 4M0122101DJ
- 6Collar Nut N01508210
- 7Hose 4M0265315E
- 7Hose 4M0819350AE
- 7Hose 4M0819350J
- 7Bolt 8K0805399B
- 8Hose 4M0122055BL
- 8Hose 4M0122055DF
- 8Hose 4M0122055DG
- 8Part 4D0133335
- 8Hose 4M0122055CH
- 9Hose 4M0265347N
- 10Sensor 079919523H
- 10Container 4M0121403G
- 10Sensor 079919523
- 10Container 4M0121403E
- 10Valve 8E0820036
- 11Part 4M0121321Q
- 11Part 4M0121321K
- 11Bracket 4M0261153D
- 11Bolt N10405604
- 12Retainer 4M0121232E
- 12Hose 4M0819373AL
- 12Sleeve 8E0820607
- 13Rubber Bush 4G0121585A
- 13Hose 4M0122056AC
- 13Grommet 4M0819345B
- 13Part 8J0121324
- 14Valve 5Q0906457K
- 14Screw N10347404
- 15Screw WHT003841
Diagrams & fitment data powered by oemdiagrams.com
4M0121485BA Audi Engine Coolant Pipe | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; Audi Q7 qu. 3.0 TDI 2015-2019; touareg 2017-2023.
