Target · Diagram
Find this reference above

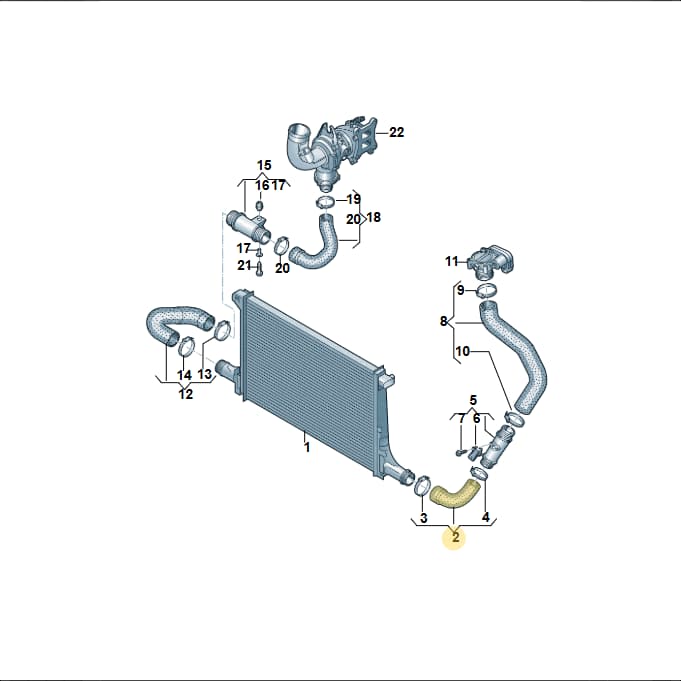

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Intercooler Pressure Hose, part number 4M0145709G. This hose is crucial for transporting pressurized air to or from the intercooler, maintaining efficient turbocharger operation. It is located on the left side of the intercooler assembly. Weighing 0.353 kg, this hose is designed for precise fitment and durability. Choosing a genuine OEM hose ensures correct routing geometry, material resistance to pressure and temperature, and long-term reliability in the demanding turbocharger system.
Technical details
- Category
- Intake & Turbo
- Customs (HS) code
- 40094200
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 23 × 12 × 8.5 cm
- Shipping weight
- 0.35 kg
Parts diagram & fitment
3 vehiclesPressure Hose — locate 4M0145709G Audi Intercooler Pressure Hose | Left Side in the official exploded view and explore the surrounding assembly.
Parts in this assembly(21)
- 1Cooler 4M0145805N
- 3Clamp N10619901
- 4Clamp N10518901
- 5Pipe 4M0145673K
- 5Pipe 4M0145673J
- 6Sensor 06K906051E
- 6Sensor 03G906051M
- 7Bolt N90905903
- 8Hose 4M0145737AL
- 9Clamp N10735201
- 10Clamp N10544401
- 12Hose 4M0145708L
- 15Pipe 4M0145762G
- 15Pipe 4M0145762B
- 16Grommet 4G0129669C
- 17Bush 4G0129734
- 18Hose 4M0145738AQ
- 18Hose 4M0145738R
- 19Clamp N10735601
- 21Screw N91097201
- 22Part N91101001
Compatible / alternative parts(7)
Diagrams & fitment data powered by oemdiagrams.com
4M0145709G Audi Intercooler Pressure Hose | Left Side is fitted on: Audi Q8 Quattro 3,0 2018-; Audi Q7 qu. 3.0 TDI 2015-2019; touareg 2017-2023.
