Target · Diagram
Find this reference above

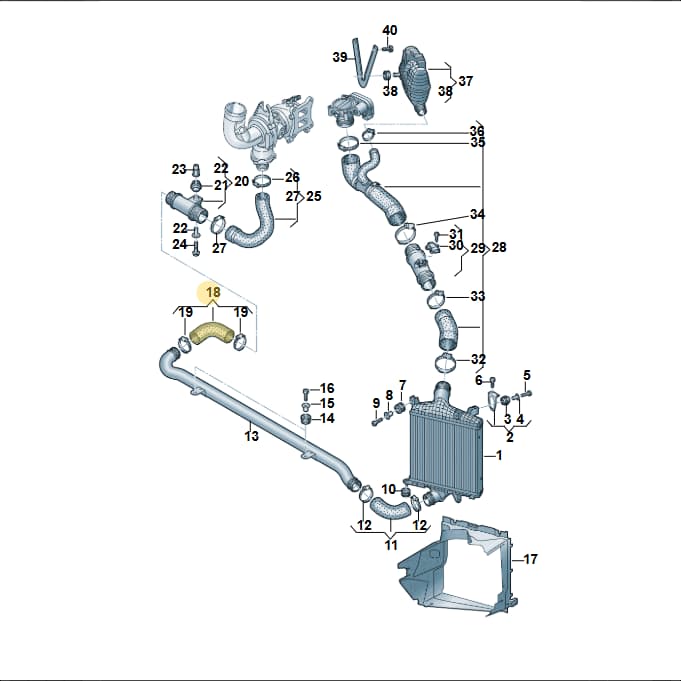

Number 18 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Charge Air Pressure Hose, part number 4M0145709P. This hose is a crucial component in turbocharged engines, designed to transport pressurized air from the turbocharger outlet to the intercooler or intake system. It is located within the engine bay, connecting the turbocharger to the charge air cooling system. Weighing 0.298 kg, this hose measures approximately 21 cm in length. Using a genuine OEM charge air hose ensures it can withstand high pressures and temperatures, preventing boost leaks and maintaining optimal engine performance and efficiency.
Technical details
- Category
- Intake & Turbo
- Customs (HS) code
- 40093100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 21 × 11 × 7.3 cm
- Shipping weight
- 0.3 kg
Parts diagram & fitment
2 vehiclesPressure Hose — locate 4M0145709P Audi Charge Air Pressure Hose | Turbocharger System in the official exploded view and explore the surrounding assembly.
Parts in this assembly(31)
- 1Cooler 4M0145803CA
- 2Bracket 4M0145841
- 3Grommet 4G0129669C
- 4Bush 4G0129734
- 5Screw N91097201
- 6Bolt N91096701
- 7Grommet 050129669C
- 8Bush 4H0145219
- 9Screw N91199401
- 11Hose 4M0145708H
- 12Clamp N10619801
- 13Chargetube 4M0145941G
- 14Grommet 867129669
- 15Bush 8K0129734A
- 16Bolt N91071702
- 17Air Guide 760117333G
- 20Pipe 4M0145762E
- 23Part N91101001
- 25Hose 4M0145738R
- 27Clamp N10518901
- 28Hose 4M0145737AT
- 29Pipe 4M0145673J
- 30Sensor 03G906051M
- 31Bolt N90905903
- 32Clamp N10619901
- 34Clamp N10544401
- 36Clamp N10734601
- 37Damper 4M0129955
- 38Grommet 050129669
- 39Bracket 4M0145879P
- 40Bolt N10471803
Diagrams & fitment data powered by oemdiagrams.com
4M0145709P Audi Charge Air Pressure Hose | Turbocharger System is fitted on: touareg 2017-2023; Audi Q7 qu. 3.0 TDI 2015-2019.
