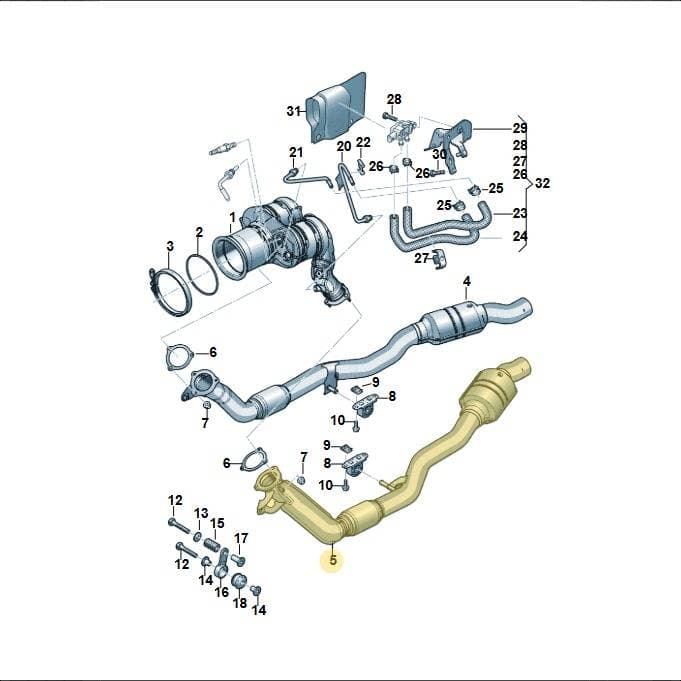

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Exhaust Pipe Assembly, part number 4M0253300AM. This assembly carries exhaust gases from the engine to the rear of the vehicle, including the front silencer and catalytic converter. It is located at position 5 in the diagram. Genuine OEM parts are manufactured to exact specifications for optimal performance and longevity.
Technical details
- Category
- Exhaust
- Customs (HS) code
- 87089235
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 148 × 37 × 15 cm
- Shipping weight
- 5.93 kg
Parts diagram & fitment
3 vehiclesExhaust Pipe With Front Silencer — locate 4M0253300AM Volkswagen Exhaust Pipe Assembly | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(33)
- 1Exh Pipe 4M0254800M
- 1Exh Pipe 4M0254800MX
- 1Exh Pipe 4M0254802C
- 1Exh PipeRight4M0254802CX
- 2Clamp 8W0253725A
- 2Clamp 8W0253725G
- 3Seal 8W0253115G
- 5Pipe 4M0131205AN
- 6Pipe 4M0131205AP
- 7Clip 8E0131545
- 8Retaining 06M131551AE
- 8Retaining 06M131551AK
- 12Clamp N90686704
- 14Bolt N91071702
- 15Bracket 06M103941AB
- 16At Heat Reflective Mat Heat Reflective Mat Heat 06M131531D
- 17Bolt N10335206
- 18Clamp 3C0131483A
- 23Seal 8W0253115J
- 23Seal 8W0253115P
- 25Exh Pipe 4M0253350CE
- 27Collar Nut N91130802
- 28Bracket 4M0253099
- 29Part 4H0821213
- 30Screw N10736701
- 32Screw N10672001
- 34Washer N01167026
- 35Press Spring 893253353
- 36Strap 80A253295
- 36Strap 8K0253295
- 37Bush 4A0253149B
- 38Sleeve 4B0253205C
- 39Pipe 4B0253205D
Diagrams & fitment data powered by oemdiagrams.com
4M0253300AM Volkswagen Exhaust Pipe Assembly | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; Audi Q7 qu. 3.0 TDI 2015-2019; touareg 2017-2023.
