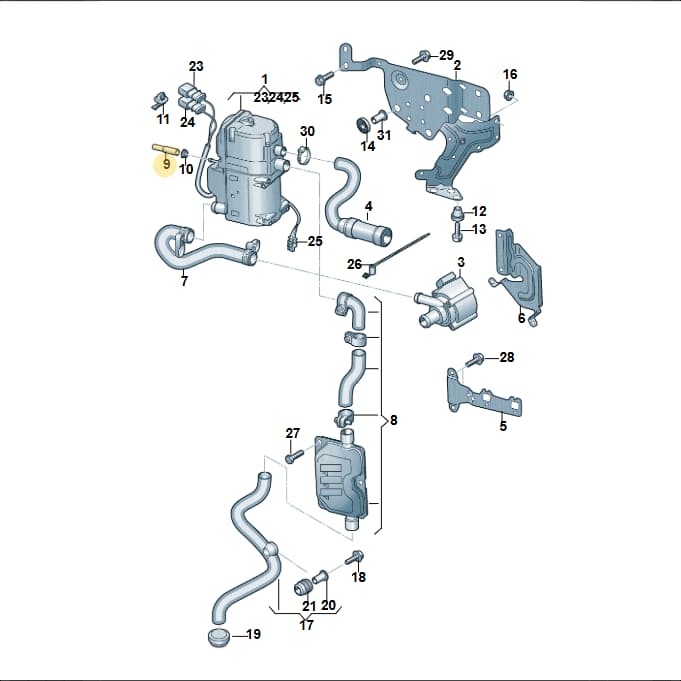

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Fuel Line, part number 4M0261238E. This component is designed to transport fuel from the tank to the engine, ensuring a consistent and reliable fuel supply. It is a small, flexible hose, approximately 0.37 meters in length and weighing 0.024 kg. Using a genuine OEM fuel line ensures proper routing, material compatibility, and resistance to fuel degradation, preventing leaks and maintaining system integrity.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 37 × 13.5 × 5 cm
- Shipping weight
- 0.02 kg
Parts diagram & fitment
4 vehiclesFuel Line — locate 4M0261238E Audi Fuel Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(38)
- 1Heater 4M0265105E
- 1Heater 4M0265105F
- 1Heater 4M0265105G
- 1Heater 4M0265105D
- 2Bracket 4M0265335G
- 3Bolt N90994403
- 4Bolt N0445113
- 5Pump 06H121601P
- 6Exhaust Si 4M0261225A
- 7Bracket 4M0265336J
- 8Collar Nut N10340103
- 9Bracket 4M0265336H
- 10Bolt WHT001692
- 11Hose 4M0265055D
- 12Clamp 4F0422379A
- 13Repair Kit 4M0298193A
- 14Bolt N01021226
- 16Clamp N10231301
- 17Rubber Bush 4G0129234
- 18Screw WHT002306
- 19Grommet 4M0129669
- 20Bush 1K0129734B
- 21Bolt N10607601
- 22Exhaustsyt 4M0261125K
- 23Bush 4H0129381
- 24Grommet 4H0129669J
- 25Bolt N91177601
- 26Grommet 4M0261345
- 27Housing 1J0973833
- 28Housing 3B0973852A
- 29Housing 4H0973703
- 30Bracket 3D0971830F
- 31Cable Tie 8W0820199
- 32Cable Tie N90357101
- 33Clamp N90561801
- 34Valve 8E0820036
- 35Bracket 4M0261153D
- 36Collar Nut N01508210
Diagrams & fitment data powered by oemdiagrams.com
4M0261238E Audi Fuel Line | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; Audi RS Q8 Quattro 2019-; Audi Q7 qu. 3.0 TDI 2015-2019; touareg 2017-2023.
