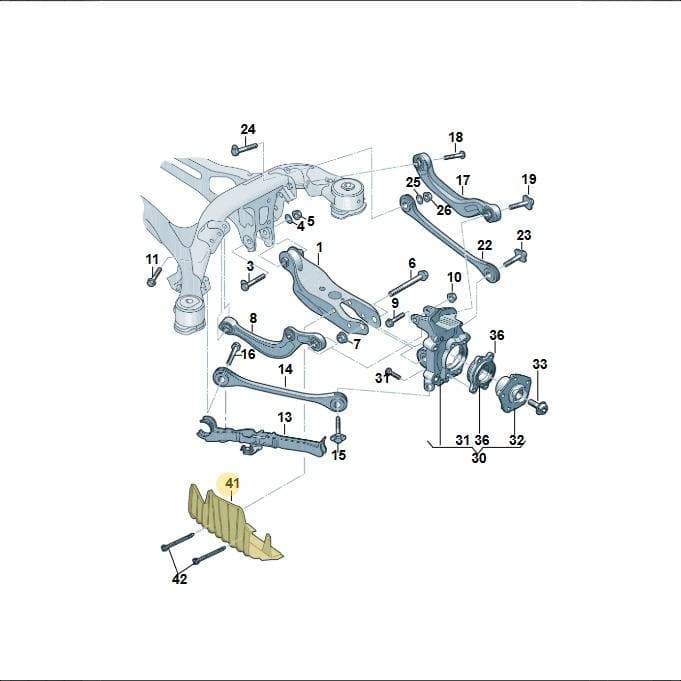

Number 41 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Stone Chip Guard, part number 4M0505416C. Shields vulnerable underbody components from damage caused by stones, gravel, and other road debris. This guard is located in the rear underbody area. Constructed from robust material to offer maximum protection. Genuine OEM stone chip guards provide precise fitment and effective protection for essential underbody parts.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87088099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 48 × 19 × 13.5 cm
- Shipping weight
- 0.35 kg
Parts diagram & fitment
5 vehiclesStone Chip Guard — locate 4M0505416C Volkswagen Stone Chip Guard | Rear Underbody in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(42)
- 1Wishbone 4M0505311J
- 3Bolt WHT008016
- 4Washer WHT007043A
- 5Ut Hexagon Flange Nut Self-locking Hexagon WHT010332
- 6Bolt N91236301
- 8Wishbone 4M0505323G
- 9Screw N91237101
- 10Collar Nut N10106402
- 11Bolt N91228901
- 14WishboneLeft4M0505291F
- 14WishboneLeft4M0505291L
- 14WishboneRight4M0505292F
- 14WishboneRight4M0505292L
- 15Socket WHT007096
- 17WishboneLeft4M0505397P
- 17WishboneLeft4M0505397R
- 17WishboneRight4M0505398P
- 17WishboneRight4M0505398R
- 18Screw N91229001
- 19Screw WHT006496
- 22Track Rod 4M0501529L
- 22Track Rod 4M0501529Q
- 22Track Rod 4M0501530Q
- 24Bolt WHT007090A
- 25Washer WHT007041A
- 26Ut Hexagon Flange Nut Self-locking Hexagon WHT007828
- 29Screw WHT006966
- 32Wheel Hub 4M0501652A
- 33Screw 8E0407643A
- 33Bolt WHT009363A
- 34Wheel Hub 4K0407621B
- 35Part 4M0407625E
- 35Wheel Bear 4M0598625
- 36HousingLeft4M0505431AJ
- 36PartLeft4M0505431AN
- 36HousingRight4M0505432AF
- 36HousingRight4M0505432AJ
- 36PartRight4M0505432AN
- 36HousingLeft4M0505431AF
- 41Stone ChipLeft4M0505415D
- 41DeflectorLeft4M0505415C
- 42Part 4KE512182
Compatible / alternative parts(5)
Diagrams & fitment data powered by oemdiagrams.com
4M0505416C Volkswagen Stone Chip Guard | Rear Underbody is fitted on: Audi Q8 Quattro 3,0 2018-; Audi Q8 e-tron 2018-2020; Audi RS Q8 Quattro 2019-; Audi Q7 qu. 3.0 TDI 2015-2019; touareg 2017-2023.
