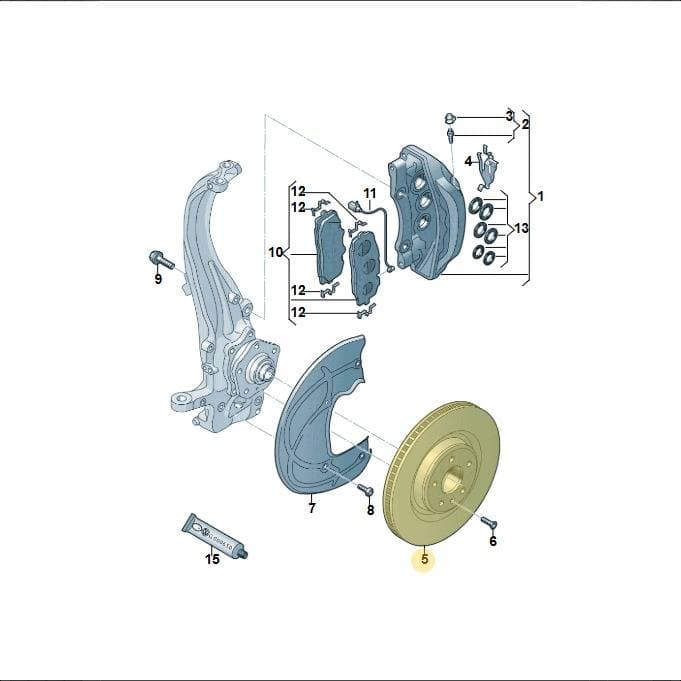

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Vented Brake Disc, part number 4M0615301BM. This disc rotates with the wheel and is gripped by the brake pads to slow the vehicle. It is positioned as item 5 in the brake assembly diagram. This brake disc weighs 17 kg and has a diameter of 0.46 m. Genuine OEM brake discs are critical for ensuring consistent braking performance, proper heat dissipation, and a long service life due to their precise material composition and manufacturing tolerances.
Technical details
- Category
- Brakes
- Country of origin
- Germany
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 46 × 46 × 6 cm
- Shipping weight
- 17 kg
Parts diagram & fitment
3 vehiclesBrake Disc (vented) — locate 4M0615301BM Volkswagen Vented Brake Disc | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(21)
- 1CalliperRight4M0615108BQ
- 1CalliperRight4N0615108AE
- 1CalliperLeft4M0615107BQ
- 1CalliperLeft4N0615107AE
- 2Part 4M0615273A
- 3Part 4M0611483
- 4Spring 4M0615269B
- 5BrakediscLeft4M0615301AP
- 5BrakediscRight4M0615302K
- 6Bolt N10648301
- 7Cov PlateRight4M0615312A
- 7Cov PlateRight4M0615312H
- 7Cov PlateLeft4M0615311A
- 7Cov PlateLeft4M0615311H
- 8Bolt N10741402
- 9Bolt N91147601
- 10Part 4M0698151BB
- 10Part 4M0698151BL
- 11Wire 4M0615121AC
- 12Plate 4N0698231
- 13Gask Set 4M0615507
Compatible / alternative parts(6)
Diagrams & fitment data powered by oemdiagrams.com
4M0615301BM Volkswagen Vented Brake Disc | Genuine OEM is fitted on: touareg 2017-2023; Audi Q8 Quattro 3,0 2018-; Audi Q7 qu. 3.0 TDI 2015-2019.
