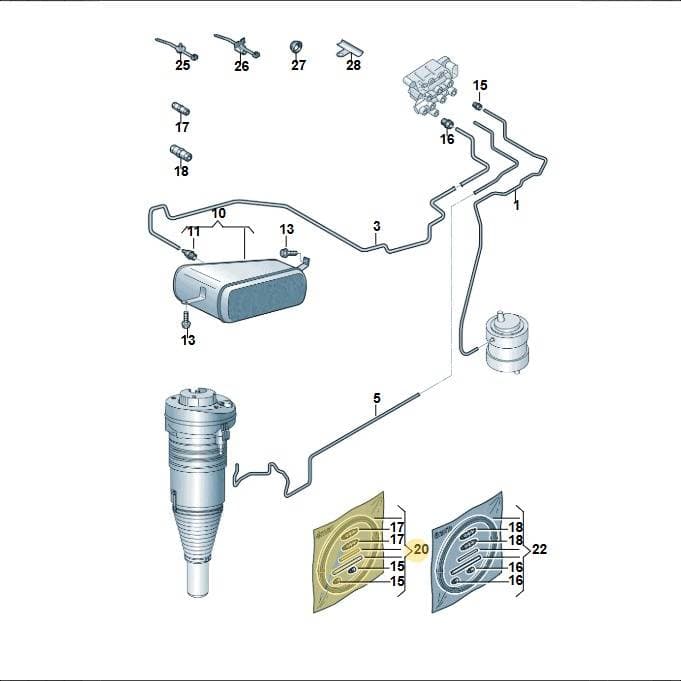

Number 20 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Air Channel Repair Set, part number 4M0698141. This set provides components to repair or maintain the air channel system. It is integral to the air suspension system's functionality. Manufactured to precise OEM standards for optimal performance. Genuine OEM parts guarantee correct fitment and durability for the air channel system.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 35.5 × 35.5 × 2.8 cm
- Shipping weight
- 0.3 kg
Parts diagram & fitment
14 vehiclesRepair Set For Air Channel — locate 4M0698141 Volkswagen Air Channel Repair Set | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(28)
- 1Assembly 4KE616005E
- 2Control Unit 4M0907778
- 3Repair Kit 4K0698999C
- 4Repair Kit 4K0698505
- 5Repair Kit 4H0698649
- 6Rep Set 4K0616703A
- 10Exhaust Si 80A616010
- 11Part N90495301
- 12Hose 4KE616091B
- 13Valve 4KE616013A
- 13Valve Unit 4N0616013A
- 14Screw N10721401
- 15Repair Kit 4K0698030A
- 17Press ResRight4KE616204A
- 17Press ResLeft4KE616203A
- 18Screw N90921801
- 20Connection 7L0616758
- 21Connection 4B0616751
- 23Housing 1J0973752
- 26Insulation 4KE616114D
- 27Ut"hex Nut Self-locking With Washer Hex Nut N90570805
- 28Bolt N91207001
- 41Clamp N90686701
- 56Rep Set 4M0698141A
- 57Part D422S25A2
- 58Cable Tie 4F0971850A
- 58Cable Tie N90937702
- 58Cable Tie 4G0971818
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com

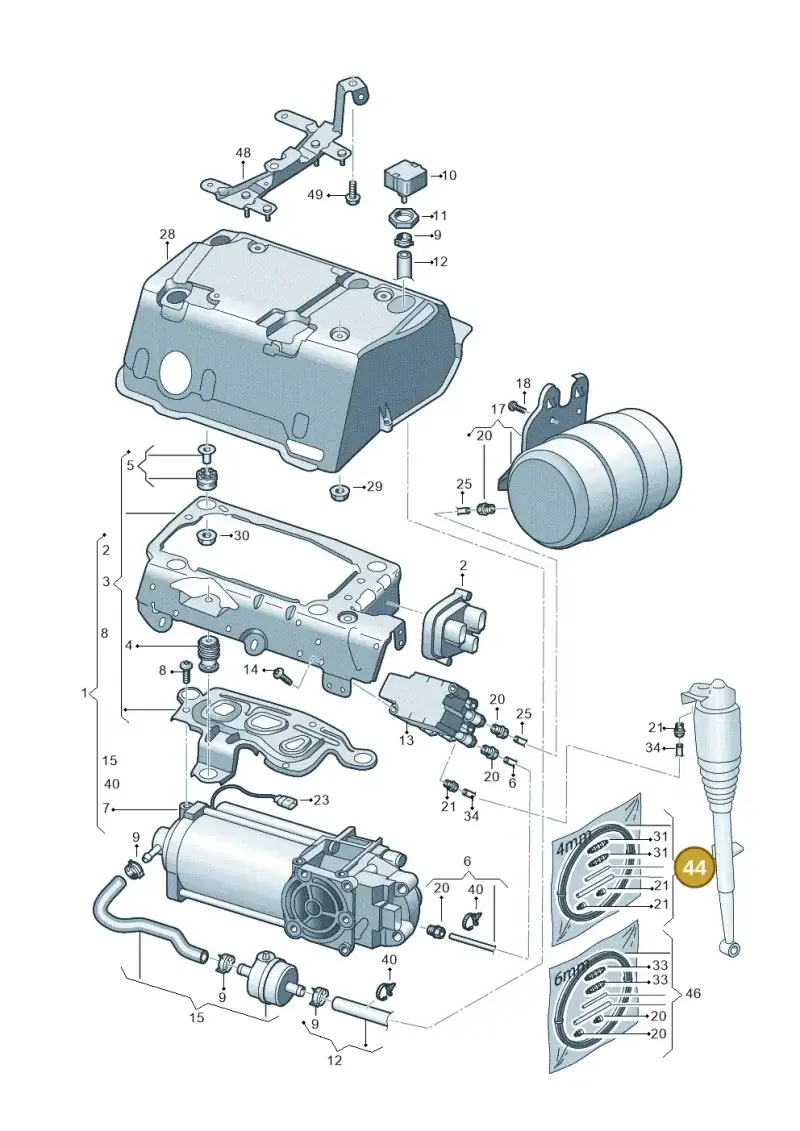

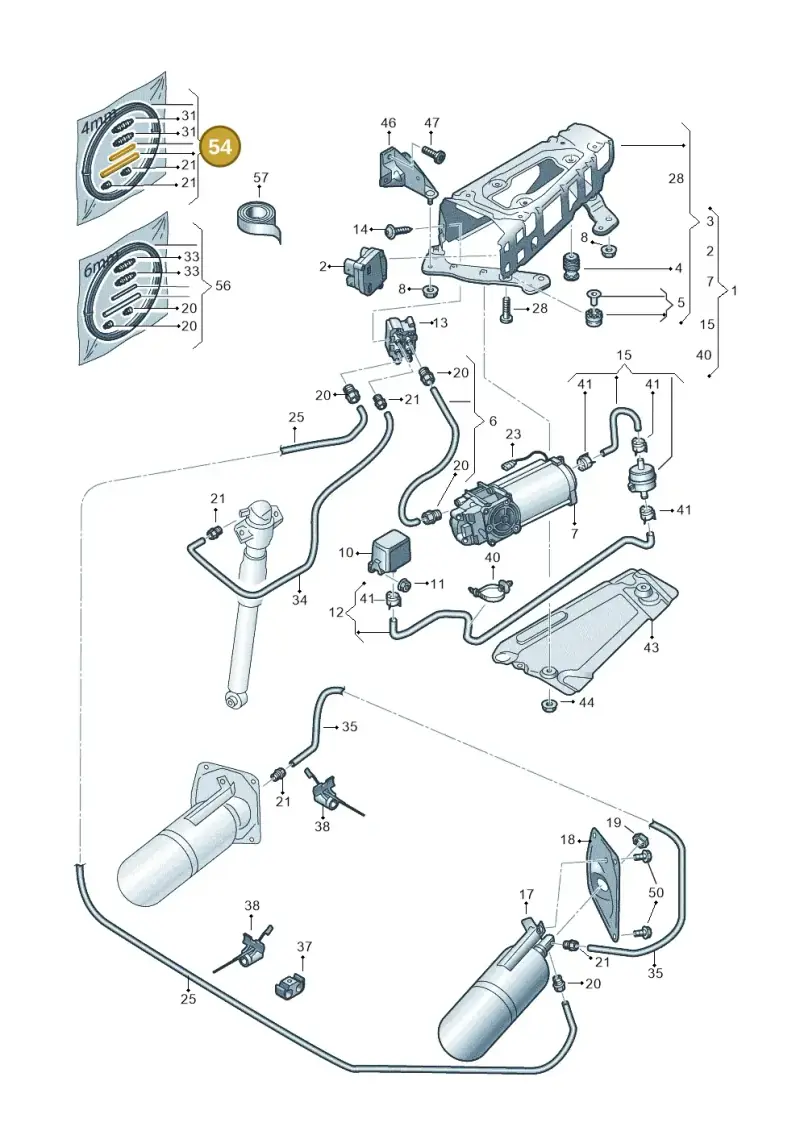

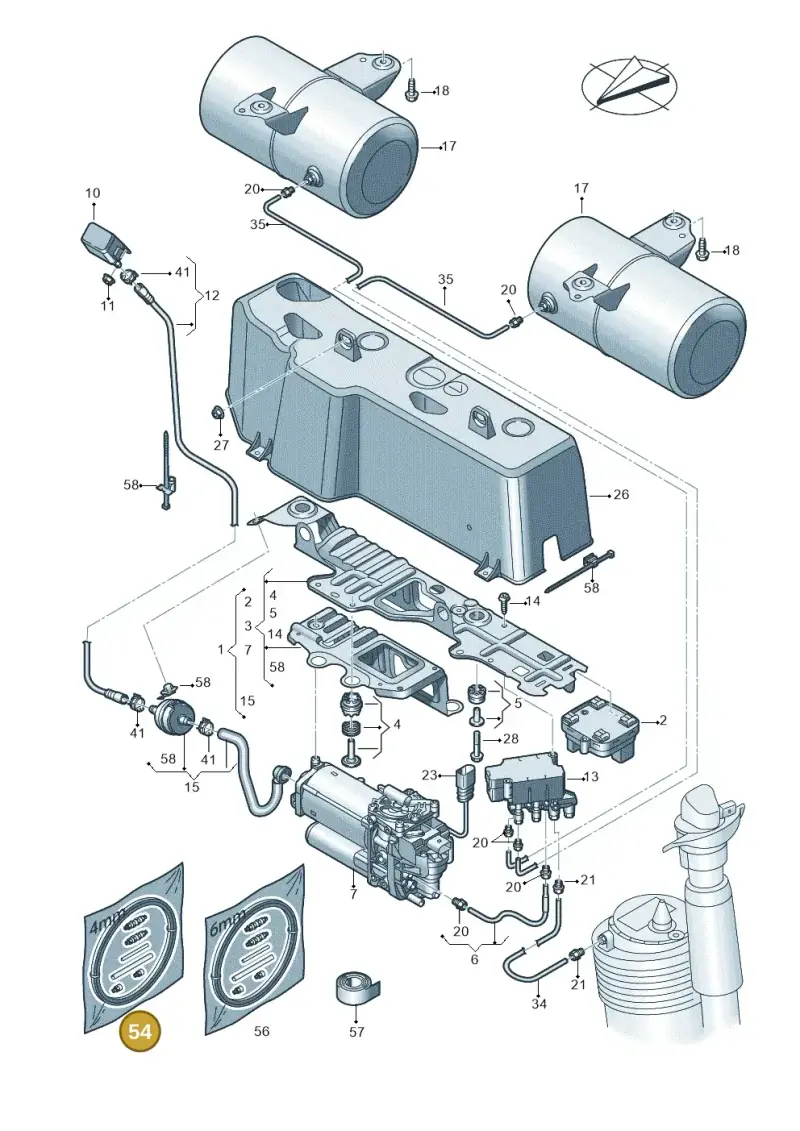

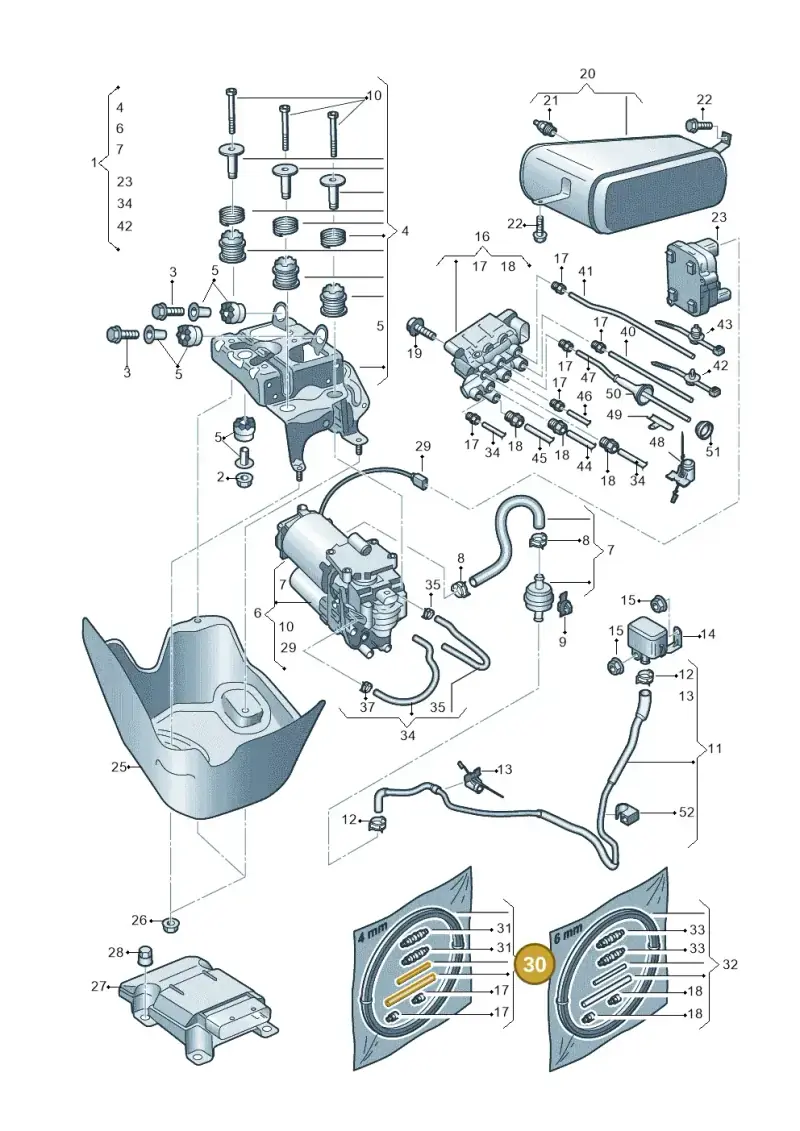

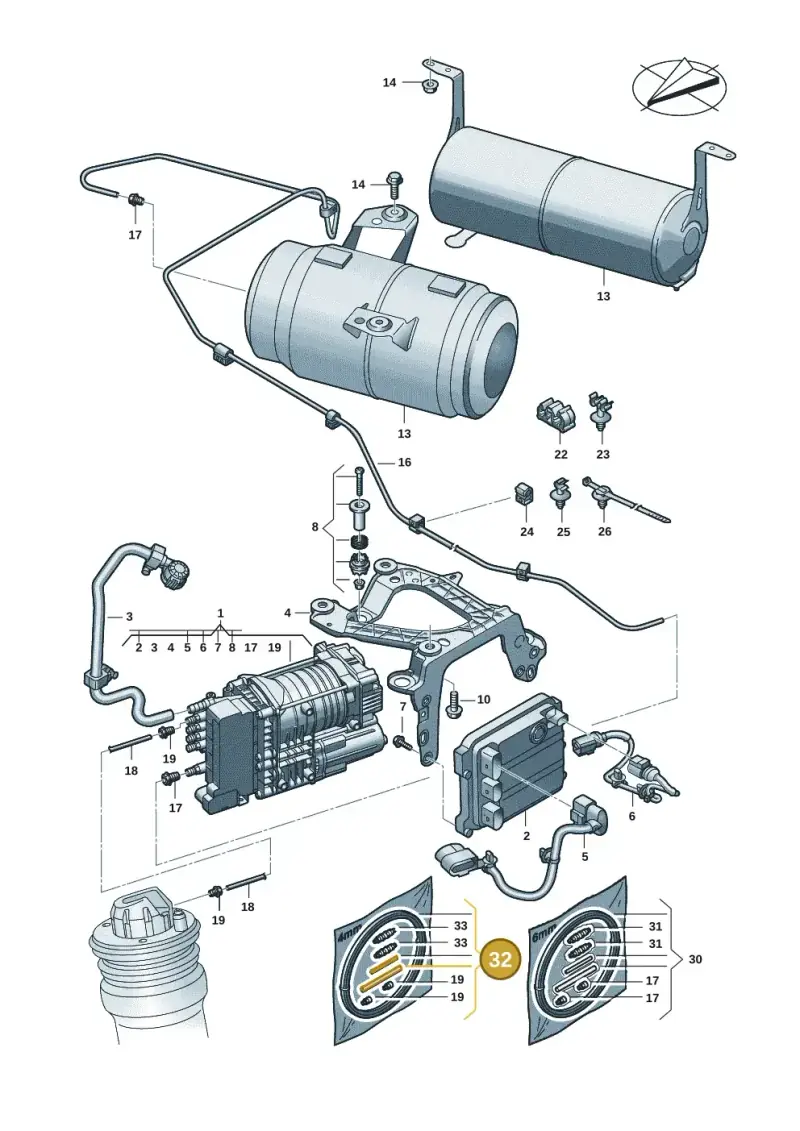

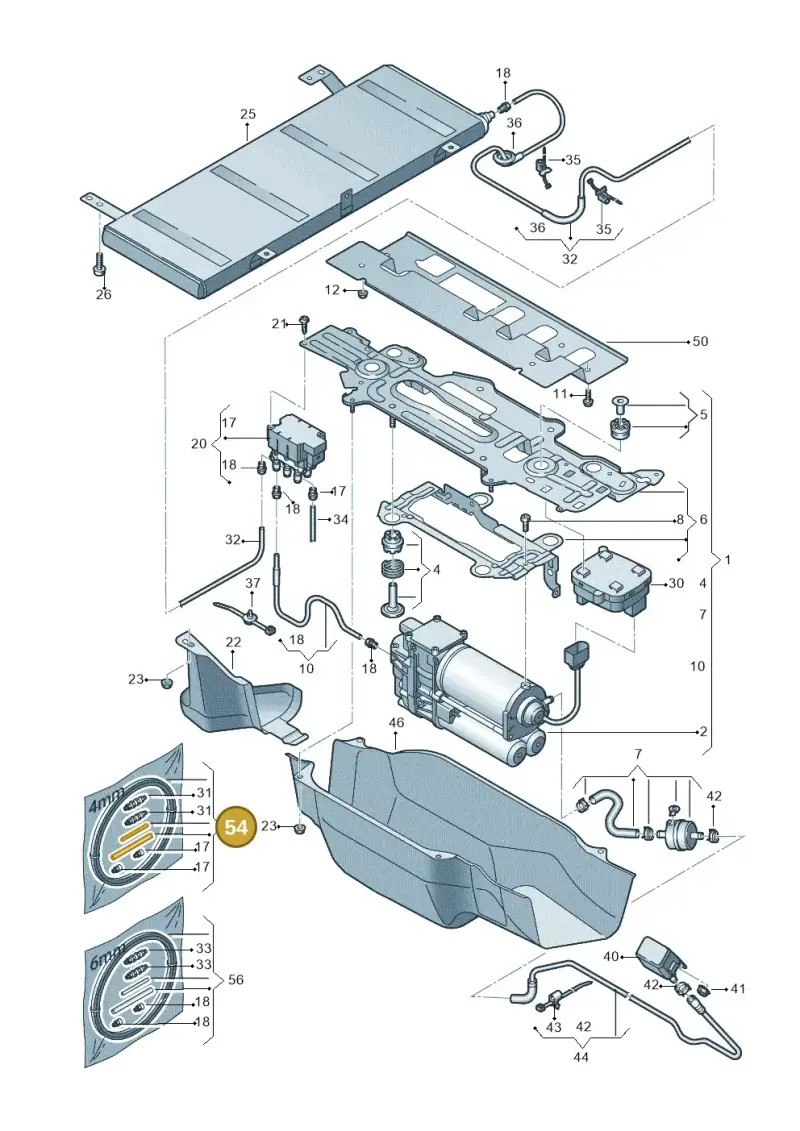

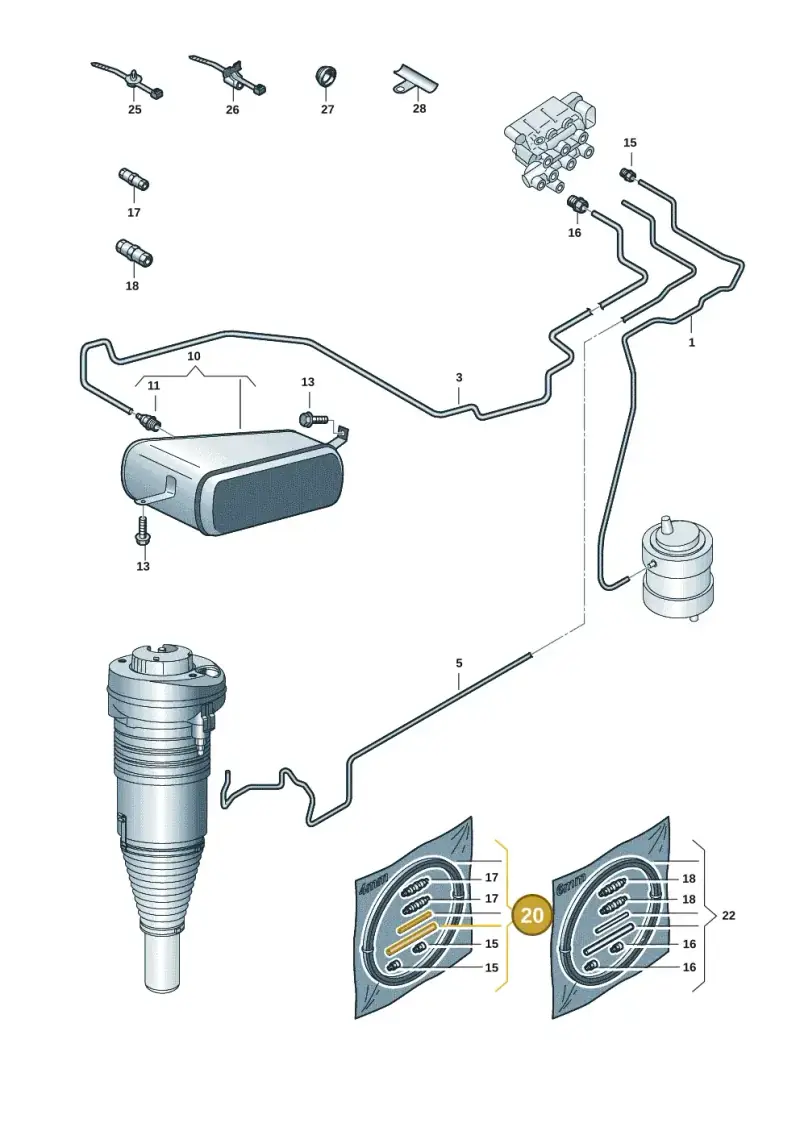

4M0698141 Volkswagen Air Channel Repair Set | Genuine OEM is fitted on: Audi e-tron 2020-2023; Audi Q6 e-tron 2023-; Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS6 Avant 2019-; Audi RS7 Sportback 2019-; Audi A6 L 2.0 2018-; Audi Q8 e-tron 2018-2020; Audi RS Q8 Quattro 2019-; Audi A8L 2017-2022; Audi Q7 qu. 3.0 TDI 2015-2019; Audi Q5 2016-2020; touareg 2017-2023.
