Product overview
Genuine OEM Audi A/C Refrigerant Pipe, part number 4M0816721DB. This pipe is an essential component of the vehicle's air conditioning system, responsible for transporting refrigerant between the A/C compressor and the condenser. It ensures the efficient circulation of refrigerant for effective cabin cooling. Weighing 0.2 kg, it measures 0.61 m in length, 0.21 m in width, and 0.095 m in height. Opting for a genuine OEM refrigerant pipe guarantees the correct material, precise fittings, and factory-specified pressure resistance for a leak-free and efficient A/C system.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 40094200
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 61 × 21 × 9.5 cm
- Shipping weight
- 0.2 kg
Parts diagram & fitment

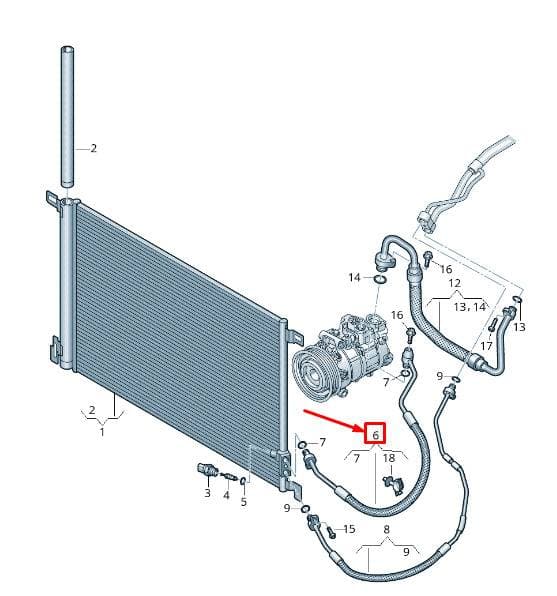

3 vehiclesCoolant Pipe — locate 4M0816721DB Audi A/C Refrigerant Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 4M0816741DA — the later replacement part.
Parts in this assembly(40)
- 1A C Conden 4M0816411M
- 1Condenser 4M0816421B
- 1A C Conden 4M0816421C
- 1Condenser 4M0816421D
- 2Insert 4M0298403
- 3Sender 4H0959126C
- 3Sender 4H0959126B
- 4Valve 8A0820855AA
- 5Seal Ring 7H0820896
- 6Line 4M0816721BB
- 6Line 4M0816721BC
- 6Part 4M0816721BN
- 6Line 4M0816721DF
- 6Line 4M0816721DG
- 6Part 4M0816721DH
- 6Line 4M0816721DM
- 6Line 4M0816721G
- 6Line 4M0816721BA
- 7Seal Ring 4E0260749A
- 8Line 4M0816741CN
- 8Line 4M0816741CP
- 8Line 4M0816741CT
- 8Water Pipe 4M0816741DA
- 8Line 4M0816741DB
- 8Line 4M0816741G
- 8Line 4M0816741CL
- 9Seal Ring 3D0260749C
- 12Water Pipe 4M0816743AC
- 12Line 4M0816743BS
- 12Line 4M0816743CH
- 12Line 4M0816743CL
- 12Line 4M0816743G
- 12Line 4M0816743BD
- 13Seal Ring 4E0260749B
- 14Seal Ring 8E0260749C
- 15Bolt N10632102
- 16Screw N10414402
- 17Screw N10582103
- 18Bracket 4M0820055
- 18Bracket 8D0971897A
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
4M0816721DB Audi A/C Refrigerant Pipe | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; Audi RS Q8 Quattro 2019-; Audi Q7 qu. 3.0 TDI 2015-2019.
