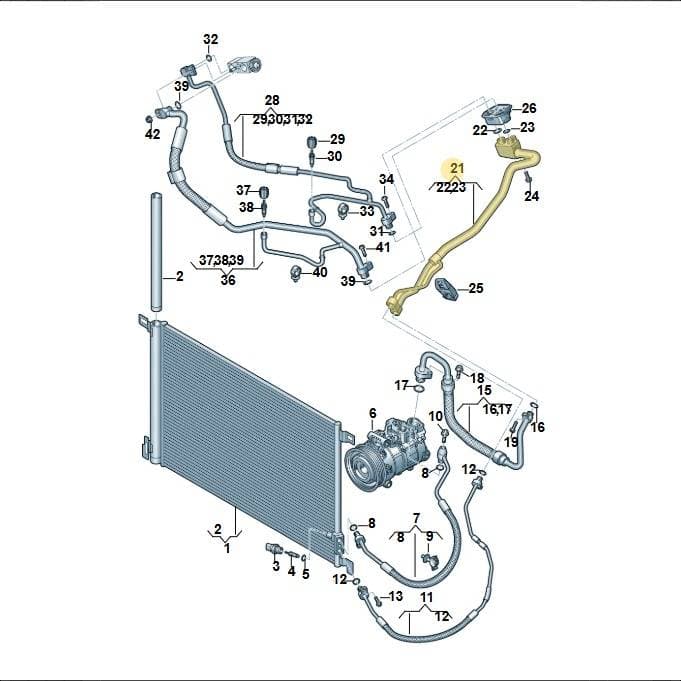

Number 21 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Pipe, part number 4M0816738M. This pipe carries refrigerant within the vehicle's air conditioning system. It is located at position 21 on the diagram. The pipe has a length of 0.71 meters. Genuine OEM refrigerant pipes are manufactured to exact specifications to prevent leaks and ensure optimal performance of the AC system.
Technical details
- Category
- Heating & A/C
- Country of origin
- Poland
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 71 × 27.8 × 13.4 cm
- Shipping weight
- 0.67 kg
Parts diagram & fitment
4 vehiclesRefrigerant Pipe — locate 4M0816738M Volkswagen Refrigerant Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1Condenser 4M0816411D
- 1Condenser 4M0816411R
- 2Insert 4M0298403
- 5Part 4M0816721EC
- 5Part 4M0816721EP
- 5Line 4M0816721ER
- 6Part 4M0959603E
- 6Part 4M0959603J
- 7Seal Ring 4E0260749A
- 8Bracket 4M0820055
- 9Screw N10414402
- 10Seal Ring 4M0261185
- 12Line 4M0816741DC
- 13Seal Ring 3D0260749C
- 14Bracket 8D0971897A
- 15Bolt N10632102
- 18Part 4M0816743DD
- 18Part 4M0816743DM
- 20Seal Ring 4E0260749B
- 21Seal Ring 8E0260749C
- 23Screw N91097201
- 25Line 4M0820706T
- 25Line 4M0816706AD
- 26Valve 8E0820855
- 27Part 3C0820581
- 27Part 5Q0816581
- 30Bracket 4M0820770
- 32Line 4M0820739AA
- 32Line 4M0816739AE
- 32Line 4M0816739T
- 34Part 3C0820231
- 34Part 5Q0816231
- 37Bracket N10649101
- 41Seal Ring WHT004858
- 44Basicplate 4M0820339H
- 46LineRight4M2816735D
- 46LineLeft4M1816735F
- 47Grommet 4M0820128
- 52LineRight4M2816740N
- 52LineLeft4M1816740R
- 56LineRight4M2816720Q
- 56LineRight4M2816720R
- 56LineLeft4M1816720AA
- 56LineLeft4M1816720AD
- 59Seal Ring 4D0260749B
- 60Valve 8R0260696A
- 60Valve 8R0260696B
- 61Seal Ring 7H0820896
Compatible / alternative parts(4)
Diagrams & fitment data powered by oemdiagrams.com
4M0816738M Volkswagen Refrigerant Pipe | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; Audi RS Q8 Quattro 2019-; Audi Q7 qu. 3.0 TDI 2015-2019; touareg 2017-2023.
