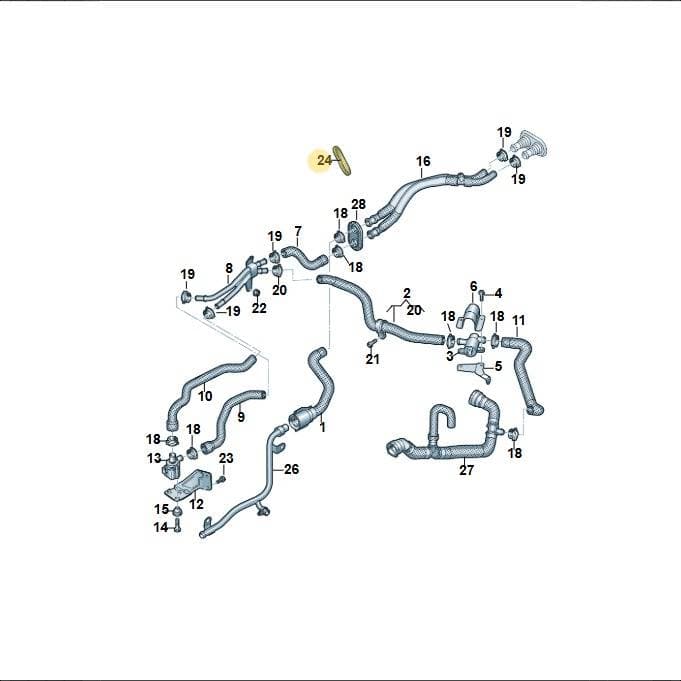

Number 24 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Grommet, part number 4M0819345B. This part functions to seal an opening, protect wires or hoses passing through it, and absorb vibration. It is located at position 24 in the assembly. The grommet measures 0.105m in length, 0.062m in width, and 0.015m in height. Genuine OEM grommets ensure precise fitment and material integrity for long-lasting performance.
Technical details
- Category
- Body Interior
- Customs (HS) code
- 40169957
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 10.5 × 6.2 × 1.5 cm
- Shipping weight
- 0.05 kg
Parts diagram & fitment
4 vehiclesGrommet — locate 4M0819345B Volkswagen Grommet | Position 24 in the official exploded view and explore the surrounding assembly.
Parts in this assembly(20)
- 1Hose 4M0819332D
- 2Hose 4M0819373AH
- 3Hose 4M0819375F
- 4Hose 4M0819372DD
- 5Hose 4M0819350J
- 6Hose 4M0819350F
- 7Pipe 4M0819857A
- 8Water Pipe 4M0819377N
- 10Hose 4M0265374R
- 11Bracket 4M0121233DA
- 12Water Pump 06H121601M
- 13Screw WHT002306
- 14Rubber Bush 4G0129234
- 18Grommet 4M0819345A
- 20Clamp N90686902
- 21Hose 4M8819350A
- 21Hose 4M8819350
- 23Collar Nut N01508210
- 24Bolt N90994403
- 25Clamp N90687001
Diagrams & fitment data powered by oemdiagrams.com
4M0819345B Volkswagen Grommet | Position 24 is fitted on: Audi Q8 Quattro 3,0 2018-; Audi RS Q8 Quattro 2019-; Audi Q7 qu. 3.0 TDI 2015-2019; touareg 2017-2023.
