Product overview
Genuine OEM Audi A/C Refrigerant Line Bracket, part number 4M0820251B. This component is designed to securely hold the air conditioning refrigerant line in place. It is typically found near the A/C evaporator unit, ensuring proper routing and preventing unwanted movement. Weighing just 0.039 kg, this bracket is engineered for precise fitment. Using a genuine OEM bracket ensures the refrigerant line is properly supported, preventing chafing or stress that could lead to leaks and system failure.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 87082990
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 10 × 5.5 × 2 cm
- Shipping weight
- 0.04 kg

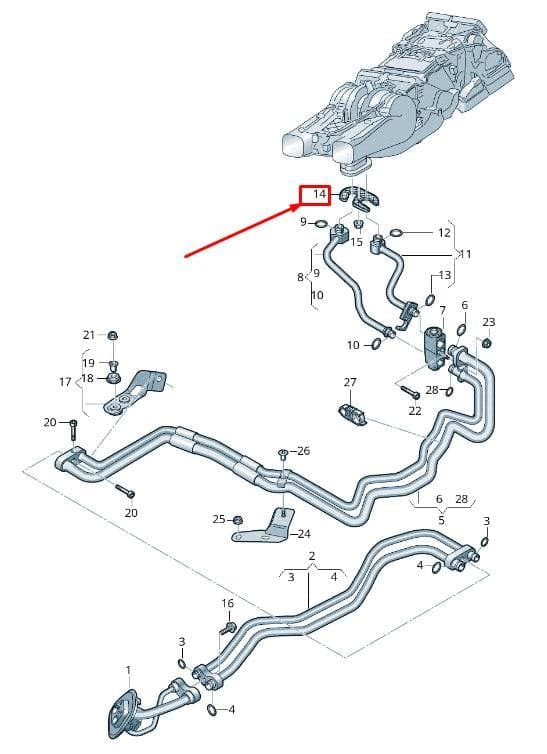

Parts diagram & fitment
3 vehiclesRetaining Plate — locate 4M0820251B Audi A/C Refrigerant Line Bracket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(25)
- 1Basicplate 4M0820339G
- 2Line 4M8816886
- 3Seal Ring 3D0260749C
- 4Seal Ring 4E0260749B
- 5Line 4M0816885F
- 7Expans Val 4M0816181A
- 7Expans Val 4M0820181B
- 8Line 4M0816725D
- 9Seal Ring 4E0260749A
- 10Seal Ring 4D0260749B
- 11Line 4M0816727D
- 12Seal Ring 4E0260749C
- 15Collar Nut N10609201
- 16Bolt N10632102
- 17Bracket 4M0820769H
- 18Mounting 4F0129669
- 19Bush 1K0129734B
- 20Screw N10582103
- 21Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 22Screw N10723801
- 23Collar Nut N01508210
- 24Bracket 4M0820769E
- 25Collar Nut 171201969
- 26Part 8D0201441C
- 27Bracket 4H0260759E
Diagrams & fitment data powered by oemdiagrams.com
4M0820251B Audi A/C Refrigerant Line Bracket | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; Audi RS Q8 Quattro 2019-; Audi Q7 qu. 3.0 TDI 2015-2019.
