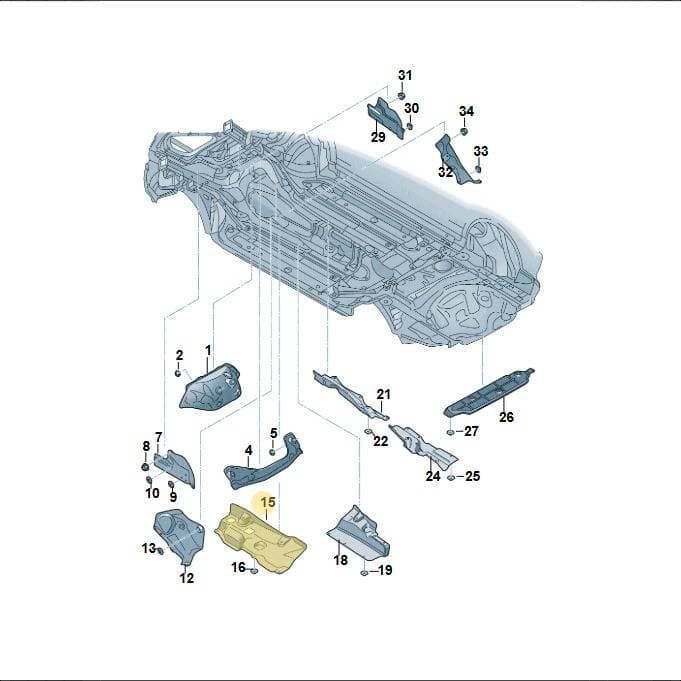

Number 15 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Tunnel Heat Shield, part number 4M0825662K. This heat shield protects the transmission tunnel area from heat generated by the exhaust and drivetrain components. It is located in the tunnel area. This part has a weight of 0.781 kg and dimensions of 0.68m x 0.64m x 0.34m. Genuine OEM heat shields are precisely engineered to withstand extreme temperatures and maintain their protective integrity over time.
Catalogue entry: HEAT SH. right.
Fitted with: N90335006 WASHER, N90335004 WASHER, N90708803 speed nut, 8K0863203 CLIP, N90570805 UT"hex. nut, self-locking with washer, 4M0825661L HEAT SH., 4M0825661N HEAT SH., 4M0825661S HEAT SH., 4M0825661Q HEAT SH., 4M0825661P HEAT SH., 4M0825661T HEAT SH., 4M0825662F HEAT SH..
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 68 × 64 × 34 cm
- Shipping weight
- 0.78 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 0K3
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehiclesHeat Shield For Tunnel — locate 4M0825662K Volkswagen Tunnel Heat Shield | Genuine OEM in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly48
- 1Heat Sh 4M0825621H
- 1Heat Sh 4M0825621J
- 1Heat Sh 4M0825621K
- 1Heat Sh 4M0825621L
- 1Heat Sh 4M0825621E
- 2Clip 8K0863203
- 2Ut"hex Nut Self-locking With Washer Hex Nut N90570805
- 2Part N90708803
- 2Washer N90335004
- 3Heat Sh 4M0825623F
- 3Heat Sh 4M0825623E
- 4Heat Sh 4M0825641E
- 5Heat Sh 4M0825642F
- 6Collar Nut N01508210
- 6Part N90714303
- 7Heat ShLeft4M1825643F
- 7Heat ShLeft4M1825643J
- 7Heat ShLeft4M1825644E
- 7Heat ShLeft4M1825644F
- 7Heat ShRight4M2825643D
- 7Heat ShRight4M2825643G
- 7Heat ShRight4M2825644C
- 7Heat ShRight4M2825644D
- 9Heat Sh 4M0825725D
- 10Heat Sh 4M0825711F
- 11Heat ShLeft4M0825661AK
- 11Heat ShLeft4M0825661AP
- 11Heat ShLeft4M0825661N
- 11Heat ShLeft4M0825661Q
- 11Heat ShLeft4M0825661S
- 11Heat ShLeft4M0825661T
- 12Heat ShRight4M0825662H
- 12Heat ShRight4M0825662J
- 12Heat ShRight4M0825662M
- 12Heat ShRight4M0825662N
- 12Heat ShRight4M0825662Q
- 12Heat ShRight4M0825662R
- 12Heat ShRight4M0825662S
- 13Heat ShLeft4M0825691H
- 13Heat ShLeft4M0825691K
- 13Heat ShLeft4M0825691L
- 13Heat ShRight4M0825692D
- 13Heat ShRight4M0825692F
- 13Heat ShRight4M0825692H
- 13Heat ShLeft4M0825691F
- 15Water Box 4M0819523A
- 16Seal 4M0819532A
- 17Bolt N10653201
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 12 | 1 | 0K3 | |
| touareg | 2017-2023 | 15 | 1 | 0K3 | |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 11 | 1 | 0K3 |
The manufacturer’s catalogue lists this part number as fitted until 23 August 2021; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
4M0825662K Volkswagen Tunnel Heat Shield | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; touareg 2017-2023; Audi Q7 qu. 3.0 TDI 2015-2019.
