4N0122109H Coolant Hose With Quick Release Coupling
€42.39 excl. VAT
- 4N0122293AQNot stocked
- 4N0122109HThis pageNot stocked
Jul 2023 - 4N0122109AACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

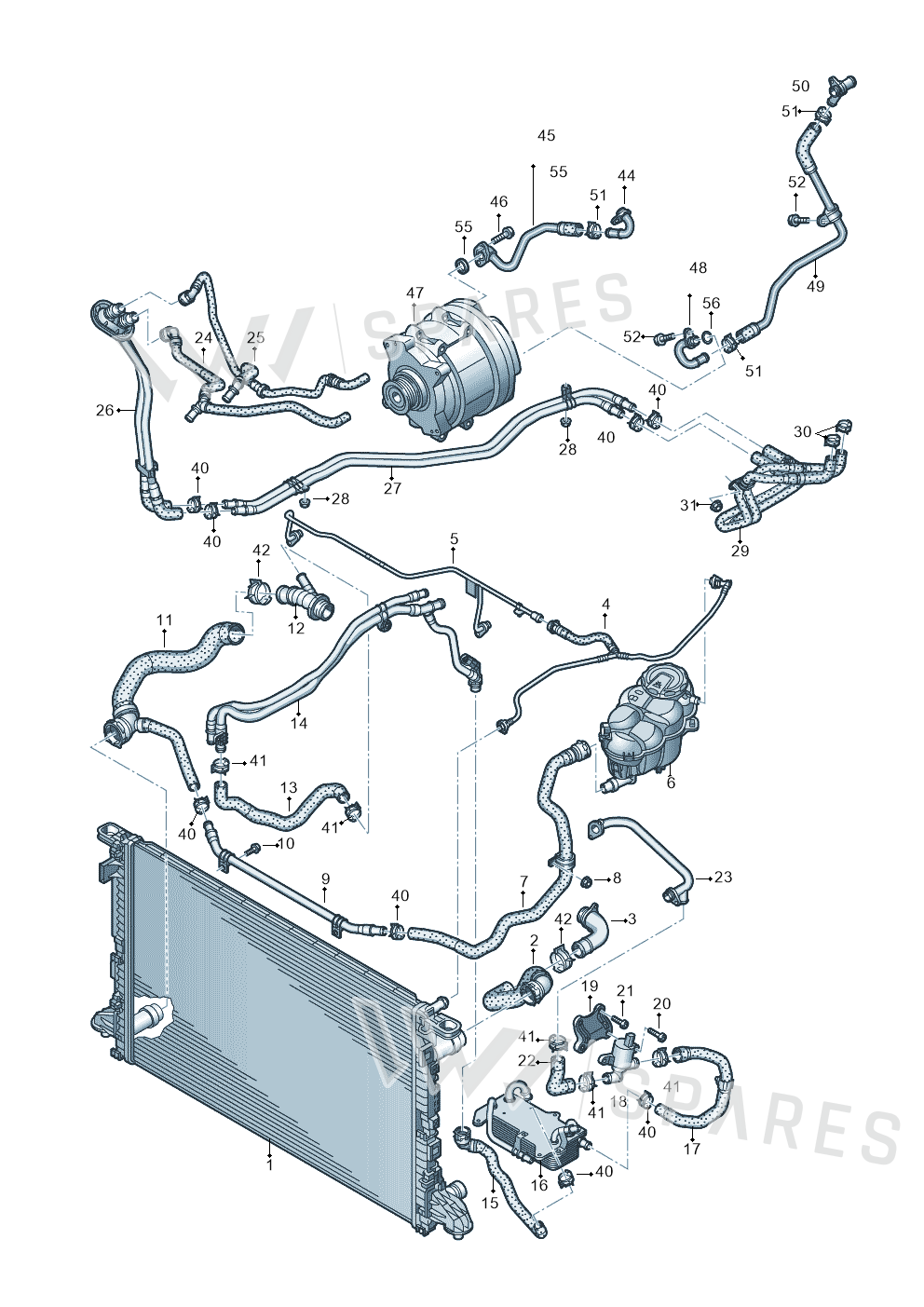

1 vehicleCoolant Hose With Quick Release Coupling — locate Coolant Hose With Quick Release Coupling in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 2Hose 4N0122101B
- 4Line 4N0121081BJ
- 4Line 4N0121081D
- 7Hose 4N0122109AA
- 8Collar Nut N01508210
- 9Water Pipe 4N0121070C
- 10Bolt N10748001
- 11Hose 4N0122055B
- 13Hose 4N0819672N
- 15Hose 4N0122449
- 17Hose 4N0122448N
- 18Valve 4H0121671G
- 19Bracket 4N0121305F
- 20Bolt N10666701
- 21Bolt N10124309
- 22Hose 4N0121056AJ
- 26Grommet 8W0122291AG
- 26Water Pipe 4N0121064A
- 27Water Pipe 4N0121083A
- 29Water Pipe 4N0121050E
- 29Water Pipe 4N0121050B
- 30Clamp 06B145917A
- 30Clamp 1K0423933
- 40Clamp N90686902
- 41Clamp N90687001
- 42Clamp N90926501
- 45Water Pipe 06M121661H
- 45Water Pipe 06M121661J
- 45Water Pipe 06M121661D
- 46Bolt N10156206
- 48Water Pipe 06M121486E
- 48Water Pipe 06M121486F
- 48Water Pipe 06M121486D
- 49Water Pipe 06M121662D
- 52Bolt N91096701
- 55Seal 06M121488A
- 55Seal 06M121488
- 56Seal Ring N90097001
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A8L | 2017-2022 | 7 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Hose With Quick Release Coupling is fitted on: Audi A8L 2017-2022.
