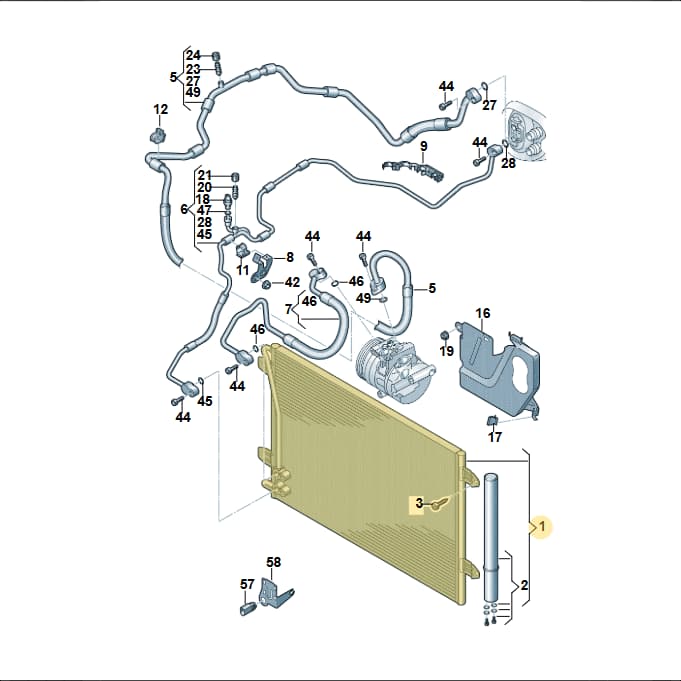

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen A/C Condenser, part number 561820411. This component functions as the heat exchanger for the vehicle's air conditioning system, dissipating heat from the refrigerant. It is located at the front of the vehicle, typically in front of the radiator. Genuine OEM condensers are designed for precise refrigerant flow and heat transfer, ensuring efficient and reliable cooling performance.
Technical details
- Category
- Other
- Customs (HS) code
- 84189910
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 77 × 63 × 12 cm
- Shipping weight
- 3.5 kg
Parts diagram & fitment
1 vehicleA C Condenser — locate 561820411 Volkswagen A/C Condenser | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(43)
- 2Drier 561898191
- 2Part 561898191A
- 3Bolt N90817003
- 5Line 561820743
- 5Line 561820743B
- 5Line 561820743C
- 5Line 561820743D
- 5Line 561820743E
- 5Line 561820743F
- 5Line 561820743G
- 5Line 5C0820743A
- 5Line 561820743A
- 6Line 561820741
- 6Line 5C0820741A
- 6Hose 5C0820741AL
- 6Line 5C0820741AQ
- 6Line 5C0820741Q
- 6Line 5C0820741C
- 7Line 561820721
- 7Line 561820721C
- 7Line 5C0820721A
- 7Line 5C0820721S
- 7Line 5C0820721T
- 7Line 561820721A
- 8Bracket 5C0820769B
- 9Clip 1K0820055
- 11Clamp N10754901
- 12Clamp N10755001
- 16Heat Sh 5C1820897A
- 17Clip N90245502
- 18Sensor 1K0959126D
- 19Collar Nut N01508210
- 20Valve 8E0820855
- 21Part 3C0820581
- 24Part 3C0820231
- 27Seal Ring 4E0260749B
- 28Seal Ring 3D0260749C
- 44Screw N10414402
- 46Seal Ring 4E0260749A
- 47Seal Ring 8E0260749
- 49Seal Ring 8E0260749C
- 57Sensor 8Z0820535
- 58Bracket 5M0820536A
Diagrams & fitment data powered by oemdiagrams.com
561820411 Volkswagen A/C Condenser | Genuine OEM is fitted on: New Passat 2011-2015.
