Product overview
Genuine OEM Volkswagen Bonnet, part number 561823031F. This is the hinged metal cover that protects the engine compartment. It is located at the front of the vehicle. This part weighs approximately 24 kg. Genuine OEM parts are manufactured to exact specifications for a precise fit and reliable performance.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 173 × 135 × 22 cm
- Shipping weight
- 24 kg
Parts diagram & fitment

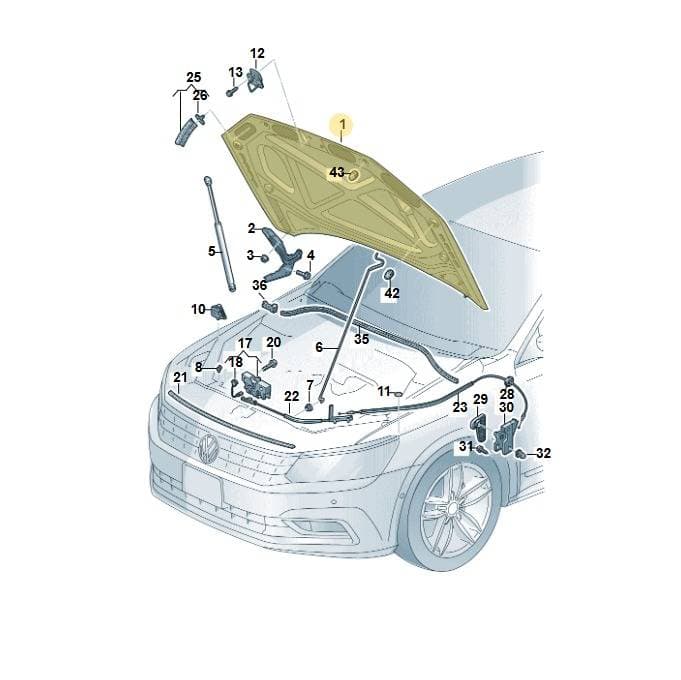

1 vehicleBonnet — locate 561823031F Volkswagen Bonnet | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(42)
- 1Bonnet 561823031G
- 2HingeLeft561823301A
- 2HingeLeft561823301C
- 2HingeLeft561823301D
- 2HingeRight561823302A
- 2HingeRight561823302C
- 2HingeRight561823302D
- 3Collar Nut N90798805
- 4Bolt N90798702
- 5G Fill Str 561823359A
- 5G Fill Str 561823359B
- 6Support 561823363C
- 7Rubber Bush 171823395
- 8Clip 1U0823397
- 10PieceLeft561823493A
- 10PieceRight561823494A
- 11Prot Film AKL44830004
- 12Catch Hook 1K8823186F
- 12Catch Hook 561823186
- 13Collar Nut N01508210
- 13Bolt N90903001
- 17Lock 5C7823509B
- 17Lock 5C7823509E
- 17Lock 5U0823509H
- 17Part 5U0823509N
- 18Switch 5C6953236B
- 20Bolt WHT000425
- 22Lid Cable 561823531A
- 23Lid Cable 561823535
- 25Seal 17A823709
- 26Clip 1H0823717
- 28Grommet 1K0823591B
- 29Handle 561823533
- 30Bracket 6R1823633
- 31Bolt N90974701
- 32Part N90833801
- 35Seal 561823723
- 36Filler Piece 561864759
- 36Filler Piece 561864759B
- 36Filler Piece 561864760
- 36Filler Piece 561864760B
- 42Buffer 867827500A
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
561823031F Volkswagen Bonnet | Genuine OEM is fitted on: New Passat 2015-2022.
