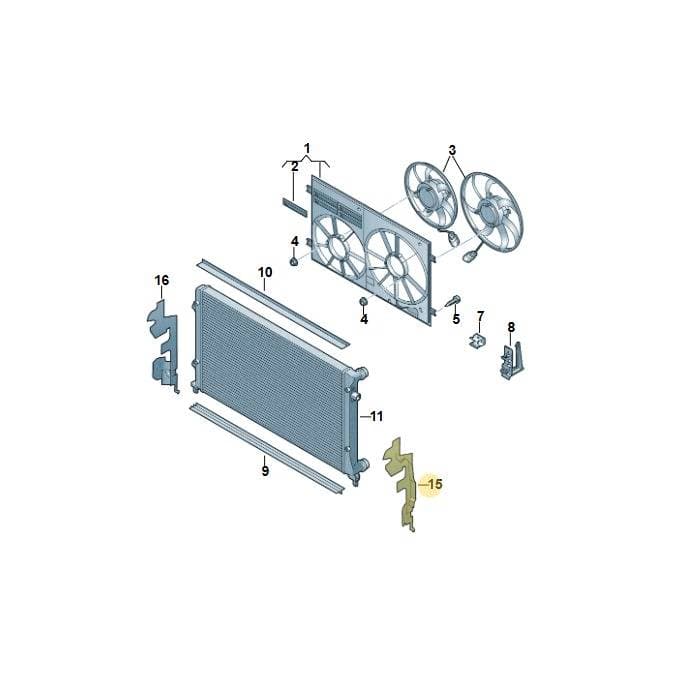

Number 15 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Luftfuehrg, part number 5C6121283. This air guide is designed to direct airflow to specific engine components for cooling or ventilation purposes. It is positioned as item 15 in the diagram. The dimensions are approximately 0.49m in length, 0.16m in width, and 0.125m in height, with a weight of 0.113 kg. Genuine OEM ensures correct airflow dynamics and optimal engine cooling.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 49 × 16 × 12.5 cm
- Shipping weight
- 0.11 kg
Parts diagram & fitment
5 vehiclesAir Guide — locate 5C6121283 Volkswagen Luftfuehrg | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(8)
- 2Fan Ring 1J0121205B
- 4Bracket 1J0121206G
- 5Bracket 1J0121206H
- 8Screw N90542604
- 9Bolt N90817003
- 10Collar Nut N01508210
- 15Air Guide 5C6121284
- 16Bolt N0102613
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
5C6121283 Volkswagen Luftfuehrg | Genuine OEM is fitted on: Jetta City "Mex"08> 2007-; jetta 2010-2014; jetta 2013-2014; Jetta 1.4 2013-2015; jetta 2014-2017.
