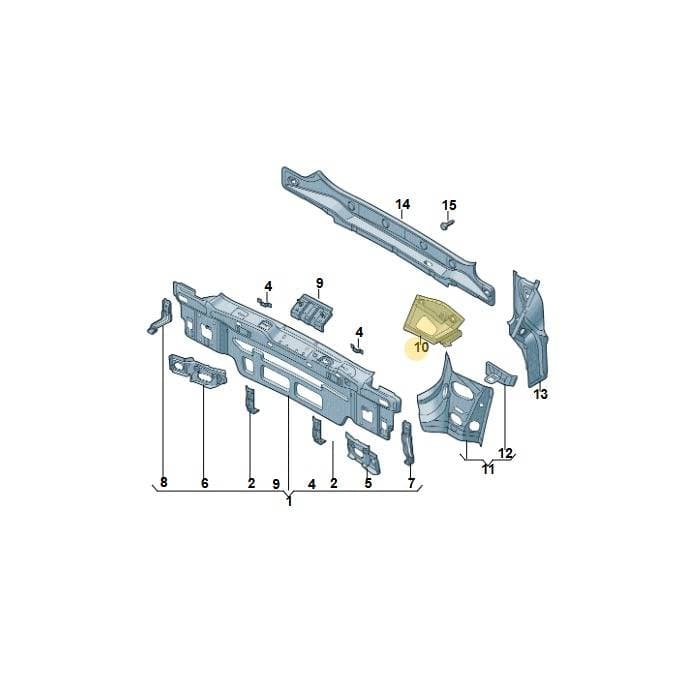

Number 10 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Reinforcement For Seal Channel, part number 5G9813334. This part strengthens the channel that holds weather seals to prevent leaks. It is located at position 10 in the diagram. The part weighs 0.54 kg and has dimensions of 0.34m x 0.26m x 0.09m. Genuine OEM reinforcement ensures precise fitment and structural integrity for long-lasting protection against leaks.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 34 × 26 × 9 cm
- Shipping weight
- 0.54 kg
Parts diagram & fitment
4 vehiclesReinforcement For Seal Channel — locate 5G9813334 Volkswagen Reinforcement For Seal Channel | Genuine OEM in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(16)
- 1End Plate 5G9813304
- 1End Plate 5G9813304A
- 2Bracket 5G9813745
- 4Bracket Mt 6Q6813269
- 5Support 5G9804749
- 6Support 5G9804750
- 7Bracket 5G9807125
- 8Bracket 5G9807126
- 9Reinforce 5G9813323
- 10ReinforceLeft5G9813333
- 11ReinforceRight5G9813336
- 11ReinforceLeft5G9813335
- 13SupportLeft5G9813327A
- 13SupportRight5G9813328A
- 14End Plate 5G9813309
- 15Screw N91017602
Compatible / alternative parts(11)
Diagrams & fitment data powered by oemdiagrams.com
5G9813334 Volkswagen Reinforcement For Seal Channel | Genuine OEM is fitted on: POLO HATCH "ZA"06> 2005-; Golf Estate 2013-2017; Golf Estate 1.4 2014-2017; golf 2.0 2016-2020.
