Product overview

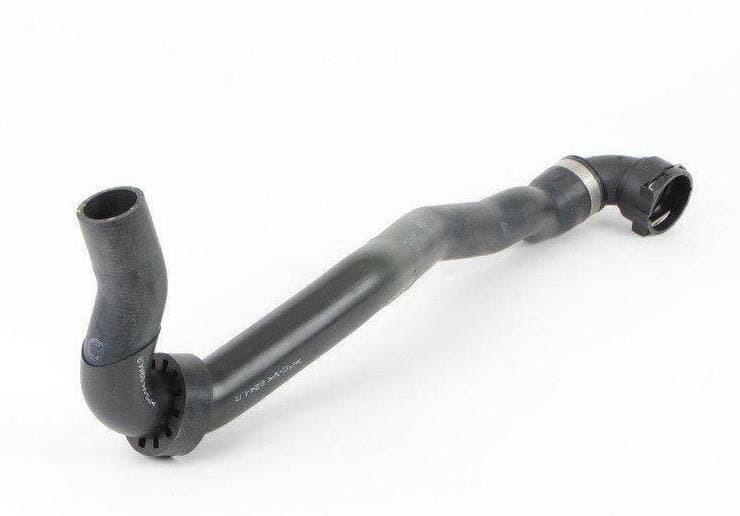

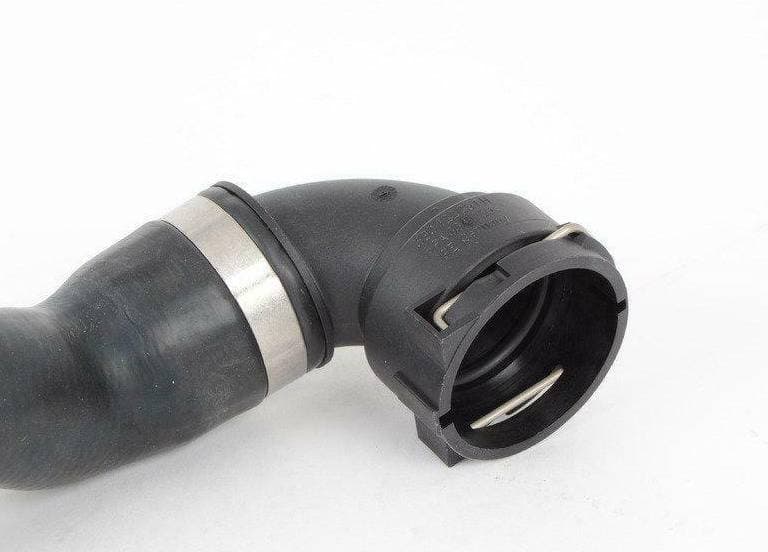

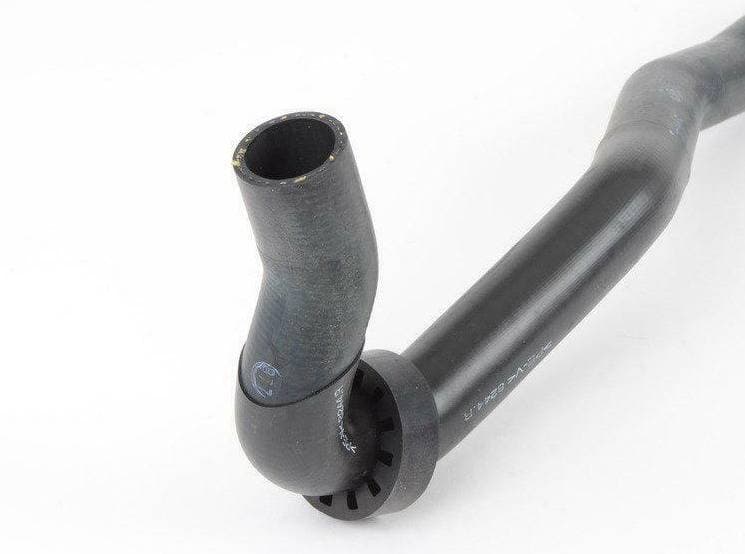

Genuine OEM Volkswagen Radiator Upper Coolant Hose, part number 5N0121101G. This hose is responsible for transferring hot coolant from the engine to the radiator, playing a vital role in the engine's cooling system. It is positioned as the upper connection between the engine and radiator. This molded rubber hose, approximately 0.58 m in length, ensures the correct routing geometry and material resistance to heat and pressure for reliable, leak-free coolant circulation.
Technical details
- Category
- Engine Cooling
- Country of origin
- Germany
- Customs (HS) code
- 40093100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 58 × 17.5 × 9.6 cm
- Shipping weight
- 0.5 kg
Parts diagram & fitment

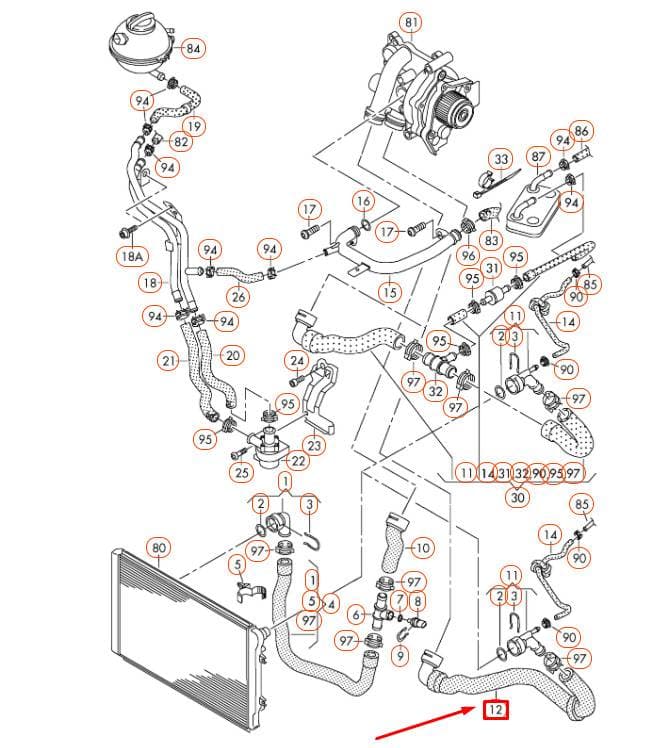

3 vehiclesCoolant Hose With Quick Release Coupling — locate 5N0121101G Volkswagen Radiator Upper Coolant Hose | Engine Cooling in the official exploded view and explore the surrounding assembly.
Parts in this assembly(36)
- 1Coupl Piece 5N0122291C
- 2Seal Ring N90765301
- 3Spring 1J0121142
- 4Hose 5N0121051F
- 5Bracket 3C0121093
- 6Tpiece N90693101
- 7Seal Ring N90316801
- 8Sender 06A919501A
- 9Spring 032121142
- 10Hose 5N0121051C
- 11Coupl Piece 5N0122291
- 14Hose 5N0121447K
- 15Water Pipe 06J121065F
- 16Seal Ring WHT006407
- 17Bolt N10405604
- 18Water Pipe 1K0121070BD
- 18Water Pipe 1K0121070BM
- 18AScrew N10611201
- 18ABolt N90925202
- 19Hose 5N0121109B
- 20Hose 5N0121109C
- 21Hose 5N0121109D
- 22Pump 1K0965561J
- 23Bracket 1K0121093BH
- 24Bolt N10524202
- 25Bolt N10124408
- 26Hose 1K0121109AL
- 30Part 5N0122101AH
- 31Part 1K0121113A
- 32Part N90692901
- 33Part N10667101
- 90Clamp N90686701
- 94Clamp N90686902
- 95Clamp N90687001
- 96Clamp N90687101
- 97Clamp N90687201
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
5N0121101G Volkswagen Radiator Upper Coolant Hose | Engine Cooling is fitted on: TIGUAN 08> 2007-; Tiguan 2009-2019; Tiguan 4Motion 2011-2018.
