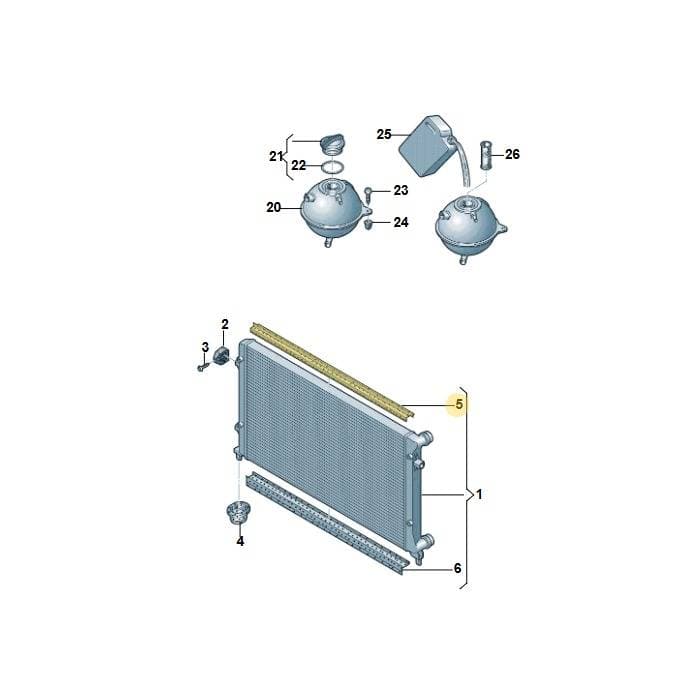

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Coolant Seal, part number 5N0121345D. This seal creates a watertight barrier to prevent coolant from escaping at connection points within the engine cooling system. It is located at position 5 in the diagram. Made from durable rubber, this seal ensures reliable performance and prevents leaks. Genuine OEM seals are manufactured to exact specifications for a perfect fit and optimal sealing.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 53.4 × 8 × 3.5 cm
- Shipping weight
- 0.07 kg
Parts diagram & fitment
5 vehiclesSeal — locate 5N0121345D Volkswagen Coolant Seal | Position 5 in the official exploded view and explore the surrounding assembly.
Parts in this assembly(30)
- 1Housing 03C121111P
- 2Cover 03C121121D
- 3Seal Ring 03C121119C
- 4Coolant Rg 03C121110L
- 5Screw N10611201
- 8Cover 03C121118D
- 9Seal Ring 03C121119
- 10Coolant Rg 03C121110G
- 12Sender 06A919501A
- 13Seal Ring N90316801
- 14Spring 032121142
- 17Seal 03C121119E
- 18Bolt N91097001
- 20Tank 1K0121407A
- 21Cover 2Q0121321A
- 22Seal Ring 1H0121687A
- 23Bolt N91090701
- 24Part 811807577C
- 25CoolantLeftG013A8JM8
- 25CoolantLeftG013A8JM9
- 25CoolantLeftG013A8JM1
- 30Radiator 5N0121253L
- 30Radiator 5N0121253H
- 31Seal 5N0121345
- 32Seal 5N0121345J
- 32Seal 5N0121345G
- 33Bracket 5N0121367
- 33Bracket 1K0121367G
- 34Bolt N90808201
- 35Bush 1K0121367F
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
5N0121345D Volkswagen Coolant Seal | Position 5 is fitted on: TIGUAN 08> 2007-; Tiguan 2009-2019; jetta 2010-2014; new beetle cabriolet 2011-2016; Tiguan 4Motion 2011-2018.
