Target · Diagram
Find this reference above

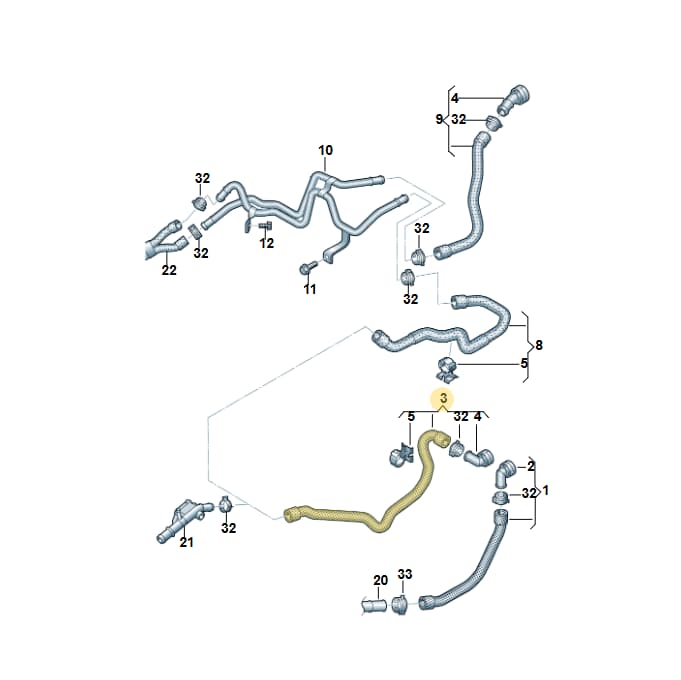

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Quick Release Coolant Hose, part number 5N0122157AJ. This flexible hose is designed to transfer coolant between engine components, allowing for easy connection and disconnection of coolant lines. It is an integral part of the engine's thermal management system. Weighing 0.226 kg, it measures approximately 0.455 m in length. Using a genuine OEM coolant hose ensures proper fit, material integrity, and resistance to temperature and pressure fluctuations for reliable cooling performance.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 40093100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 45.5 × 26 × 6.5 cm
- Shipping weight
- 0.23 kg
Parts diagram & fitment
6 vehiclesCoolant Hose With Quick Release Coupling — locate 5N0122157AJ Audi Quick Release Coolant Hose | Engine Cooling in the official exploded view and explore the surrounding assembly.
Parts in this assembly(18)
- 1Hose 7N0122073T
- 2Coupl Piece 1K0122291J
- 3Part 5N0122157AM
- 4Coupl Piece 7M0122291
- 5Part 5N0122157AL
- 5Part 5N0122157AK
- 6Part 3B0122291B
- 7Hose 5N0121051J
- 7Hose 7N0121051C
- 8Hose 1K0121101CP
- 9Water Pipe 5N0121065
- 10Seal Ring N90316801
- 11Spring 032121142
- 12Sender 06A919501A
- 14Water Pipe 5N0121070Q
- 15Bolt N90898102
- 95Clamp N90687001
- 96Clamp N90687101
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
5N0122157AJ Audi Quick Release Coolant Hose | Engine Cooling is fitted on: TIGUAN 08> 2007-; Sharan Blue Motion 2010-2015; Tiguan 4Motion 2011-2018; Audi Q3 quattro 2011-2015; Audi Q3 2.0 TDI 2014-2019; Alhambra Stylance 2010-2013.
