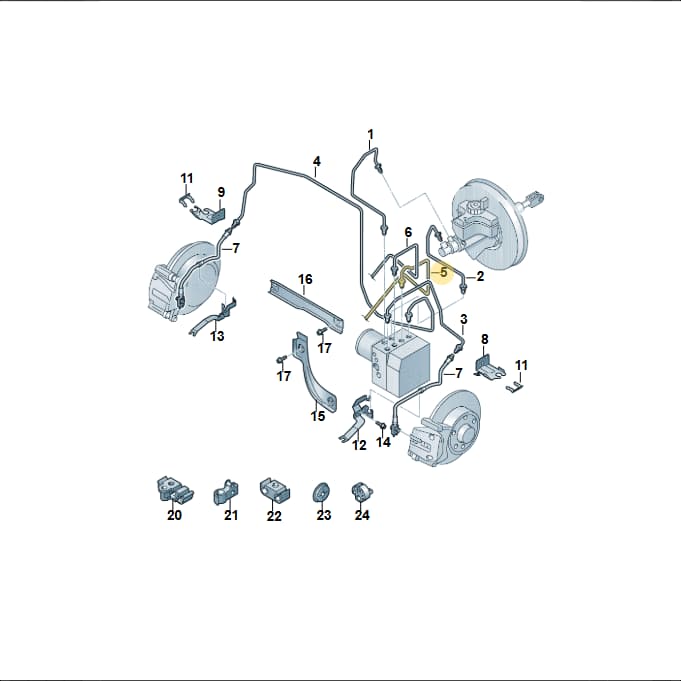

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Brake Pipe, part number 5N0614725G. This critical pipe is responsible for transmitting hydraulic pressure from the master cylinder and ABS module to the brake calipers, enabling effective braking. Measuring 0.78 m in length and weighing 0.092 kg, this genuine OEM brake pipe is manufactured to withstand high hydraulic pressures and resist corrosion, ensuring leak-free performance and consistent braking response.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 78 × 21 × 4.8 cm
- Shipping weight
- 0.09 kg
Parts diagram & fitment
5 vehiclesBrake Pipe — locate 5N0614725G Volkswagen Brake Pipe | Hydraulic Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly(20)
- 1Brake Pipe 5N1614739C
- 2Brake Pipe 5N1614740F
- 3Brake Pipe 7N0614723A
- 4Brake Pipe 7N1614724A
- 6Brake Pipe 5N0614726G
- 7Brake Hose 7N0611701
- 8Retainer 5N0611845B
- 9Retainer 5N0611846B
- 11Bracket 191611715
- 12Retainer 5N0611841A
- 13Retainer 5N0611842A
- 14Bolt N90245210
- 15Prot Plate 5N1611732
- 16Cover 5N0611732A
- 17Bolt N91123501
- 20Bracket 3C0611797C
- 21Bracket 5Q0611797E
- 22Retainer 8K0611797G
- 23Grommet 1K0611751
- 24Sleeve 1J0611853
Diagrams & fitment data powered by oemdiagrams.com
5N0614725G Volkswagen Brake Pipe | Hydraulic Line is fitted on: Sharan BlueMotion 2015-2022; Audi Q3 1.4 2016-; Audi Q3 quattro 2011-2015; Audi Q3 2.0 TDI 2014-2019; Alhambra Stylance 2015-2022.
