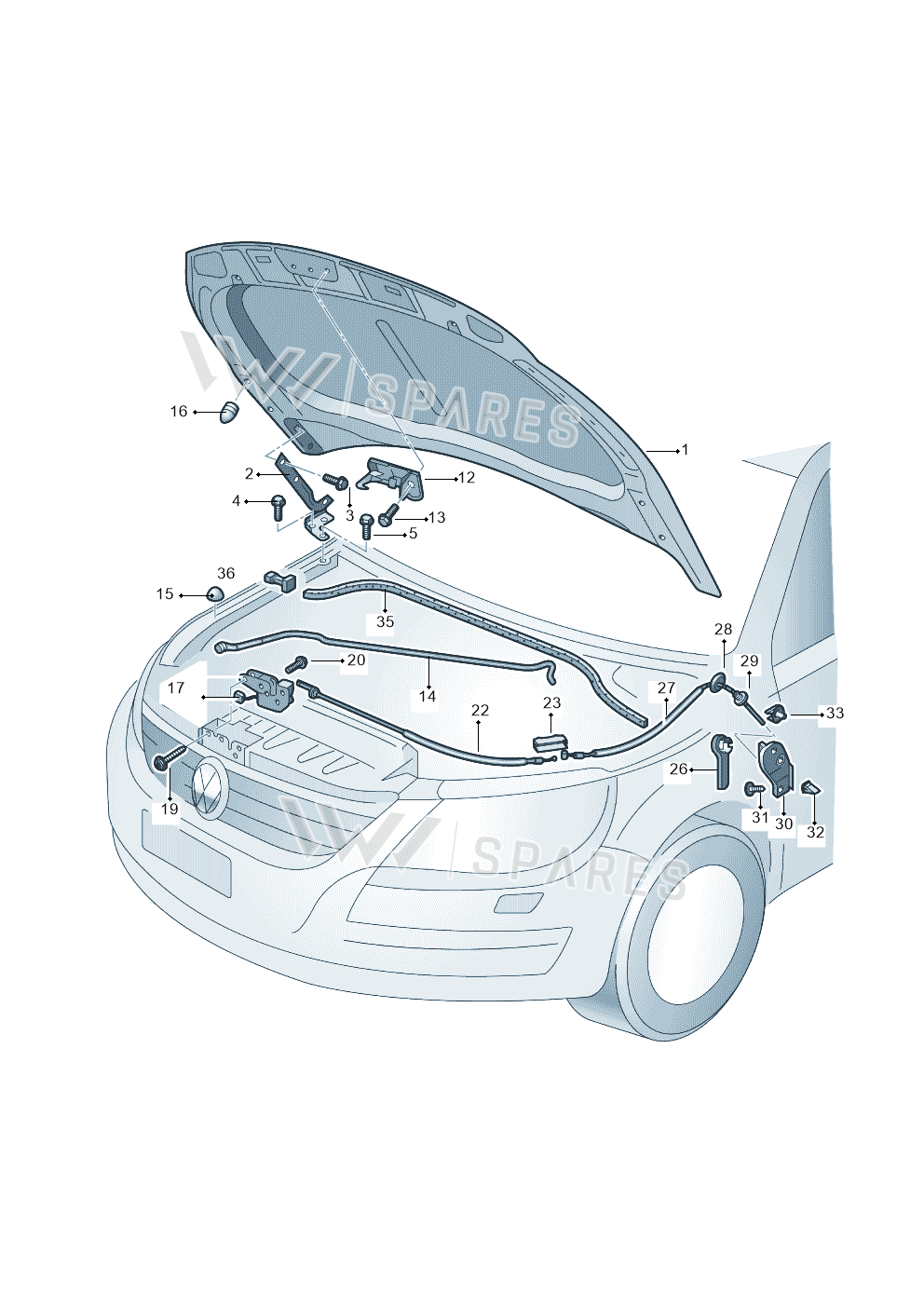

Bonnet exploded parts diagram — Tiguan · 2009-2019, position 1 — Tiguan · 2009-2019 · position 1Full diagram ↓

5N0823031A

5N0823031A Bonnet

Name: 5N0823031A Bonnet
Brand: Volkswagen
SKU: 5N0823031A
Price: 519.96 EUR
Availability: Discontinued

€519.96

incl. 21% VAT

€429.72 excl. VAT

Supersession roadoldest to newest

5N0823021A
Not stocked May 2009
5N0823031A
Not stocked Apr 2010
You are here
5N0823031D
Current number

5N0823021ANot stocked
May 2009
5N0823031AThis pageNot stocked
Apr 2010
5N0823031DCurrent number

Current part number5N0823031DWhat the manufacturer supplies todayOrder

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

1 vehicle

Bonnet — locate Bonnet in the official exploded view and explore the surrounding assembly.

Parts in this assembly27

Vehicle fitment table1

Other markets (1)

Vehicle	Years	Pos.	Qty
Tiguan	2009-2019	1	1
