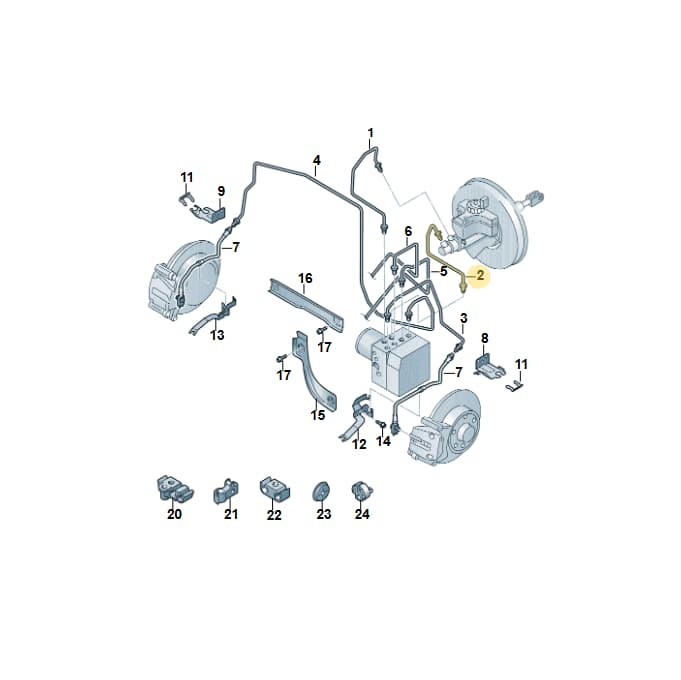

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Brake Line, part number 5N1614740B. This essential component is responsible for transferring hydraulic pressure from the master cylinder or ABS unit to the brake calipers or wheel cylinders. It is a rigid line within the vehicle's hydraulic braking system, ensuring consistent and reliable brake fluid delivery. Weighing 0.073 kg and measuring 0.29m in length, this genuine OEM brake line is manufactured to precise specifications, ensuring proper routing, leak-free connections, and the high burst strength required for safe and effective braking performance.
Catalogue entry: BRAKE PIPE lhd.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29 × 12.5 × 7 cm
- Shipping weight
- 0.07 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- L0L
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
5 vehiclesBrake Pipe — locate 5N1614740B Audi Brake Line | Hydraulic System in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly23
- 1Brake PipeRight5N2614739C
- 1Brake PipeLeft5N1614739B
- 2Brake PipeRight5N2614740C
- 3Brake Pipe 5N0614723B
- 4Brake PipeRight5N2614724B
- 4Brake PipeLeft5N1614724B
- 5Brake Pipe 5N0614725D
- 5Brake Pipe 5N0614725C
- 6Brake Pipe 5N0614726D
- 6Brake Pipe 5N0614726C
- 7Brake Hose 5N0611701
- 8Prot Plate 5N1611732
- 9Cover 5N0611732A
- 9Cover 5N1611716
- 11Retainer 5N0611841A
- 12Retainer 5N0611842A
- 13Bracket 191611715
- 15Bracket 3C0611797C
- 16Bracket 5N0611797
- 17Clip 8K0611797D
- 18Grommet 1K0611751
- 20Bolt N91123501
- 21Bolt N90245210
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tiguan 4Motion | 2011-2018 | 2 | 1 | L0L | |
| Audi Q3 quattro | 2011-2015 | 2 | 1 | D | |
| Sharan Blue Motion | 2010-2015 | 2 | 1 | ||
| Alhambra Stylance | 2010-2013 | 2 | 1 | L0L | |
| TIGUAN 08> | 2007- | 2 | 1 | L0L |
Diagrams & fitment data powered by oemdiagrams.com
5N1614740B Audi Brake Line | Hydraulic System is fitted on: Tiguan 4Motion 2011-2018; Audi Q3 quattro 2011-2015; Sharan Blue Motion 2010-2015; Alhambra Stylance 2010-2013; TIGUAN 08> 2007-.
