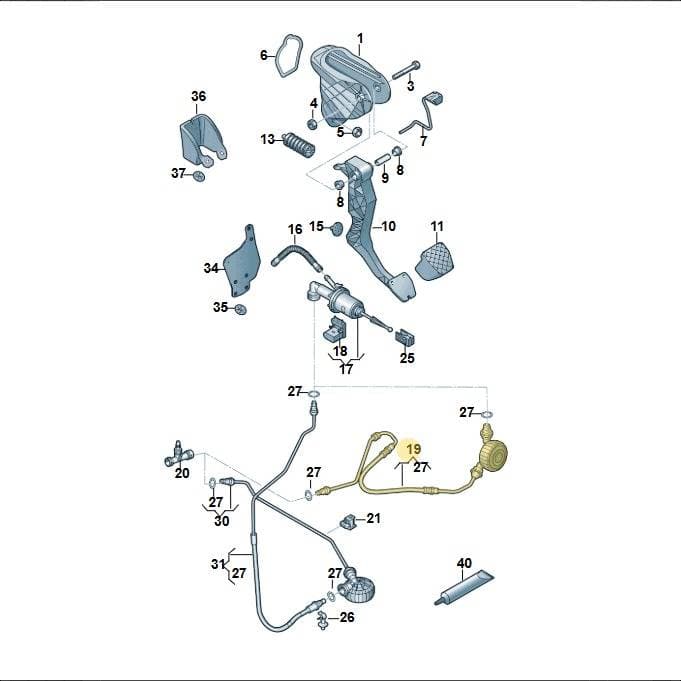

Number 19 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Protection Sleeve, part number 5N1721480C. This sleeve protects components from excessive heat exposure, ensuring their longevity and proper function. It is typically found in the engine bay or exhaust system area. The sleeve has a weight of 0.09 kg and a length of 0.55m. Genuine OEM construction provides the correct thermal resistance and fit to effectively shield sensitive parts from heat damage.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 55 × 23 × 13 cm
- Shipping weight
- 0.09 kg
Parts diagram & fitment
8 vehiclesPipe Assembly — locate 5N1721480C Volkswagen Heat Protection Sleeve | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 5N1721480E — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(33)
- 2Bracket 1K0721373H
- 3Bolt N01037013
- 4Collar Nut N02300313
- 6Seal 1K0721410C
- 7MemberRight1K2721913J
- 7MemberLeft5N1721913
- 8Bush 1J0721153
- 9Part WHT000671
- 10Foot PedalRight3C2721318A
- 10Foot PedalLeft1K1721321D
- 11Pedal PadRight1K2721174A
- 11Pedal PadLeft1K1721174
- 13Spring 1K0721403
- 15Buffer 1J0721381
- 16HoseLeft3C1721453
- 16HoseLeft6Q1721453B
- 17Master Cylinder 3C0721388J
- 18Hallsensor 3C0927810C
- 20Breather 1J0721468C
- 20Breather 1K0721468A
- 21Clip 4D0201278Q
- 25Support 1K0721357A
- 26Clip 1K0721491B
- 27Seal Ring 02F141143A
- 28Seal Ring 1K0721741
- 30Line 5N2721465
- 31Part 5N2721465F
- 31Line 5N2721465C
- 32Grease G00045002
- 34At Heat Reflective Mat Heat Reflective Mat Heat 5N2721615
- 35Washer N90335005
- 36Insulation 5N0721794
- 37Washer N10726401
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
5N1721480C Volkswagen Heat Protection Sleeve | Genuine OEM is fitted on: TIGUAN 08> 2007-; Tiguan 2009-2019; Sharan Blue Motion 2010-2015; Tiguan 4Motion 2011-2018; Sharan BlueMotion 2015-2022; Alhambra Stylance 2010-2013; Alhambra Stylance 2015-2022; Audi Q3 quattro 2011-2015.
