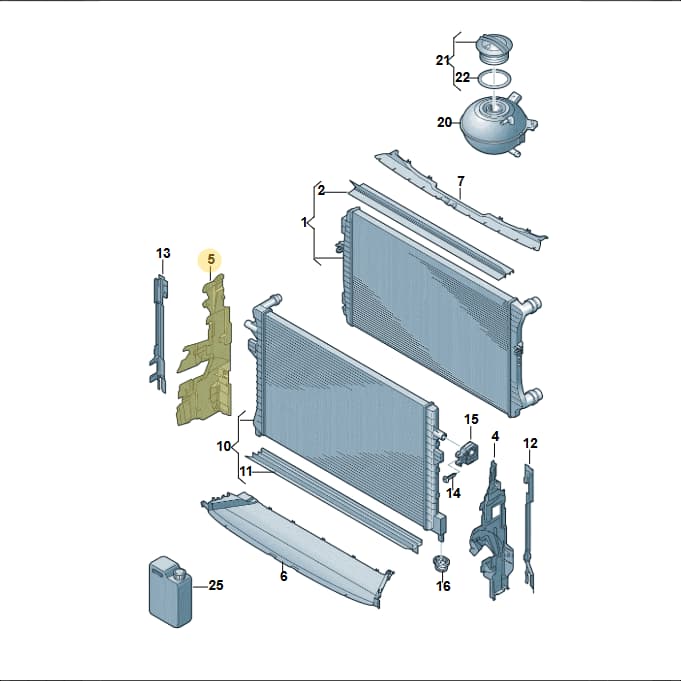

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Air Guide, part number 5NA121284P. This component is designed to precisely direct airflow within the engine compartment, optimizing cooling for various systems. It is positioned on the right side of the radiator assembly. Weighing 0.18 kg, this genuine OEM air guide ensures proper aerodynamic properties and durable construction to withstand engine bay temperatures and vibrations, maintaining efficient airflow.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 58 × 25 × 8.5 cm
- Shipping weight
- 0.18 kg
Parts diagram & fitment
2 vehiclesAir Guide — locate 5NA121284P Volkswagen Air Guide | Right Side in the official exploded view and explore the surrounding assembly.
Parts in this assembly(34)
- 1Radiator 5WA121251D
- 1Radiator 5Q0121251GD
- 2Seal 5Q0121345T
- 4Air Guide 5NA121283AL
- 4Air Guide 5NA121283AQ
- 4Air Guide 5NA121283BC
- 4Air Guide 5NA121283C
- 4Air Guide 5NA121283Q
- 4Air Guide 5NA121283R
- 4Air Guide 5NA121283
- 5Air Guide 5NA121284AC
- 5Air Guide 5NA121284AK
- 5Air Guide 5NA121284AN
- 5Air Guide 5NA121284AP
- 5Air Guide 5NA121284Q
- 5Air Guide 5NA121284AB
- 6Cover 5NA121341G
- 6Cover 5NA121341H
- 7Cover 5NA121330
- 10Radiator 5Q0121251HP
- 10Radiator 5Q0121251GB
- 11Seal 5Q0121345H
- 12Seal Strip 5G0121331H
- 13Seal Strip 5G0121332H
- 14Bolt N90972201
- 15Bracket 5Q0121367F
- 16Bush 1K0121367F
- 20Container 5Q0121407AA
- 21Cover 2Q0121321A
- 22Seal Ring 1H0121687A
- 25Coolant G013774M2
- 25Coolant G013A8JM8
- 25Coolant G013A8JM9
- 25Coolant G013A8JM1
Diagrams & fitment data powered by oemdiagrams.com
5NA121284P Volkswagen Air Guide | Right Side is fitted on: Tiguan 2.0 4Motion 2016-2022; Tiguan 2.0 4Motion 2016-2024.
