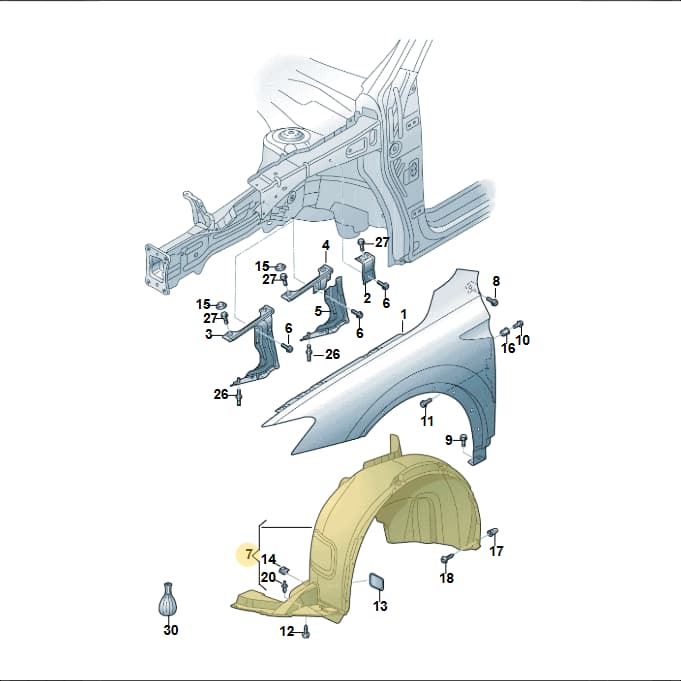

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Wheel Arch Liner, part number 5NA805911AK. This liner protects the engine bay from road debris and water. It is located in the wheel arch area. Genuine OEM wheel arch liners are made from durable materials to withstand harsh conditions and maintain their shape.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 116 × 65 × 42 cm
- Shipping weight
- 1.58 kg
Parts diagram & fitment
1 vehicleWheel Housing Liner Plastic — locate 5NA805911AK Volkswagen Wheel Arch Liner | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(38)
- 1WingLeft5NA821105C
- 1WingLeft5NA821105E
- 1WingLeft5NA821105F
- 1WingLeft5NA821105G
- 1WingRight5NA821106B
- 1WingRight5NA821106D
- 1WingRight5NA821106E
- 1WingLeft5NA821105B
- 2Deformelem 5NA809471A
- 3BraceRight5NA821136B
- 3BraceLeft5NA821135B
- 4Brace 5NA821430A
- 4Brace 5NA821429A
- 5BracketRight5NA821142A
- 5BracketRight5NA821142B
- 5BracketLeft5NA821141A
- 5BracketLeft5NA821141B
- 6Bolt N10009110
- 7LinerLeft5NA805911AE
- 7LinerRight5NA805912AH
- 7PartRight5NA805912AL
- 7PartRight5NA805912AM
- 7LinerRight5NA805912AN
- 7PartLeft5NA805911AG
- 7PartLeft5NA805911AH
- 7PartLeft5NA805911AJ
- 8Bolt N10671701
- 12Bolt N90974701
- 13CoverRight5NA805984A
- 13CoverLeft5NA805983A
- 14Part N90959101
- 15Part N91070601
- 16Part N90817302
- 17Part 6N0809966A
- 17Part WHT004694
- 20Spring Rivet N0385494
- 26Bolt N91139001
- 30Fixing Set 5NA898625
Diagrams & fitment data powered by oemdiagrams.com
5NA805911AK Volkswagen Wheel Arch Liner | Genuine OEM is fitted on: Tiguan 2.0 4Motion 2016-2024.
