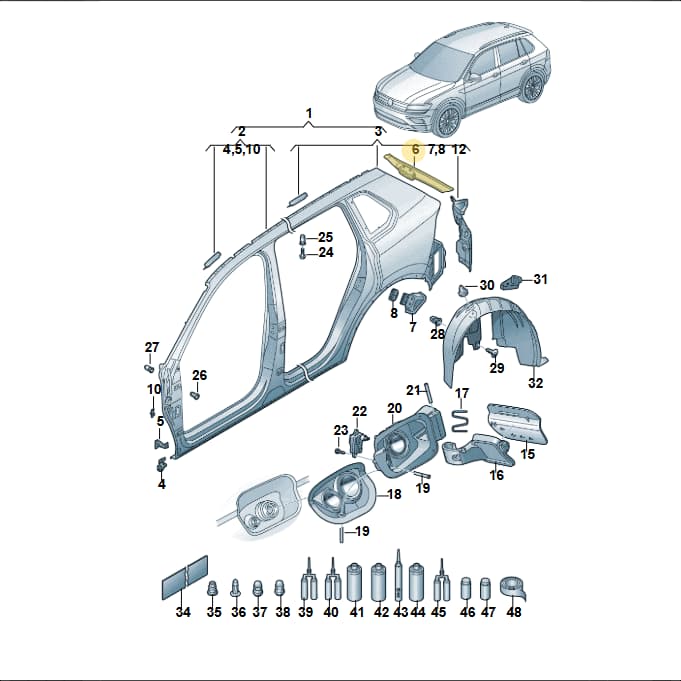

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM SEAT sealing channel, part number 5NA809641B. This sealing channel is located on the rear left side of the vehicle body. It helps to prevent water and wind ingress. The part has dimensions of 0.71 m x 0.185 m x 0.093 m and weighs 0.75 kg. Genuine OEM sealing channels are manufactured with precise tolerances to ensure a perfect fit and effective sealing, maintaining the vehicle's integrity against the elements.
Technical details
- Category
- Seats
- Customs (HS) code
- 87082990
- Manufacturer
- SEAT
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 71 × 18.5 × 9.3 cm
- Shipping weight
- 0.75 kg
Parts diagram & fitment
5 vehiclesSealing Channel — locate 5NA809641B SEAT Sealing Channel | Rear Left in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(43)
- 1Side PartLeft5NH809605
- 1Side PartRight5NH809606
- 1Side PartRight5NL809606C
- 1Side PartLeft5NL809605C
- 4BracketRight5NA810334B
- 4BracketLeft5NA810333B
- 5Clos ElementRight5NA810222
- 5Clos ElementLeft5NA810221
- 6Seal ChannelRight5NA809642B
- 6Seal ChannelLeft5NH809641
- 6Seal ChannelRight5NH809642
- 7ReinforceRight5NL809614
- 7ReinforceLeft5NL809613
- 8Plate 6R0810681
- 9Reinforce 5NA817250
- 9Reinforce 5NA817249
- 10Bracket 5TA810413
- 24Screw 6Q0860137A
- 25Part N91038901
- 26Part N90817302
- 28Part 6N0809966A
- 29Bolt N90974701
- 30Part N10621301
- 32Liner 5NH810969
- 32Liner 5NH810970
- 32Liner 5NL810969A
- 32Liner 5NL810970
- 32Liner 5NL810970A
- 32Liner 5NL810970B
- 32Liner 5NL810969
- 34Panel 000800981A
- 34Panel 000800981B
- 34Panel 000800981C
- 34Panel 000800981
- 35Thread Pin N90965502
- 36Bolt N90889502
- 37Screw WHT000869
- 38Part WHT000868
- 392-pack Adh D180003M2
- 402 Pk Foam DCN506KD1Z3
- 41Inox Spray D007600A1
- 47Part D00940104
- 48Strip DCN486020Z1
Diagrams & fitment data powered by oemdiagrams.com
5NA809641B SEAT Sealing Channel | Rear Left is fitted on: Tiguan 2016-2023; Tiguan 2.0 4Motion 2016-2022; Tiguan 2.0 4Motion 2017-2024; Tiguan 2.0 4Motion 2016-2024; Tarraco FR 2018-2024.
