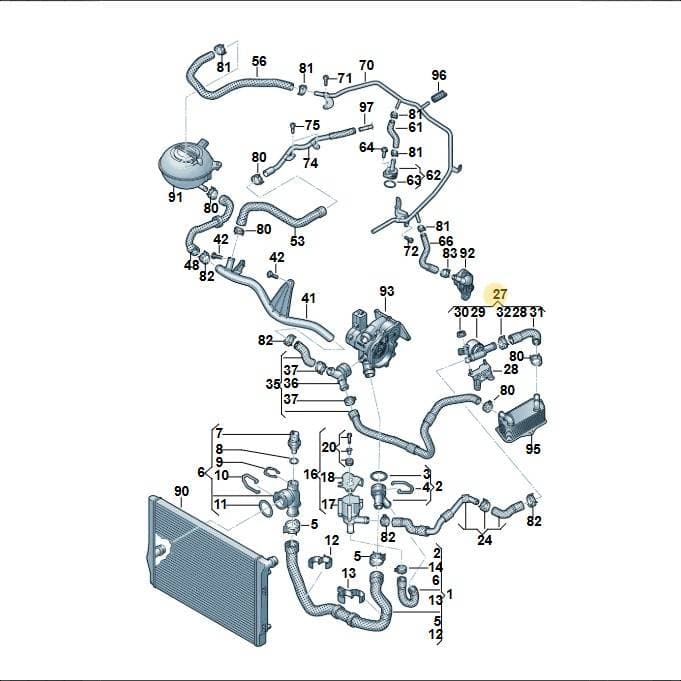

Number 27 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Coolant Hose, part number 5Q0122096K. This hose is part of the engine cooling system. It is located at position 27 in the diagram. Genuine OEM coolant hoses are manufactured to precise specifications to ensure optimal flow and prevent leaks, maintaining critical engine temperature control.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 40093100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 16 × 13 × 6.5 cm
- Shipping weight
- 0.53 kg
Parts diagram & fitment
3 vehiclesCoolant Hose With Valve — locate 5Q0122096K Volkswagen Coolant Hose | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 5Q0122096T — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(32)
- 1Pump 5Q0965561B
- 2Bracket 5Q0121093BA
- 3Fixing Set 5N0198093
- 4Heat Insul 5Q0121653D
- 5Screw N91136101
- 6Valve 4H0121671D
- 8Hose 5Q0122157AB
- 10Hose 5Q0122157CQ
- 10Hose 5Q0122157AK
- 11Coupl Piece 5Q0122291BB
- 12Clamp N90687001
- 13Clamp N90686701
- 15Water Pipe 06K121075P
- 16Bolt N10335206
- 17Bolt N10654902
- 18Hose 06K121049A
- 19Hose 06K121051M
- 20Adapter 06K121143
- 21Seal Ring WHT005440
- 22Screw N10619201
- 28Bracket 5Q0121093D
- 29Valve 5Q0906457B
- 30Collar Nut N01508210
- 31Hose 5Q0121096
- 40Hose 5Q0122101EF
- 41Coupl Piece 1K0122291BE
- 44Coupl Piece 5Q0122291DA
- 45Tpiece 5Q0121087B
- 48Clamp N90687201
- 49Clamp N90687101
- 61Clamp N90770201
- 62Clamp N90686902
Diagrams & fitment data powered by oemdiagrams.com
5Q0122096K Volkswagen Coolant Hose | Genuine OEM is fitted on: Golf Estate 2013-2017; golf 2.0 2016-2020; Sharan BlueMotion 2015-2022.
