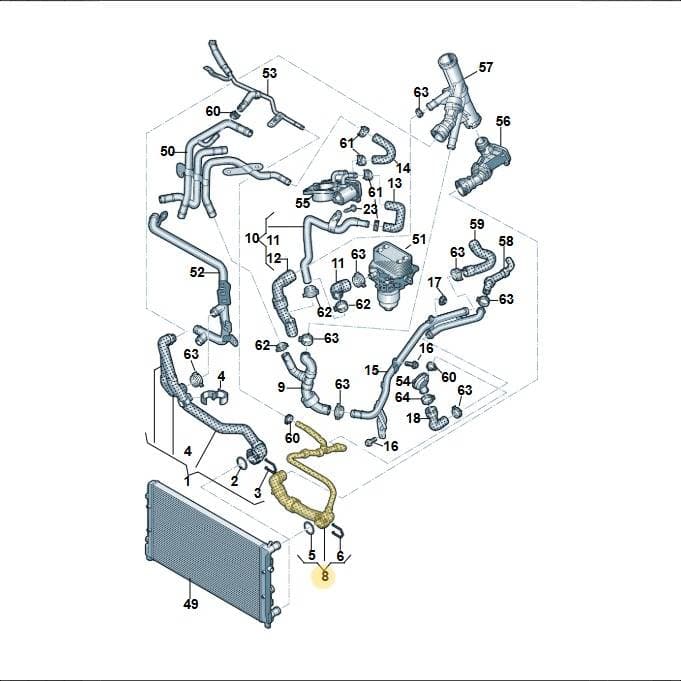

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Coolant Hose, part number 5Q0122101BK. This hose is part of the engine cooling system. It is located at position 8 in the diagram. Genuine OEM coolant hoses are manufactured to precise specifications to ensure optimal flow and prevent leaks, maintaining critical engine temperature control.
Technical details
- Category
- Engine Cooling
- Country of origin
- Romania
- Customs (HS) code
- 40093100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 46.4 × 27.2 × 11 cm
- Shipping weight
- 0.5 kg
Parts diagram & fitment
6 vehiclesCoolant Hose With Quick Release Coupling — locate 5Q0122101BK Volkswagen Coolant Hose | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 5Q0122101BM — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(22)
- 1Hose 5Q0122051AR
- 1Hose 5Q0122051AL
- 2Seal Ring N90765301
- 3Spring 1J0121142
- 4Bracket 5N0121093C
- 8Hose 5Q0122101BJ
- 9Hose 04L122073B
- 10Water Pipe 04L121064C
- 11Hose 04L121058B
- 12Hose 5Q0122058E
- 13Hose 04L121058AA
- 14Hose 04L121058F
- 15Water Pipe 5Q0121070AF
- 16Bolt N10653201
- 17Collar Nut N01508210
- 18Hose 5Q0122157AJ
- 23Bolt N91096701
- 60Clamp N90686701
- 61Clamp N90926401
- 62Clamp N90686902
- 63Clamp N90687001
- 64Clamp N90687101
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
5Q0122101BK Volkswagen Coolant Hose | Genuine OEM is fitted on: Golf 1.4 BlueMotion 2012-2017; Golf Estate 2013-2017; Golf Sportsvan 1.6 2014-2020; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016; Octavia 2012-2017.
