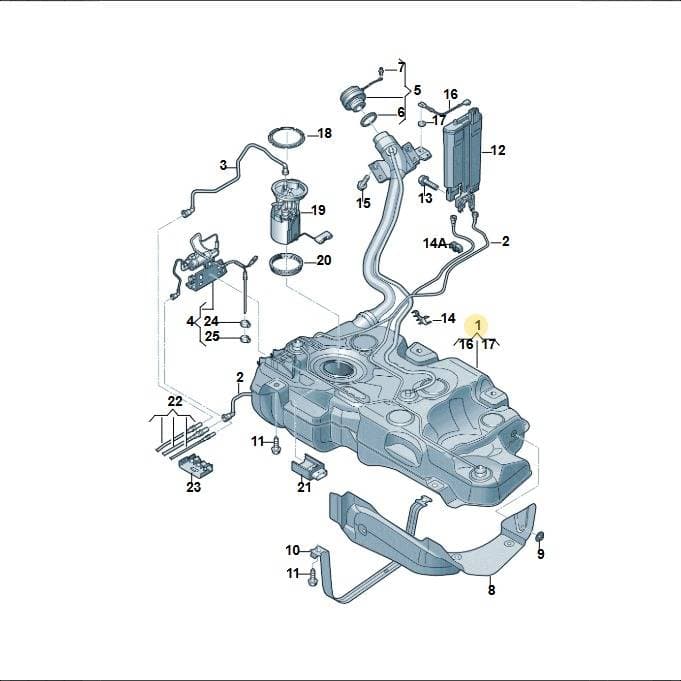

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank Assembly, part number 5Q0201060AT. This assembly houses and delivers fuel to the engine. It is a critical component of the fuel system. The diagram indicates this part is labeled as item 1. Genuine OEM fuel tanks are manufactured to precise specifications to prevent leaks and ensure proper fuel delivery.
Technical details
- Category
- Fuel System
- Country of origin
- Spain
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 142 × 112 × 73 cm
- Shipping weight
- 7.72 kg
Parts diagram & fitment
7 vehiclesFuel Tank — locate 5Q0201060AT Volkswagen Fuel Tank Assembly | Genuine OEM in the official exploded view and explore the surrounding assembly.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(38)
- 1Fuel Tank 5Q0201060BH
- 1Fuel Tank 5Q0201060CR
- 1Fuel Tank 5Q0201060BB
- 1Fuel Tank 5Q0201060CH
- 1Fuel Tank 5Q0201060DB
- 2Line 5Q0201160F
- 2Line 5Q0201160P
- 3Fuel Line 5Q0201293AG
- 3Fuel Line 5Q0201293B
- 3Fuel Line 5Q0201293R
- 4Part 5Q0201607J
- 4Part 5Q0201607K
- 5Part 5Q0201550AA
- 5Part 5Q0201550B
- 5Part 5Q0201550J
- 5Part 5Q0201550M
- 6Seal Ring 1K0201557A
- 7Clip 1J0201250
- 8Heat Sh 5Q0201307P
- 8Heat Sh 5Q0201307L
- 8Heat Sh 5Q0201307N
- 9Part N91068501
- 10Strap 5Q0201656F
- 11Bolt N91229601
- 12Container 5Q0201801
- 13Bolt N10240003
- 14Clip 5Q0201250C
- 14Clip 5Q0201250G
- 14Clip 5Q0201278A
- 14Clip 5Q0201250B
- 14AClip 5Q0201449A
- 14AClip 1H0201449C
- 15Bolt N90693804
- 16Line 1J0201142A
- 17Bush 1J0201048C
- 18Part 1K0201375
- 24Clamp N10203501
- 25Clamp N10198301
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
5Q0201060AT Volkswagen Fuel Tank Assembly | Genuine OEM is fitted on: Golf 1.4 BlueMotion 2012-2017; Golf Estate 2013-2017; Golf 1.4 BlueMotion 2014-2017; Golf Estate 1.4 2014-2017; Audi A3 Sportback 2012-2016; Audi A3 Sportback 2016-2020; Leon ST Stylance 2012-2016.
