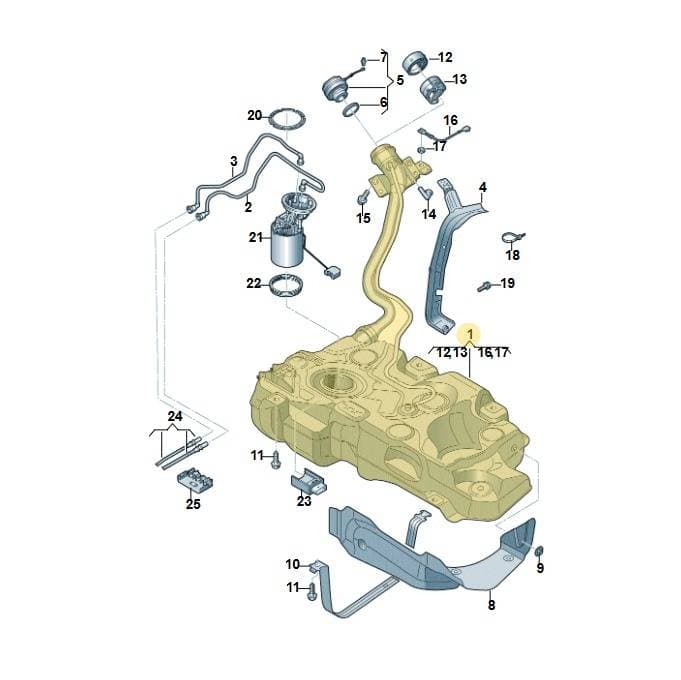

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank Assembly, part number 5Q0201060BC. This assembly houses and delivers fuel to the engine. It is a critical component of the fuel system. The diagram indicates this part is labeled as item 1. Genuine OEM fuel tanks are manufactured to precise specifications to prevent leaks and ensure proper fuel delivery.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 127 × 107 × 75 cm
- Shipping weight
- 9.49 kg
Parts diagram & fitment
4 vehiclesFuel Tank — locate 5Q0201060BC Volkswagen Fuel Tank Assembly | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 5Q0201060BH — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(22)
- 1Container 5Q0201060CK
- 2Fuel Line 5Q0201294F
- 3Fuel Line 5Q0201293M
- 4Prot Plate 5Q0201974
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550AN
- 5Part 7N0201550F
- 5Part 7N0201550G
- 6Seal Ring 1K0201557A
- 7Clip 1J0201250
- 8Heat Sh 5Q0201307N
- 9Part N91068501
- 10Strap 5Q0201656F
- 11Bolt N91229601
- 12Ring 4H0201115A
- 13Ins Piece 4H0201112A
- 14End Piece 895201890
- 15Bolt N90693804
- 16Line 1J0201142A
- 17Bush 1J0201048C
- 18Cable Tie N90937702
- 19Pop Rivet N90994201
- 20Part 1K0201375
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
5Q0201060BC Volkswagen Fuel Tank Assembly | Genuine OEM is fitted on: Golf 1.4 BlueMotion 2014-2017; Golf Estate 1.4 2014-2017; Audi A3 Sportback 2012-2016; Audi A3 Sportback 2016-2020.
