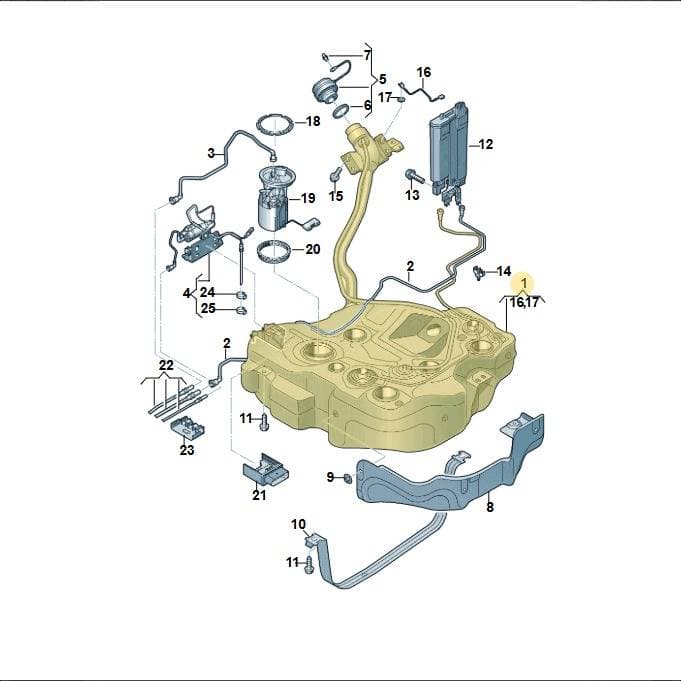

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank Assembly, part number 5Q0201060CE. This assembly houses and delivers fuel to the engine. It is a critical component of the fuel system. The diagram indicates this part is labeled as item 1. Genuine OEM fuel tanks are manufactured to precise specifications to prevent leaks and ensure proper fuel delivery.
Technical details
- Category
- Fuel System
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 130 × 111 × 66 cm
- Shipping weight
- 7.78 kg
Parts diagram & fitment
7 vehiclesFuel Tank — locate 5Q0201060CE Volkswagen Fuel Tank Assembly | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 5Q0201060CR — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(24)
- 1Part 5Q0201060GH
- 1Part 5Q0201060GK
- 2Line 5Q0201160BE
- 2Line 5Q0201160R
- 3Fuel Line 5Q0201293R
- 4Part 5Q0201607J
- 4Part 5Q0201607K
- 5Part 5Q0201550B
- 5Part 5Q0201550J
- 6Seal Ring 1K0201557A
- 7Clip 1J0201250
- 8Heat Sh 5Q0201307Q
- 9Part N91068501
- 10Strap 5Q0201656G
- 11Bolt N91229601
- 12Container 5Q0201801
- 13Bolt N10240003
- 14Clip 5Q0201449A
- 15Bolt N90693804
- 16Line 1J0201142A
- 17Bush 1J0201048C
- 18Part 1K0201375
- 24Clamp N10203501
- 25Clamp N10198301
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
5Q0201060CE Volkswagen Fuel Tank Assembly | Genuine OEM is fitted on: Golf Estate 2013-2017; Golf 1.4 BlueMotion 2014-2017; Golf Estate 1.4 2014-2017; Lamando 2014-2022; Audi A3 Sportback 2012-2016; Audi A3 Sportback 2016-2020; Octavia 2012-2017.
