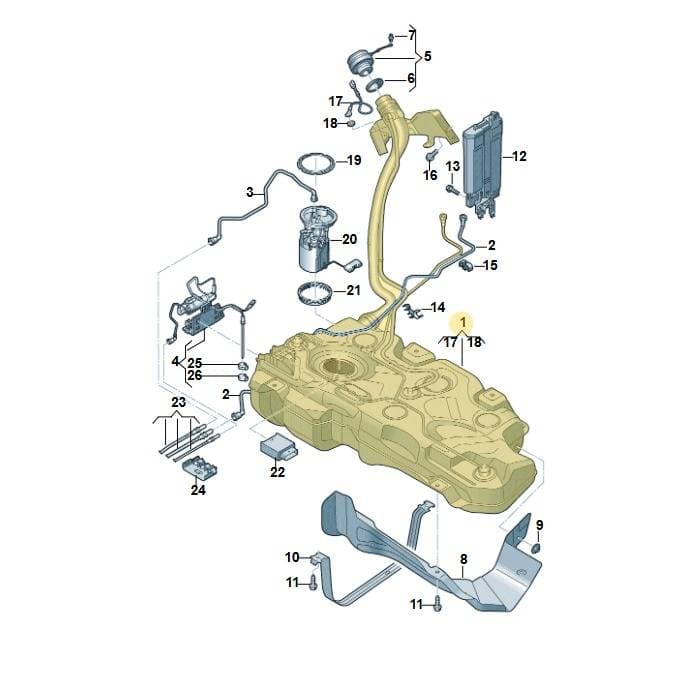

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank Bracket, part number 5Q0201060DD. This bracket secures the fuel tank to the vehicle chassis, ensuring it remains firmly in place. It is typically mounted underneath the vehicle. Ensures secure mounting of the fuel tank. Made from durable materials for long-lasting performance and resistance to corrosion.
Technical details
- Category
- Fuel System
- Country of origin
- Spain
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 127 × 121 × 54 cm
- Shipping weight
- 8.03 kg
Parts diagram & fitment

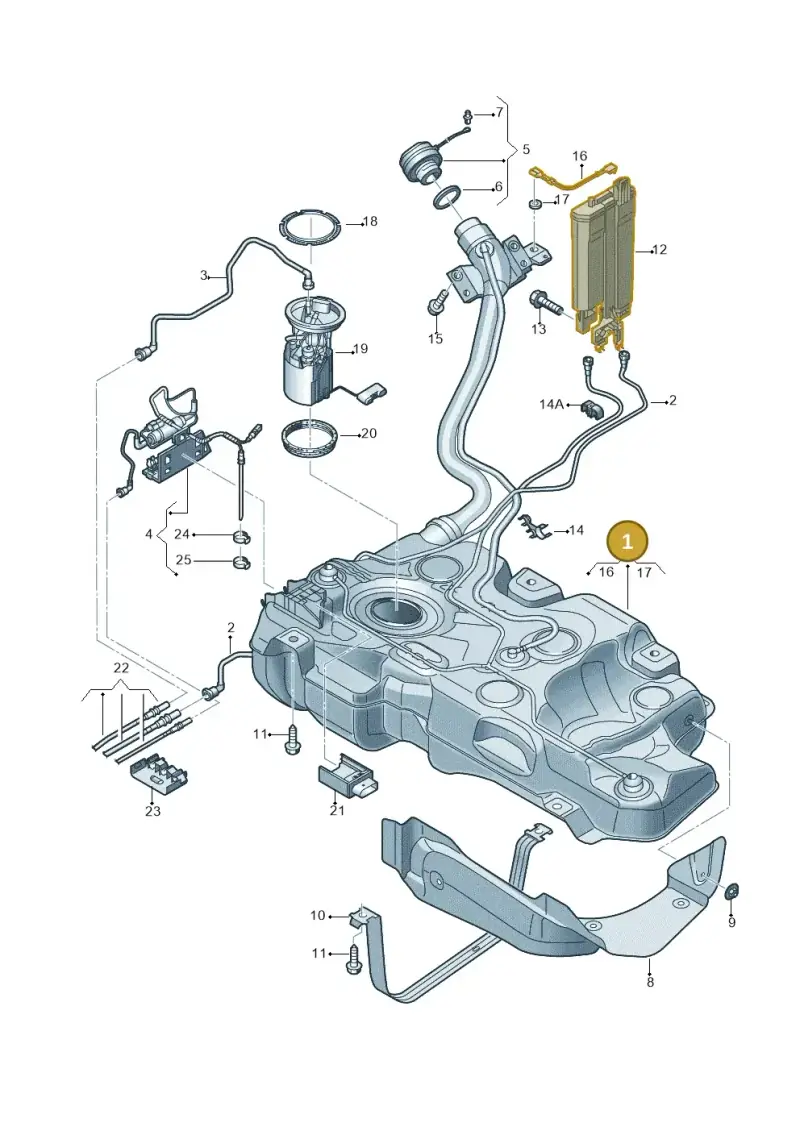

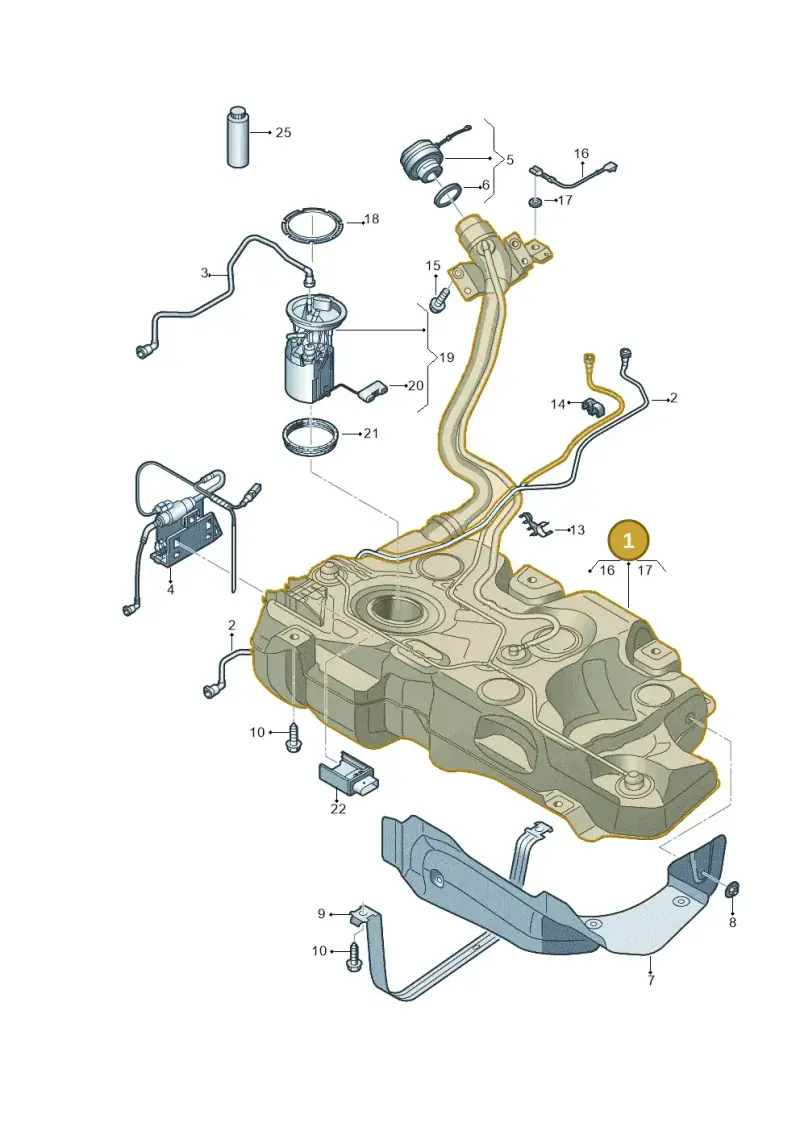

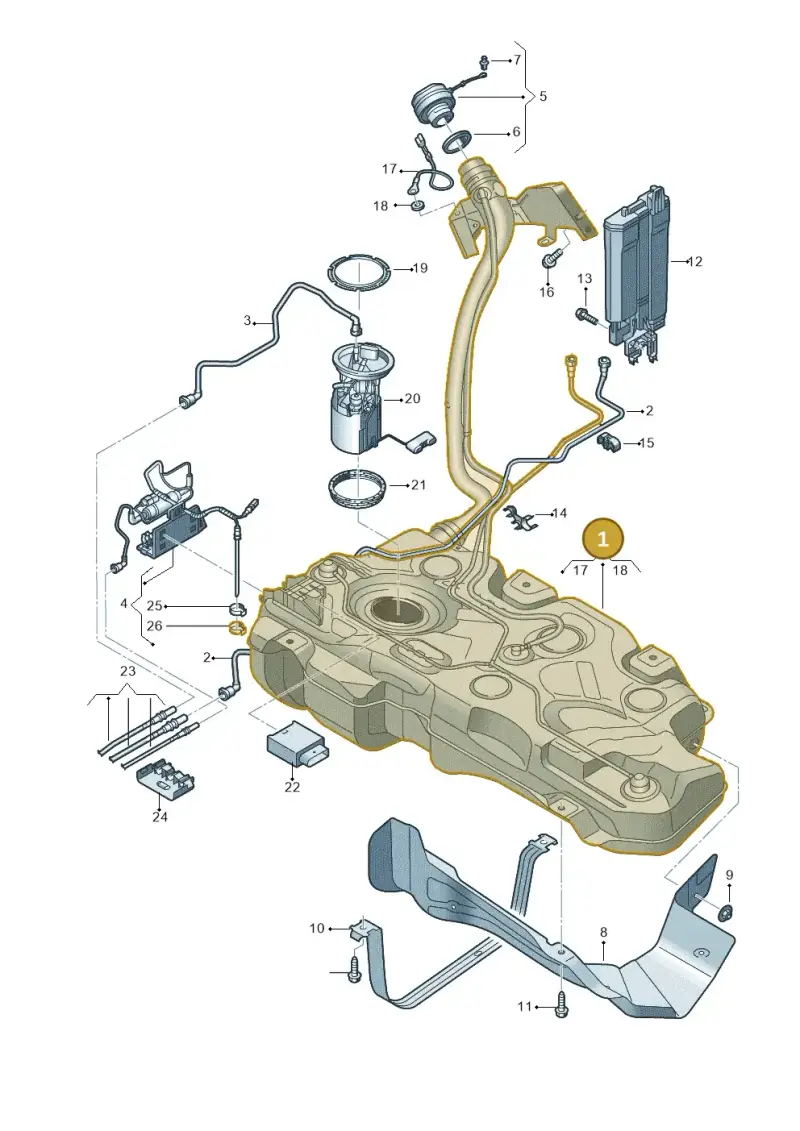

3 vehiclesFuel Tank — locate 5Q0201060DD Volkswagen Fuel Tank Bracket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 5Q0201060DM — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(18)
- 2Line 5Q0201160P
- 3Fuel Line 5Q0201293R
- 4Part 5Q0201607J
- 8Heat Sh 5Q0201307AE
- 8Heat Sh 5Q0201307P
- 9Part N91068501
- 10Strap 5Q0201656F
- 11Bolt N91229601
- 12Container 5Q0201801
- 13Bolt N10240003
- 14Clip 5Q0201250B
- 15Clip 1H0201449C
- 16Bolt N90693804
- 17Line 5Q0201142A
- 18Pop Rivet N91256401
- 19Part 1K0201375
- 25Clamp N10203501
- 26Clamp N10198301
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
5Q0201060DD Volkswagen Fuel Tank Bracket | Genuine OEM is fitted on: T-Roc BlueMotion 2017-2024; Audi Q2 2.0 TDI 2016-2018; Karoq 2017-2022.
