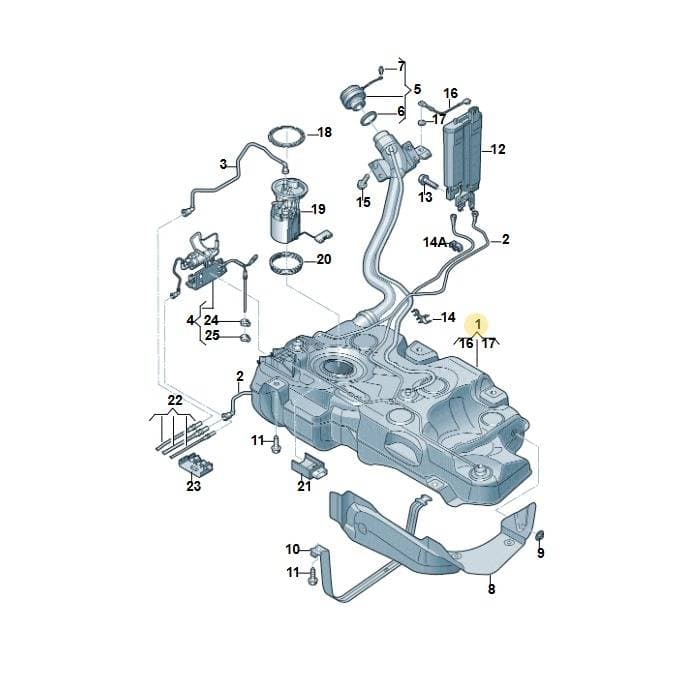

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank, part number 5Q0201060HF. This is the main fuel storage component for the vehicle, designed to hold the gasoline or diesel fuel. It is typically located under the rear of the vehicle. Manufactured to exact specifications for reliable fuel delivery and safety. The fuel tank is a critical component for vehicle operation, ensuring a consistent supply of fuel to the engine.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 141 × 103 × 64 cm
- Shipping weight
- 13.48 kg
Parts diagram & fitment
4 vehiclesFuel Tank — locate 5Q0201060HF Volkswagen Fuel Tank | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(27)
- 1Fuel Tank 5Q0201060BB
- 1Fuel Tank 5Q0201060CH
- 1Fuel Tank 5Q0201060GF
- 2Line 5Q0201160BC
- 2Line 5Q0201160P
- 3Fuel Line 5Q0201293R
- 4Part 5Q0201607J
- 4Part 5Q0201607K
- 5Part 5Q0201550J
- 5Part 5Q0201550M
- 6Seal Ring 1K0201557A
- 7Clip 1J0201250
- 8Heat Sh 5Q0201307AE
- 8Heat Sh 5Q0201307P
- 9Part N91068501
- 10Strap 5Q0201656F
- 11Bolt N91229601
- 12Container 5Q0201801
- 13Bolt N10240003
- 14Clip 5Q0201250B
- 14AClip 1H0201449C
- 15Bolt N90693804
- 16Line 1J0201142A
- 17Bush 1J0201048C
- 18Part 1K0201375
- 24Clamp N10203501
- 25Clamp N10198301
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
5Q0201060HF Volkswagen Fuel Tank | Genuine OEM is fitted on: Golf Sportsvan 1.6 2014-2020; golf 2.0 2016-2020; Leon ST Stylance 2016-2020; Octavia 2017-2020.
