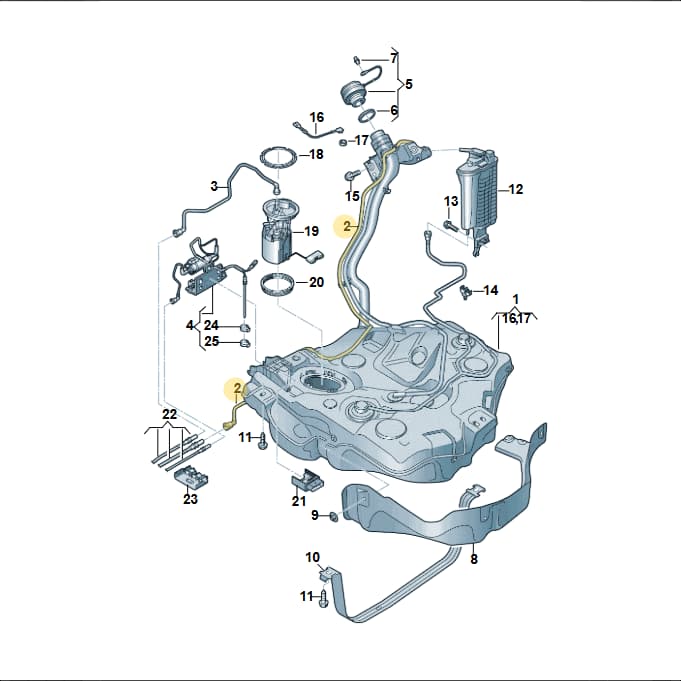

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank Lock Line, part number 5Q0201160BF. This specialized line is an integral component of the fuel tank's locking mechanism, contributing to the secure closure and integrity of the fuel system. It runs along the fuel tank, connecting relevant components. Measuring approximately 1.35 meters in length and weighing about 0.095 kg, this line is engineered for durability and resistance to fuel exposure. Choosing a genuine OEM fuel tank lock line ensures correct routing, proper connection points, and long-term reliability for the fuel system's security features.
Catalogue entry: LINE.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 135 × 38 × 21 cm
- Shipping weight
- 0.1 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
9 vehiclesBreather Line — locate 5Q0201160BF Volkswagen Fuel Tank Lock Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Fuel Tank 5Q0201060GQ
- 1Container 5WA201060AB
- 1Fuel Tank 5WA201060Q
- 2Line 5Q0201160BD
- 3Fuel Line 5Q0201293BB
- 3Fuel Line 5WA201293F
- 4Metering 5Q0201607J
- 4Part 5Q0201607K
- 4Part 5WA201607D
- 8Heat Sh 5Q0201307Q
- 9Clip 1H0201449C
- 9Part N91068501
- 10Strap 5Q0201656G
- 10Strap 5WA201656
- 11Bolt N91229601
- 12Container 5WA201801
- 13Bolt N10240003
- 14Clip 5Q0201250M
- 14Clip 5Q0201449A
- 15Bolt N90693804
- 16Line 1J0201142A
- 17Bush 1J0201048C
- 18Part 1K0201375
- 24Clamp N10203501
- 25Clamp N10056801
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Leon style | 2019- | 2 | 1 | |
| Golf 2.0 BlueMotion | 2019-2024 | 2 | 1 | |
| Octavia | 2019-2024 | 2 | 1 | |
| Audi A3 Sportback | 2019-2021 | 9 | 1 | |
| Octavia | 2017-2020 | 2 | 1 | |
| Audi A3 Sportback | 2016-2020 | 9 | 1 | |
| golf 2.0 | 2016-2020 | 2 | 1 | |
| Leon ST Stylance | 2016-2020 | 2 | 1 | PR:1E5 |
| Golf Sportsvan 1.6 | 2014-2020 | 2 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
5Q0201160BF Volkswagen Fuel Tank Lock Line | Genuine OEM is fitted on: Leon style 2019-; Golf 2.0 BlueMotion 2019-2024; Octavia 2019-2024; Audi A3 Sportback 2019-2021; Octavia 2017-2020; Audi A3 Sportback 2016-2020; golf 2.0 2016-2020; Leon ST Stylance 2016-2020; Golf Sportsvan 1.6 2014-2020.
