Target · Diagram
Find this reference above

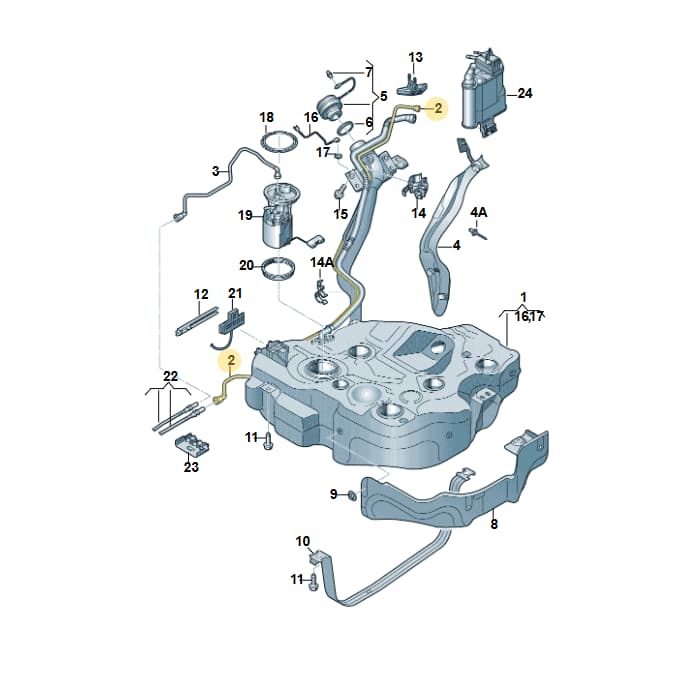

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank Lock Line, part number 5Q0201160E. This line is a critical component of the fuel tank locking mechanism, responsible for transmitting signals or pressure to secure the fuel filler flap or other tank-related functions. It ensures the integrity and security of the fuel system. This line has a length of 1.255 meters, allowing for proper routing within the vehicle's underbody. Choosing a genuine OEM fuel tank line guarantees the correct material composition for fuel and vapor resistance, precise length, and durable connections, preventing leaks and ensuring reliable operation of the locking system.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 125.5 × 37 × 21.5 cm
- Shipping weight
- 0.06 kg
Parts diagram & fitment
7 vehiclesBreather Line — locate 5Q0201160E Volkswagen Fuel Tank Lock Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(24)
- 1Container 5Q0201055CH
- 2Line 5Q0201160AP
- 2Line 5Q0201160AQ
- 3Fuel Line 5Q0201293AM
- 3Fuel Line 5Q0201293K
- 3Fuel Line 5Q0201293AP
- 4Prot Plate 5Q0201974L
- 4APop Rivet N90994201
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550L
- 6Seal Ring 5Q0201557
- 7Clip 1J0201250
- 8Heat Sh 5Q0201307R
- 9Part N91068501
- 10Strap 5Q0201656G
- 11Bolt N91229601
- 12Binder 4A0820199
- 13Bracket 5Q0201519
- 14Clip 5Q0201250J
- 14Clip 5Q0201250F
- 14ABracket N10513801
- 15Bolt N90693804
- 16Line 1J0201142A
- 17Bush 1J0201048C
- 18Part 1K0201375
Diagrams & fitment data powered by oemdiagrams.com
5Q0201160E Volkswagen Fuel Tank Lock Line | Genuine OEM is fitted on: POLO HATCH "ZA"06> 2005-; Golf 1.4 BlueMotion 2012-2017; Golf Estate 2013-2017; Golf 1.4 BlueMotion 2014-2017; Golf Estate 1.4 2014-2017; golf 2.0 2016-2020; Audi A3 Sportback 2012-2016.
