Target · Diagram
Find this reference above

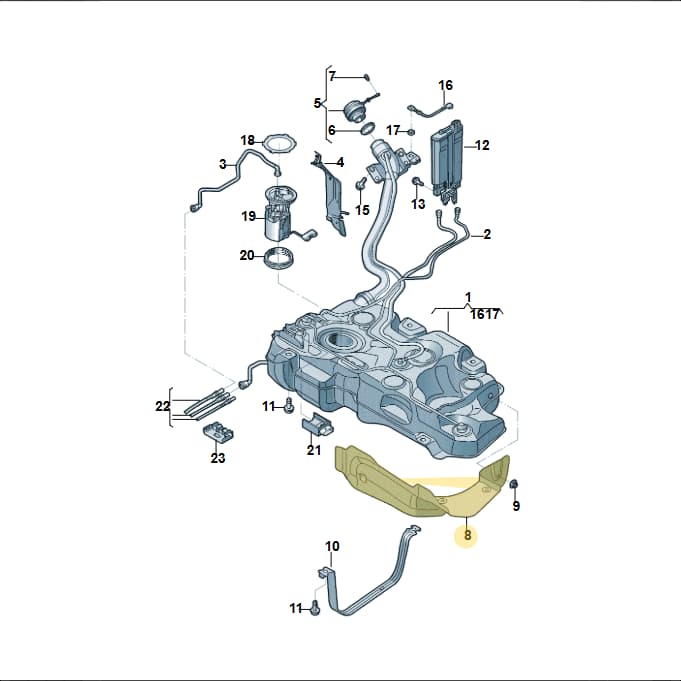

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen heat insulation sheet, part number 5Q0201307AB. This component serves as a heat shield, protecting the fuel tank and its associated components from excessive heat generated by the exhaust system or other underbody sources. It is located beneath the vehicle, surrounding the fuel tank assembly. Genuine OEM heat shields are designed with specific materials and contours to effectively dissipate heat, ensuring the integrity and safety of the fuel system.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 74.2 × 48.5 × 20 cm
- Shipping weight
- 0.38 kg
Parts diagram & fitment
1 vehicleHeat Sh — locate 5Q0201307AB Volkswagen Heat Shield | Fuel Tank in the official exploded view and explore the surrounding assembly.
Parts in this assembly(22)
- 1Part 5Q0201055EB
- 1Container 5Q0201055EM
- 1Container 5Q0201055EN
- 1Container 5Q0201055EP
- 1Container 5Q0201055EQ
- 2Line 5Q0201160AL
- 3Fuel Line 5Q0201293AK
- 4Prot Plate 5Q0201974K
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550L
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550AT
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550K
- 6Seal Ring 5Q0201557
- 7Clip 1J0201250
- 8Guard 5Q0825735A
- 9Part N91068501
- 10Strap 5Q0201656F
- 11Bolt N91229601
- 13Bolt N10240003
- 15Bolt N90693804
- 16Line 1J0201142A
- 17Bush 1J0201048C
- 18Part 1K0201375
Diagrams & fitment data powered by oemdiagrams.com
5Q0201307AB Volkswagen Heat Shield | Fuel Tank is fitted on: Jetta 1.4 2017-2024.
