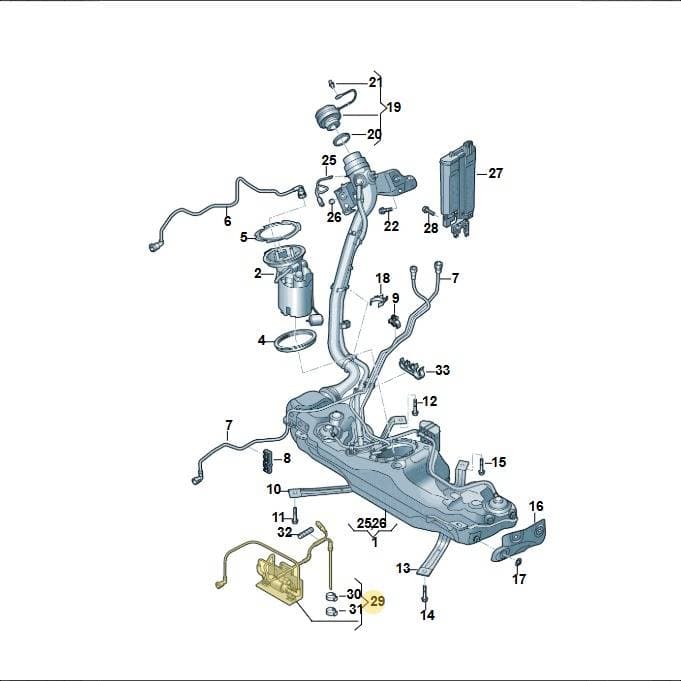

Number 29 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Extraction Unit, part number 5Q0201607AD. This unit extracts fuel and meters it for injection into the engine. It is located at position 29 in the fuel system assembly. The part weighs 0.425 kg and has dimensions of 0.53m x 0.4m x 0.14m. Genuine OEM extraction units are manufactured to exact specifications, ensuring precise fuel metering and reliable engine operation.
Technical details
- Category
- Engine
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 53 × 40 × 14 cm
- Shipping weight
- 0.43 kg
Parts diagram & fitment
5 vehiclesExtraction Unit With Metering Pump — locate 5Q0201607AD Volkswagen Extraction Unit | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(23)
- 1Fuel Tank 5Q0201060HR
- 5Part 1K0201375
- 6Fuel Line 5Q0201293BF
- 7Line 5Q0201160AR
- 8Bracket 4B3616739
- 9Clip 5Q0201250G
- 10Strap 5Q0201655M
- 11Bolt N0195307
- 13Strap 5Q0201656J
- 14Bolt N91229601
- 16Heat Sh 5Q0201307AC
- 17Part N91068501
- 18Clip 5Q0201278A
- 19Part 5Q0201550J
- 20Seal Ring 1K0201557A
- 21Clip 1J0201250
- 25Line 1J0201142A
- 26Bush 1J0201048C
- 27Container 5Q0201801
- 28Bolt N10240003
- 30Clamp N10203501
- 31Clamp N10198301
- 32Spacer 4G0611853
Diagrams & fitment data powered by oemdiagrams.com
5Q0201607AD Volkswagen Extraction Unit | Genuine OEM is fitted on: Golf 2.0 BlueMotion 2019-2024; golf 2.0 2016-2020; Octavia 2019-2024; Octavia 2017-2020; Leon style 2019-.
