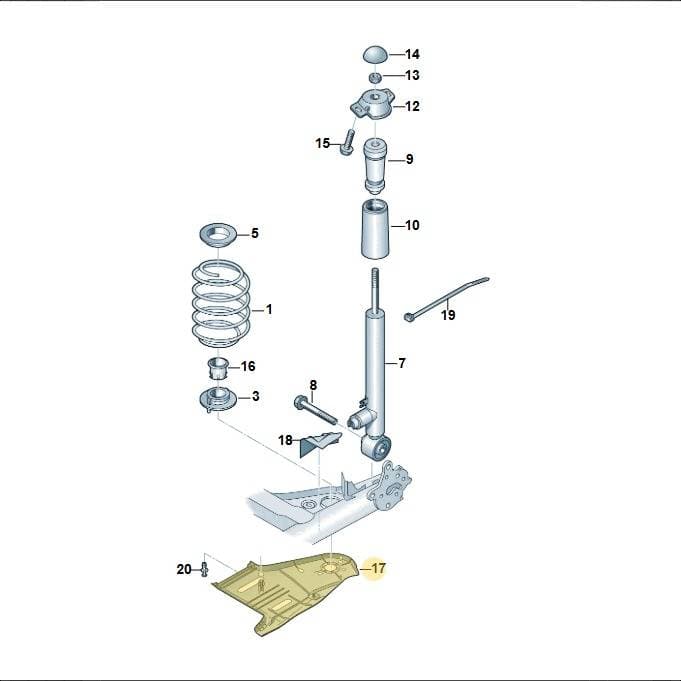

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Rear Axle Bracket, part number 5Q0501560H. This bracket provides mounting points and structural support for rear axle components. It is located on the rear axle assembly. The bracket is made of metal. Genuine OEM parts ensure exact fit and factory-grade durability for critical suspension components.
Technical details
- Category
- Suspension
- Country of origin
- Spain
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 65.5 × 15 × 7.5 cm
- Shipping weight
- 0.2 kg
Parts diagram & fitment
11 vehiclesStone Chip Guard — locate 5Q0501560H Volkswagen Rear Axle Bracket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 5Q0501560J — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(22)
- 1Coilspring 5QM511121AC
- 1Coilspring 5QM511121AD
- 1Coilspring 5QM511121Q
- 1Coilspring 5QM511121R
- 1Coilspring 5QM511121S
- 1Coilspring 5QM511121P
- 3Underlay 5QM512297A
- 5Underlay 5QM512149
- 7Shock Abs 5QM513049AD
- 8Bolt N10628601
- 9Buffer 5Q0511357AA
- 10Pipe 5Q0513425H
- 12Bearing 5Q0513353K
- 13Ut Hexagon Nut Self-locking Hexagon Nut WHT007127
- 14Part 1J0512135A
- 15Bolt N90648402
- 16Clip 5Q0525691D
- 17Stone Chip 5Q0501559K
- 17Stone Chip 5Q0501560K
- 17Stone Chip 5Q0501559H
- 19Spring Rivet 8E0825267
- 19Cable Tie N10647801
Compatible / alternative parts(4)
Diagrams & fitment data powered by oemdiagrams.com
5Q0501560H Volkswagen Rear Axle Bracket | Genuine OEM is fitted on: Taos 1.4 2020-2024; Jetta 1.4 2017-2024; Golf 1.4 BlueMotion 2012-2017; Golf Sportsvan 1.6 2014-2020; golf 2.0 2016-2020; Audi A3 Sportback 2019-2021; Audi A3 Sportback 2012-2016; Audi Q2 2.0 TDI 2016-2018; Leon ST Stylance 2012-2016; Leon ST Stylance 2016-2020; Karoq 2017-2022.
