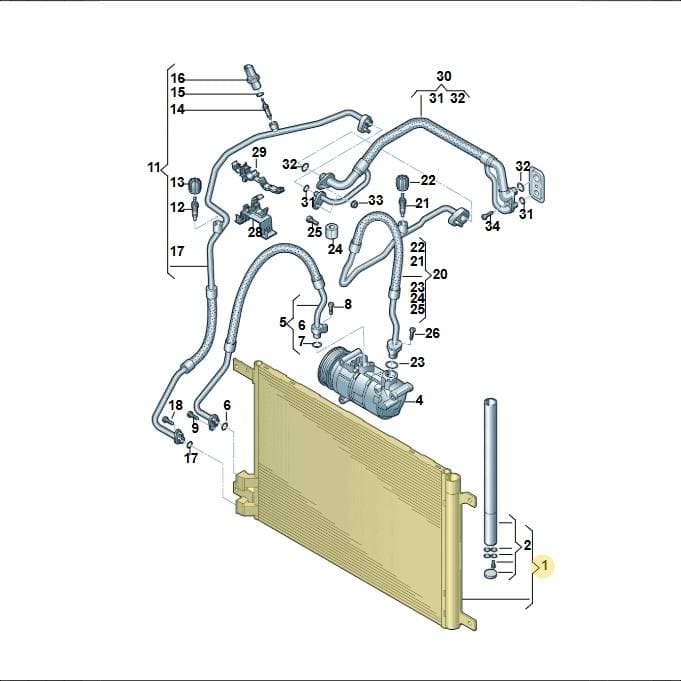

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Condenser, part number 5Q0816411BG. This component is a vital part of the air conditioning system, responsible for dissipating heat from the refrigerant. It is typically located at the front of the vehicle, often in front of the radiator. The condenser's function is to convert the high-pressure, high-temperature refrigerant gas into a high-pressure liquid. Genuine OEM condensers are manufactured to precise specifications, ensuring proper fitment and efficient heat exchange for reliable cooling.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84159000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 72 × 40 × 4.3 cm
- Shipping weight
- 2.3 kg
Parts diagram & fitment
4 vehiclesA C Condenser With Fluid Reservoir — locate 5Q0816411BG Volkswagen Condenser | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 5Q0816411BL — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(37)
- 1Condenser 5Q0816411AR
- 2Part 5Q0298403C
- 2Part 5Q0298403D
- 2Part 5Q0298403F
- 2Part 5Q0298403A
- 5Line 5Q0816721AD
- 5Line 5Q0816721AH
- 5Line 5Q0816721S
- 5Line 5WA816721A
- 5Line 5Q0816721AA
- 6Seal Ring 3D0260749C
- 7Seal Ring 4E0260749A
- 8Screw N10414402
- 9Bolt N10347103
- 11Line 5Q0816741B
- 11Line 5Q0816741C
- 11Line 5Q0816741K
- 12Valve 8E0820855
- 13Part 5Q0816581
- 14Valve 8A0820855AA
- 15Seal Ring 7H0820896
- 16Sender 4H0959126B
- 16Sender 4H0959126C
- 17Seal Ring 4D0260749B
- 20Line 5Q0816743H
- 20Line 5WA816743A
- 20Line 5Q0816743G
- 22Part 5Q0816231
- 23Seal Ring 8E0260749C
- 28Bracket 5Q0820769
- 29Clip 5Q0820774
- 30Part 5Q2816738D
- 30Part 5WC816738A
- 30Part 5WB816738C
- 32Seal Ring 4E0260749B
- 33Collar Nut N01508210
- 34Bolt N91096801
Diagrams & fitment data powered by oemdiagrams.com
5Q0816411BG Volkswagen Condenser | Genuine OEM is fitted on: T-Roc convertible 1.5 2019-2024; Tiguan 2.0 4Motion 2016-2022; T-Roc BlueMotion 2017-2024; Tiguan 2.0 4Motion 2016-2024.
