Product overview
Genuine OEM Volkswagen Bracket, part number 5Q0816803E. This bracket serves as a structural component, providing attachment, support, and positioning for other parts within the assembly. It is designed to integrate seamlessly into the vehicle's HVAC system. The part weighs 4.501 kg and has dimensions of 0.235m x 0.19m x 0.135m. Genuine OEM brackets ensure precise fitment and structural integrity, crucial for the long-term performance of the HVAC system.
Technical details
- Category
- Heating & A/C
- Country of origin
- Poland
- Customs (HS) code
- 84143089
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 23.5 × 19 × 13.5 cm
- Shipping weight
- 4.5 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

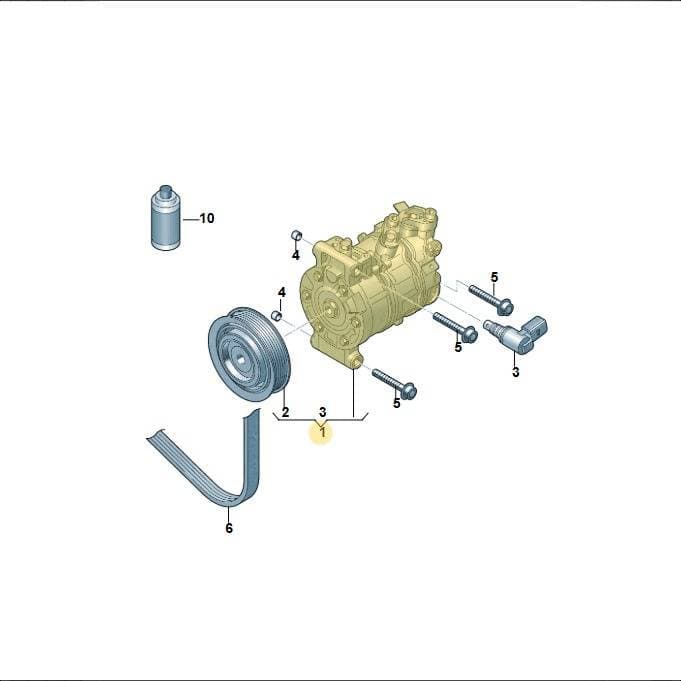

8 vehiclesA C Compressor — locate 5Q0816803E Volkswagen Bracket | Genuine OEM in the official exploded view and explore the surrounding assembly.
This part is marked discontinued by the manufacturer (since 2017-08-01); contact us to check current availability.
Parts in this assembly31
- 1Compressor 1K0820808A
- 1Compressor 1K0820808AX
- 1Compressor 1K0820808F
- 1Compressor 1K0820808FX
- 1Compressor 1K0820808H
- 1Compressor 1K0820859S
- 1Compressor 1K0820859SX
- 1Compressor 1K0820859T
- 1Compressor 1K0820859TX
- 1Compressor 5C0820803G
- 1Compressor 5K0820803J
- 1Compressor 5K0820803JX
- 1Compressor 5K0820803K
- 1Compressor 5K0820803KX
- 1Compressor 5Q0816803
- 1Compressor 5Q0816803D
- 1Compressor 5Q0816803F
- 1Compressor 7N0816803B
- 1Compressor 7N0816803D
- 1Compressor 1K0820808G
- 1Compressor JZW820803X
- 3Part 1K0260839
- 3Part 5Q0260839B
- 3Part 5Q0816193
- 4Sleeve 03L260817
- 5Stud N90984401
- 5Bolt N91204501
- 10Part G052154A2
- 10Part G052300A2
- 10Part G052535M2
- 10Part G055535M2
Vehicle fitment table8
Europe (8)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Beetle | 2016-2019 | 1 | 1 | CYVD,CZDA+ | |
| new beetle cabriolet | 2016-2019 | 1 | 1 | CYVD,CZDA+ | |
| Superb Combi | 2015-2024 | 1 | 1 | KK3 | |
| fabia | 2014-2022 | 1 | 1 | ||
| Scirocco 2.0 | 2014-2017 | 1 | 1 | PR:TA9,TL1+ | |
| jetta | 2014-2017 | 1 | 1 | CYVD+PR:KK3 | |
| Yeti | 2013-2017 | 1 | 1 | ||
| Rapid | 2012-2022 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
5Q0816803E Volkswagen Bracket | Genuine OEM is fitted on: Beetle 2016-2019; new beetle cabriolet 2016-2019; Superb Combi 2015-2024; fabia 2014-2022; Scirocco 2.0 2014-2017; jetta 2014-2017; Yeti 2013-2017; Rapid 2012-2022.
