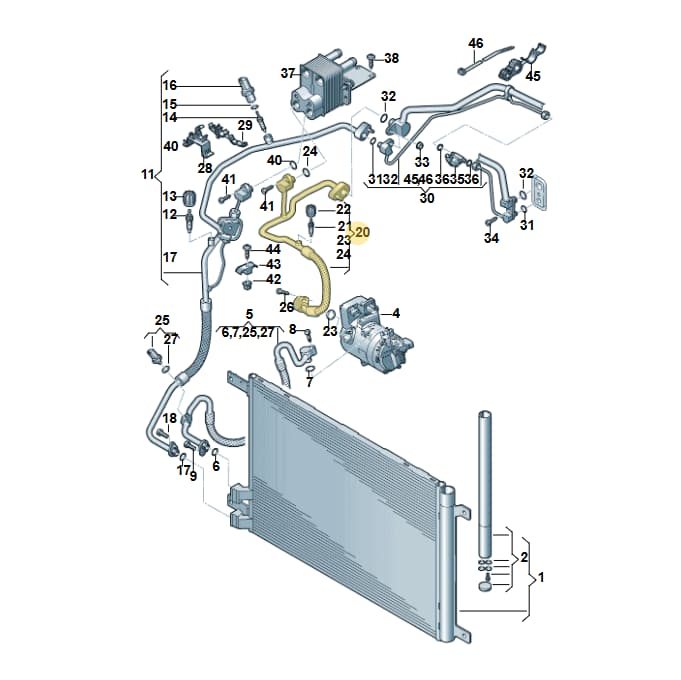

Number 20 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Pipe, part number 5Q0820743L. This pipe is part of the air conditioning system, carrying refrigerant. It is located in the indicated position in the diagram. Genuine OEM parts ensure correct routing geometry and material integrity for leak-free operation.
Technical details
- Category
- Fluids & Filters
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 75 × 42.5 × 16 cm
- Shipping weight
- 0.52 kg
Parts diagram & fitment
6 vehiclesRefrigerant Line — locate 5Q0820743L Volkswagen Refrigerant Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(40)
- 1Condenser 5Q0816411AM
- 1Condenser 5Q0816411BH
- 2Part 5Q0298403B
- 2Part 5Q0298403D
- 2Part 5Q0298403F
- 5Line 5Q0816721E
- 6Seal Ring 3D0260749C
- 7Seal Ring 4E0260749A
- 8Screw N10414402
- 9Bolt N10347103
- 11Line 5Q0816741L
- 11Line 5Q0820741H
- 12Valve 3D0820855A
- 12Valve 8E0820855
- 13Part 5Q0816581
- 13Part 3C0820581
- 14Valve 8A0820855AA
- 15Seal Ring 7H0820896
- 16Pressure 4H0959126A
- 17Seal Ring 4D0260749B
- 20Line 5Q0816743L
- 22Part 5Q0816231
- 22Part 3C0820231
- 23Seal Ring 8E0260749C
- 24Seal Ring 4E0260749B
- 28Bracket 5Q0820769
- 29Clip 5Q0820774
- 30PartLeft5Q1816738M
- 30PartRight5Q2816738C
- 30PartRight5Q2816738G
- 30PartLeft5Q1816738D
- 33Collar Nut N01508210
- 34Bolt N91096801
- 35Valve 8R0260696A
- 37Heat Excha 5Q0820031
- 42Part N90994601
- 43Clip 1J0820774
- 44Screw N10657001
- 45Clip 1J0820774A
- 46Cable Tie N0209022
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
5Q0820743L Volkswagen Refrigerant Pipe | Genuine OEM is fitted on: Golf 1.4 BlueMotion 2012-2017; Passat saloon 2014-2024; golf 2.0 2016-2020; Audi A3 Sportback 2012-2016; Audi A3 Sportback 2016-2020; Superb Combi 2015-2024.
