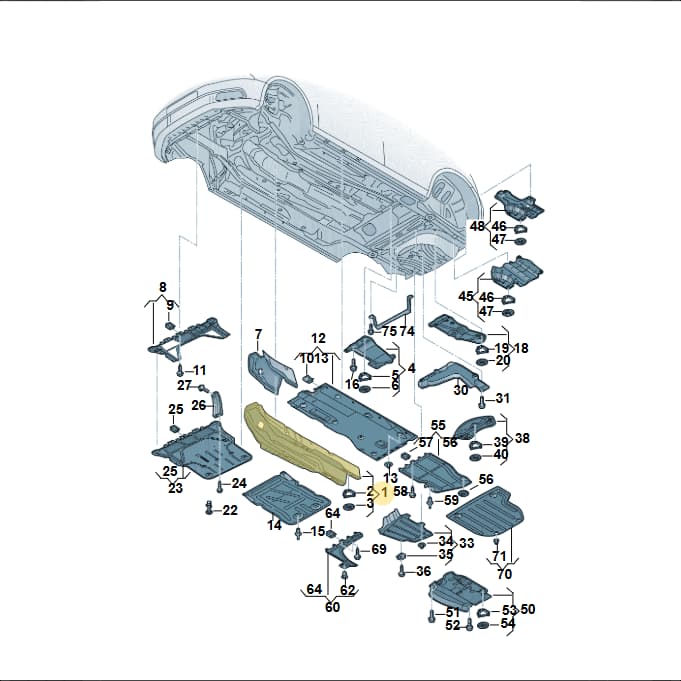

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Tunnel Insulating Sheet, part number 5Q0825661CA. This insulating sheet serves to protect underbody components, particularly those located on the vehicle's tunnel, from heat generated by the drivetrain and from road debris. It is positioned on the underside of the vehicle, along the central tunnel. Constructed from heat-resistant materials, this sheet provides crucial thermal management and protection. Genuine OEM insulating sheets are designed with the exact contours and mounting points to ensure proper fitment and effective thermal barrier performance.
Technical details
- Category
- Electrical & Wiring
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 166 × 50 × 32.5 cm
- Shipping weight
- 1.4 kg
Parts diagram & fitment
8 vehiclesHeat Shield For Tunnel — locate 5Q0825661CA Volkswagen Tunnel Insulating Sheet | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(48)
- 1Heat ShLeft5Q0825661BS
- 1Heat ShRight5Q0825662CA
- 2Washer WHT003386
- 3Washer N90335004
- 3Washer N90796502
- 4Heat Sh 5Q0825729C
- 5Insulation 5WA825236C
- 6Spring Rivet 5WA825267A
- 6Spring Rivet 5WA825267B
- 7Insulation 3Q0825469
- 7Bolt N90974701
- 8InsulationLeft3Q0825235A
- 9Part N90959101
- 10Bolt WHT000729A
- 12TrimRight5WA825202D
- 12TrimRight5WA825202E
- 12TrimRight5WA825202H
- 12TrimLeft5WA825201D
- 12TrimLeft5WA825201E
- 12TrimLeft5WA825201H
- 13Collar Nut WHT000713
- 14Trim 5Q0825230K
- 15Spring Rivet WHT008023
- 16Bolt N0195307
- 18Heat Sh 5Q0825756
- 20Trim 5WA825197D
- 20Trim 5WA825197E
- 23InsulationRight3Q0825236D
- 23UnderrunLeft3Q0825901B
- 23UnderrunRight3Q0825902B
- 23Insulation 5WA825236D
- 26Bracket MtRight5Q0825922A
- 26Bracket MtLeft5Q0825921
- 27Bolt N10574702
- 27Screw N90755902
- 30Guard 5Q0825735B
- 33TrimLeft5H9825205A
- 33TrimRight5H9825206A
- 33TrimLeft5H9825205
- 33TrimRight5H9825206
- 33Trim 5WA825519B
- 34Clip 5WA035611
- 35Washer 6N0129355
- 38Guard 5Q0825710
- 45Heat ShLeft5Q0825711C
- 48Heat ShLeft5Q0825711B
- 50Heat ShRight5Q0825712D
- 51Bolt N91079301
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
5Q0825661CA Volkswagen Tunnel Insulating Sheet | Genuine OEM is fitted on: Golf 2.0 BlueMotion 2019-2024; Taos 1.4 2020-2024; Jetta 1.4 2017-2024; Golf Sportsvan 1.6 2014-2020; Octavia 2019-2024; Octavia 2017-2020; Leon style 2019-; Formentor TSI CUPRA 2020-.
