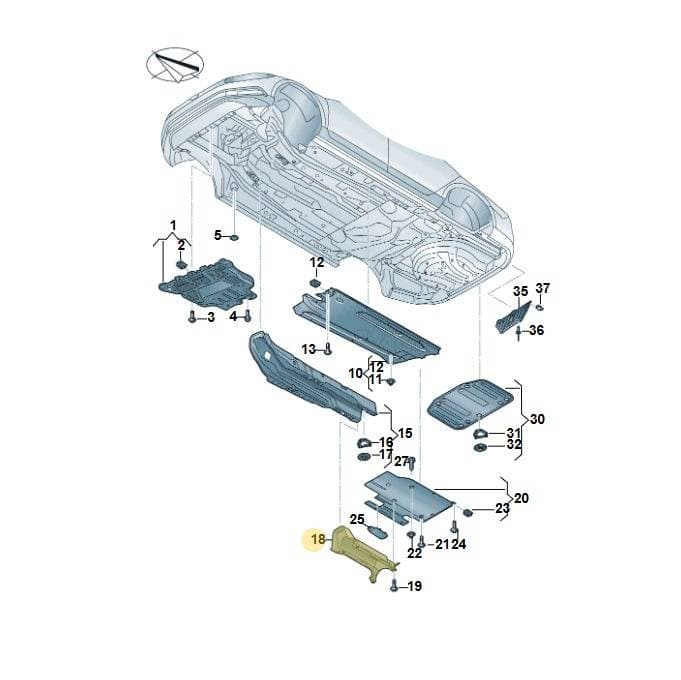

Number 18 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Underbody Heat Shield, part number 5Q0825755D. This heat shield protects underbody components from excessive heat generated by drivetrain or exhaust systems. It is mounted on the underside of the vehicle. Made from durable, heat-resistant material.
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 70 × 40 × 22 cm
- Shipping weight
- 0.62 kg
Parts diagram & fitment
3 vehiclesHeat Shield — locate 5Q0825755D Volkswagen Underbody Heat Shield | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 5Q0825755E — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(27)
- 1Insulation 3Q0825236C
- 2Part N90959101
- 3Bolt N90974701
- 4Bolt WHT000729A
- 5Cover WHT007060
- 10TrimRight3Q0825202B
- 10TrimLeft3Q0825201B
- 11Collar Nut WHT000713
- 15Heat Sh 5Q0825661BK
- 15Heat Sh 5Q0825661T
- 16Washer WHT003386
- 17Washer N90335004
- 18Heat Sh 5Q0825755E
- 19Bolt N91166401
- 20TrimRight3Q0825102D
- 20TrimRight3Q0825102F
- 20TrimLeft3Q0825101C
- 20TrimLeft3Q0825101E
- 22Part N10772801
- 25Bungs 3Q0825967
- 27Bolt N91069802
- 30Heat Sh 3Q0825701
- 31Washer WHT007663
- 32Washer N90796502
- 35Heat Sh 3G0825707C
- 36Pop Rivet N90346302
- 37Clip 1H0861311
Diagrams & fitment data powered by oemdiagrams.com
5Q0825755D Volkswagen Underbody Heat Shield | Genuine OEM is fitted on: Passat saloon 2014-2024; golf 2.0 2016-2020; Audi A3 Sportback 2016-2020.
