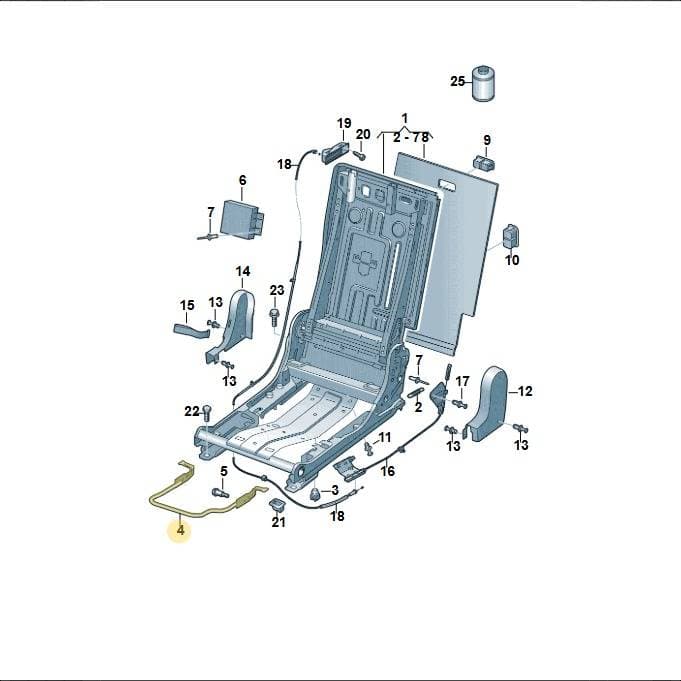

Number 4 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hebel, part number 5Q0885722A. This lever mechanism is part of the seat adjustment system. It is located in the seat assembly. Manufactured to exact specifications for reliable operation.
Technical details
- Category
- Electrical & Wiring
- Customs (HS) code
- 94019080
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 28.8 × 33 × 5 cm
- Shipping weight
- 0.38 kg
Parts diagram & fitment
3 vehiclesLever F Seat Fore+afr Adjust — locate 5Q0885722A Volkswagen Hebel | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 5Q0885722B — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(24)
- 1AFrame 510885062K
- 1AFrame 510885062L
- 1AFrame 510885062N
- 2Spring 5Q0885157A
- 4Weight 7N0883557
- 5Pop Rivet N91121701
- 6Bolt WHT002796B
- 7Spring Rivet 4D0863788
- 7Clip N90911301
- 8Trim 8V0886747
- 9Trim 510885754A
- 10Part 510885933B
- 11Spring Rivet N90536901
- 12Loop 510885093F
- 13Part 510885740
- 14Loop 510885093D
- 16Seat Well 5Q0885322B
- 17Lever 5Q0885722
- 18Bolt N91220301
- 19Buffer 5Q0885620
- 21Bolt N91232301
- 22Bolt N91196402
- 23Grommet 5G0886373
- 25Adhesive D001210M2
Diagrams & fitment data powered by oemdiagrams.com
5Q0885722A Volkswagen Hebel | Genuine OEM is fitted on: Golf Sportsvan 1.6 2014-2020; Tiguan 2.0 4Motion 2016-2022; Tiguan 2.0 4Motion 2016-2024.
