Product overview
Genuine OEM Volkswagen Heat Shield, part number 5Q1614321G. This heat shield is designed to protect sensitive components from high temperatures generated during operation, particularly in the vicinity of the brake system. It is positioned to deflect heat away from critical parts. The shield has dimensions of 280mm in length, 250mm in width, and 53mm in height. Genuine OEM heat shields are made from materials and formed to exact specifications to provide optimal thermal protection and durability.
Catalogue entry: HEAT SH. lhd.
Technical details
- Category
- Ignition
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 28 × 25 × 5.3 cm
- Shipping weight
- 0.33 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- only withL0L
- only withT2C
- only withT3J
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

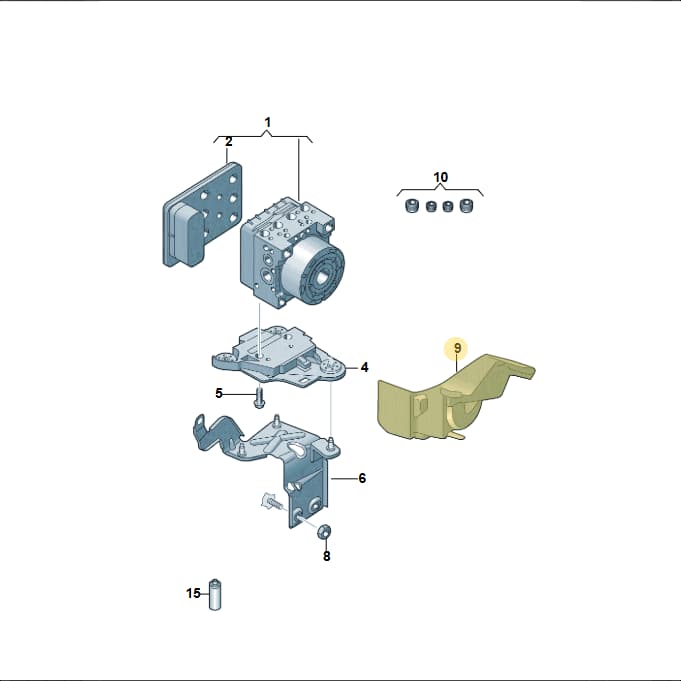

23 vehiclesHeat Shield — locate 5Q1614321G Volkswagen Heat Shield | Brake System Component in the official exploded view and explore the surrounding assembly.
Parts in this assembly19
- 1Absunit 3WA614517AG
- 1Absunit 3WA614517AH
- 1Absunit 3WA614517AJ
- 1Absunit 3WA614517AK
- 1Absunit 3WA614517AN
- 2Control Unit 3WA907379AG
- 2Control Unit 3WA907379AH
- 2Control Unit 3WA907379AJ
- 2Control Unit 3WA907379AK
- 2Control Unit 3WA907379AN
- 3Bracket 3WA614235B
- 3Bracket 3WA614235C
- 4Bolt N10405604
- 5BracketLeft5Q1614235L
- 5BracketLeft5Q1614235M
- 5BracketRight5Q2614235L
- 6Collar Nut N90229104
- 7Heat Sh 3WA614321
- 8Ut Hexagon Nut Self-locking Hexagon Nut N10737001
Vehicle fitment table23
Europe (20)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Kodiaq | 2024- | 7 | 1 | L0L | |
| passat estate | 2023- | 7 | 1 | PR:T2C,T3J+ | |
| Tiguan 2.0 | 2023- | 7 | 1 | PR:T3J+L0L | L0L |
| Superb Combi | 2023- | 7 | 1 | PR:T2C,T3J+ | |
| Formentor TSI CUPRA | 2020- | 9 | 1 | ||
| Leon style | 2019- | 7, 9 | 1 | ||
| Golf 2.0 BlueMotion | 2019-2024 | 9 | 1 | PR:T2C,T3J, | |
| Octavia | 2019-2024 | 9 | 1 | ||
| Audi A3 Sportback | 2019-2021 | 9 | 1 | ||
| Tarraco FR | 2018-2024 | 9 | 1 | PR:T2C,T3J+ | |
| Audi Q3 quattro | 2018-2019 | 9 | 1 | ||
| T-Roc BlueMotion | 2017-2024 | 9 | 1 | PR:0MU+1AS, | 1A |
| Tiguan 2.0 4Motion | 2017-2024 | 9 | 1 | ||
| Arteon | 2017-2023 | 9 | 1 | PR:7ZS+T3W+ | |
| Karoq | 2017-2022 | 9 | 1 | ||
| Tiguan 2.0 4Motion | 2016-2024 | 9 | 1 | PR:T3W+L0L | L0L |
| Kodiaq | 2016-2024 | 9 | 1 | ||
| Audi Q2 2.0 TDI | 2016-2018 | 9 | 1 | ||
| Superb Combi | 2015-2024 | 9 | 1 | ||
| Passat saloon | 2014-2024 | 9 | 1 | PR:7ZD+T3W+ |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Atlas Cross Sport | 2023- | 9 | 1 | ||
| Atlas | 2023-2024 | 9 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 578 platform | 7 | 1 | L0L |
Diagrams & fitment data powered by oemdiagrams.com
5Q1614321G Volkswagen Heat Shield | Brake System Component is fitted on: Kodiaq 2024-; passat estate 2023-; Tiguan 2.0 2023-; Superb Combi 2023-; Formentor TSI CUPRA 2020-; Leon style 2019-; Golf 2.0 BlueMotion 2019-2024; Octavia 2019-2024; Audi A3 Sportback 2019-2021; Tarraco FR 2018-2024; Audi Q3 quattro 2018-2019; T-Roc BlueMotion 2017-2024; Tiguan 2.0 4Motion 2017-2024; Arteon 2017-2023; Karoq 2017-2022; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024; Audi Q2 2.0 TDI 2016-2018; Superb Combi 2015-2024; Passat saloon 2014-2024; Atlas Cross Sport 2023-; Atlas 2023-2024; 578 platform.
