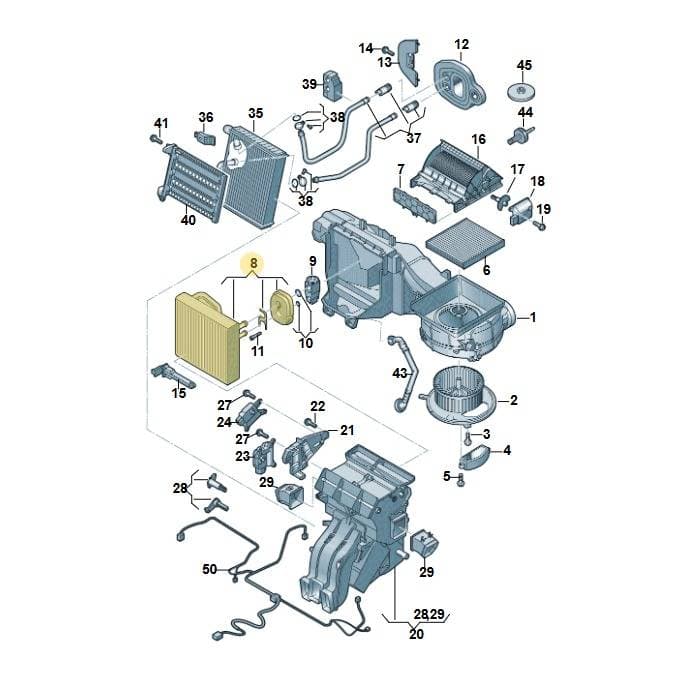

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Evaporator Housing, part number 5Q1820102. This housing contains the evaporator for the air conditioning system. It is located at position 8 in the diagram. The housing is made of plastic and weighs approximately 1.215 kg. Genuine OEM housings are manufactured to precise specifications for optimal performance and durability.
Technical details
- Category
- Heating & A/C
- Country of origin
- Czech Republic
- Customs (HS) code
- 84189910
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 27 × 25.5 × 15 cm
- Shipping weight
- 1.22 kg
Parts diagram & fitment
6 vehiclesEvaporator — locate 5Q1820102 Volkswagen Evaporator Housing | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Superseded by 5Q1820102B — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(48)
- 1HousingRight5Q2820007
- 1HousingRight5Q2820007C
- 1HousingLeft5Q1820007
- 1HousingLeft5Q1820007C
- 2BlowerRight5Q2819021A
- 2BlowerLeft5Q1819021C
- 2BlowerLeft5Q1819021G
- 3Screw N10424102
- 4Control Unit 5Q0907521C
- 6Filter 5Q0819644A
- 6Dust Filt 5Q0819653
- 6Od Filter 5Q0819669
- 6Part JZW819653G
- 7Cover 5Q0819422
- 8EvaporatorRight5Q2816100
- 8EvaporatorRight5Q2820102
- 8EvaporatorLeft5Q1816100
- 9Expans Val 5Q0816679B
- 9Expans Val 5Q0820679E
- 10Seals 5Q0898850
- 11Bolt N90967701
- 12Seal 5Q0820061
- 13BracketRight5Q2820892
- 13BracketLeft5Q1820892
- 15Temperature Sensor 5Q0907543A
- 16Int Duct 5Q0898304A
- 17Lever 5Q0819841
- 18Motor 5Q0907511
- 20HousingLeft5Q1820353C
- 20HousingRight5Q2820353B
- 20HousingRight5Q2820353C
- 20HousingLeft5Q1820353B
- 21Adjuster 5Q0898141A
- 23Part 5Q0898511
- 24Servomotor 5Q0907511A
- 28Lever 5Q0898001
- 29Vent 5Q0898147
- 35Heat Exch 5Q0819031A
- 36Bracket 4F0820536C
- 37Water PipeRight5Q2819857
- 37Water PipeLeft5Q1819857
- 38Fixing Set 5Q0898400
- 39SealRight5Q2819861
- 39SealLeft5Q1819861
- 40Heat Element 5Q0963235B
- 43HoseRight5Q2820127
- 43HoseLeft5Q1820127
- 44Bracket 5Q0819133
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
5Q1820102 Volkswagen Evaporator Housing | Genuine OEM is fitted on: Golf 1.4 BlueMotion 2012-2017; Golf Estate 2013-2017; Passat saloon 2014-2024; Octavia 2012-2017; Superb Combi 2015-2024; Audi TTS Coupe 2.0 2014-2023.
